SmartAXIS Touch User’s Manual 17-13
4 Using the Data
17
Preventive Maintenance Function
12

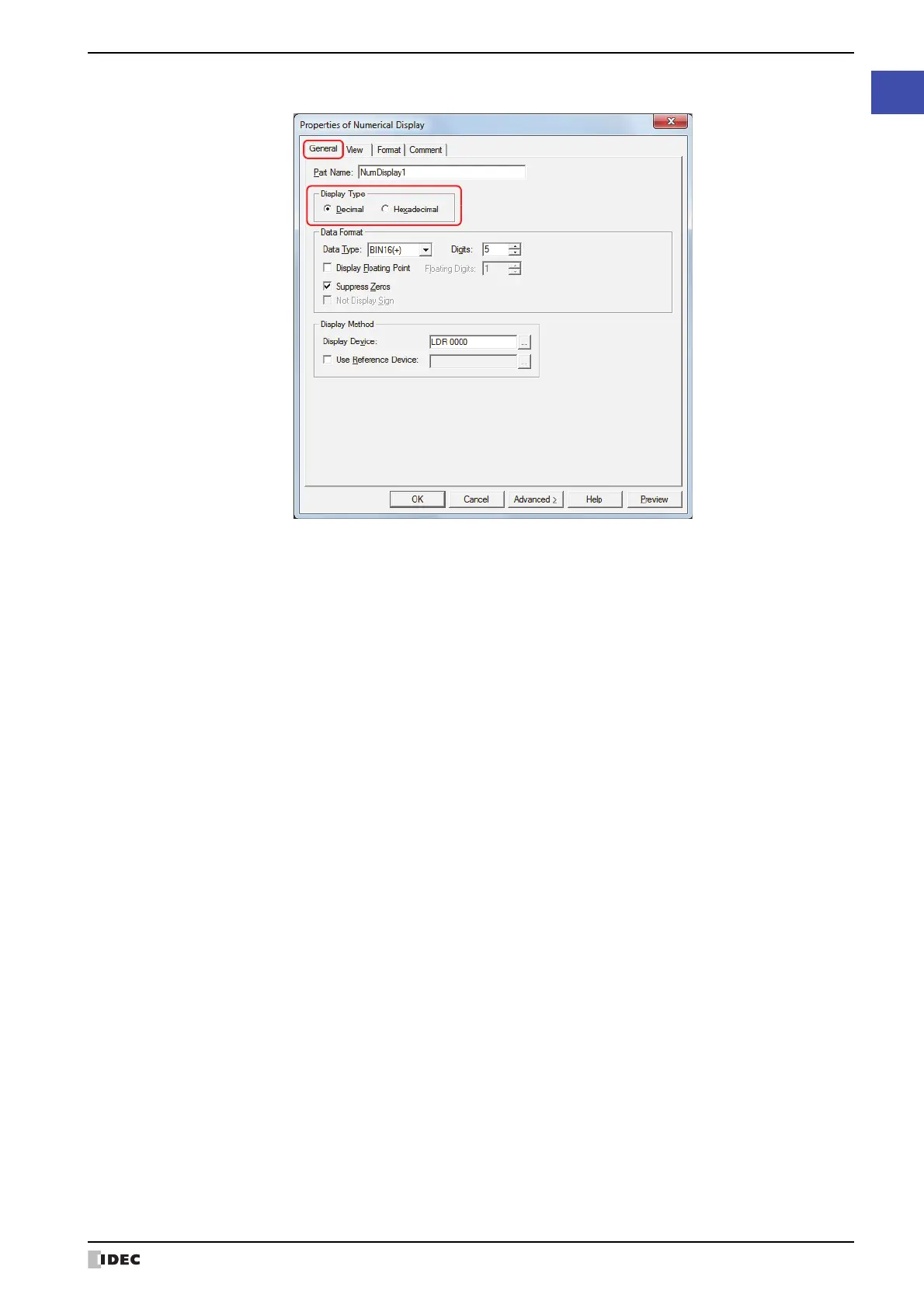

On the General tab, under Display Type, click Decimal.
13
Under Data Format, in Data Type, select the data type for the value to display.
Select the same data type as the data type selected on the Operation Count tab in the Preventive Maintenance
settings Individual Settings dialog box.
14
Specify Digits for the value to display.
The digits that can be set varies based on the display type or data type.
15
Under Display Method, in Display Device, specify the destination device for the counted operation count.
Select the same device as the device configured with Measure Operation Count on the Operation Count tab in
the Preventive Maintenance settings Individual Settings dialog box.
16
Click OK.
The properties dialog box closes.
This concludes the configuration to display the counted operation count on a Numerical Display.
