SmartAXIS Touch User’s Manual 18-5
2 Recipe Function Configuration Procedure
18
Recipe Function
5 Enter the name for the Recipe function in Recipe Name.
The maximum number is 40 characters.
6 Specify the destination device for the Recipe values in Top Device.
To read values of devices and save them as a recipe file, specify the source device of the values.
Click to display the Device Address Settings dialog box.
For the device address configuration procedure, refer to Chapter 2 “5.1 Device Address Settings” on page 2-62.
The specified device addresses are configured sequentially from the number 1 in Data List on the Data tab.
7 Select the data type for the values to write with Data Type.
To read values of devices and save them as a recipe file, specify the type of data for the read values.
8 With Number of Data, specify the number of destination devices starting with the device address configured by Top
Device.
To read values of devices and save them as a recipe file, specify the number of source devices.
The sequential device addresses from the starting address for the number of configured devices is displayed in Data
List on the Data tab.
The amount of data that can be set varies based on the data type. When BIN16 (+), BIN16 (+/-), or BCD4 is
selected for Data Type, up to 8,192 items of data can be configured. When BIN32 (+), BIN32 (+/-), or BCD8 is
selected, up to 4,096 items of data can be configured.
9 With Display Type, select the display type for Data to configure in Data List on the Data tab.
To save data to a recipe file, the display type is decimal for all.
10

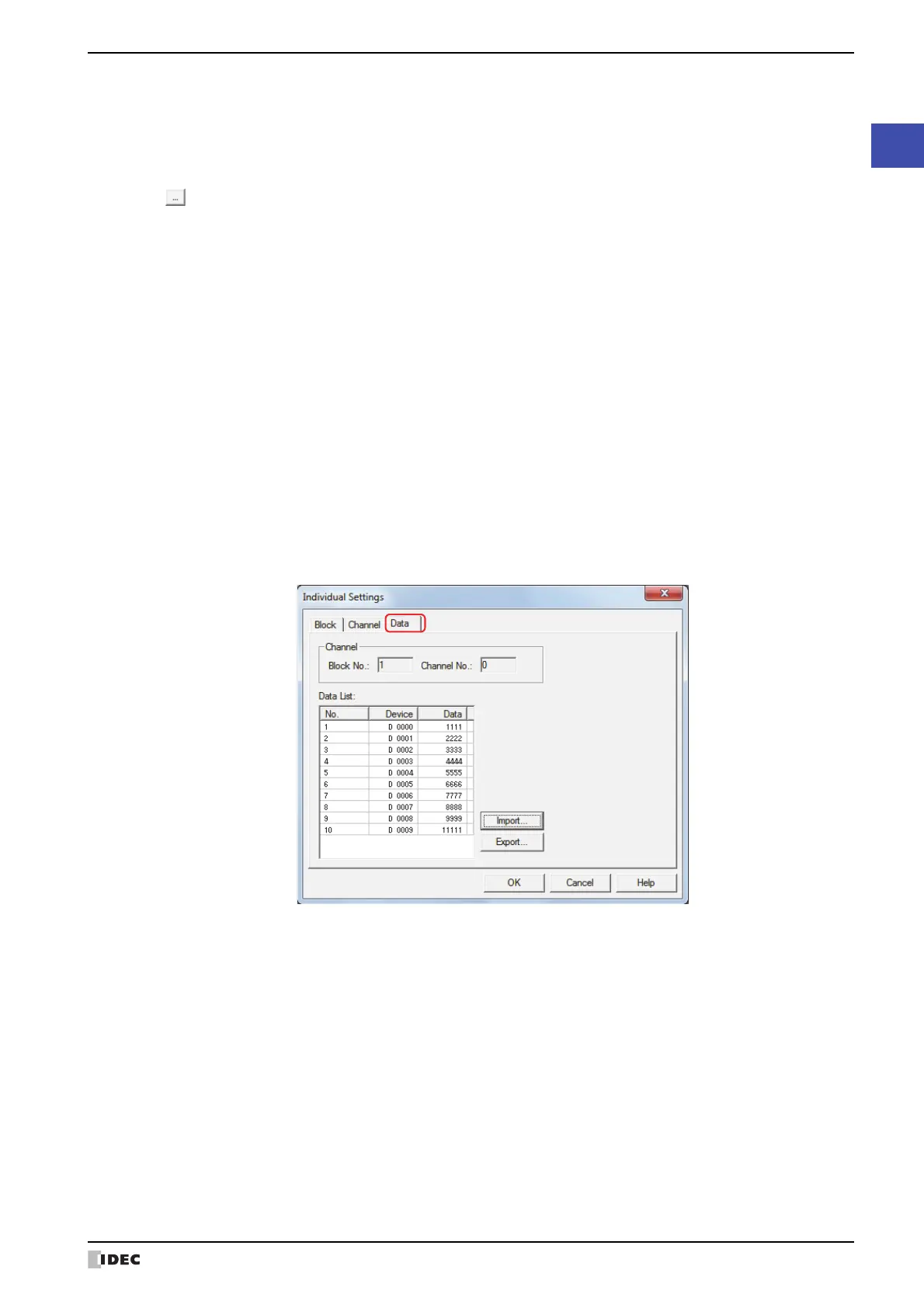

Click the Data tab.
The data for the recipe in the amount specified by Number of Data on the Channel tab is configured in Data List.
In Device, the devices are sequentially configured starting from the device address specified by Top Device.
11
Double click the data cell for each number in Data List to enter the value to write to the device.
The value of device that can be configured varies based on Data Type and Display Type configured on the
Channel tab.
When Read-only is selected under Trigger Setting on the Block tab, entering values of devices is unnecessary.
To Next Page
