IDEC SmartAXIS Touch FT1A Series

SmartAXIS Touch User’s Manual 21-19
2 Security Function Configuration Procedure
21
User Accounts and the Security Function

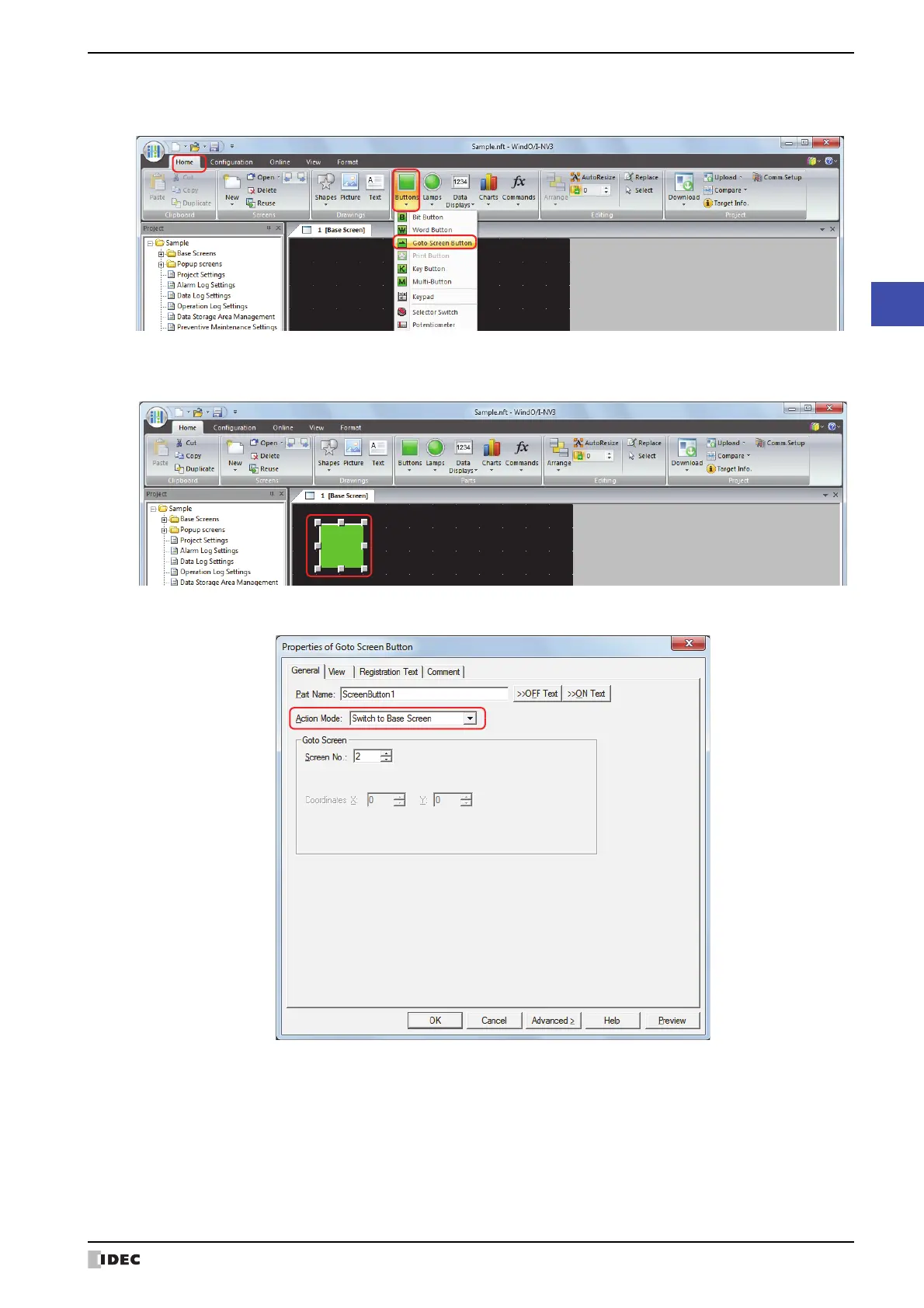

2 Place a Goto Screen Button on Base Screen 1.
On the Home tab, in the Parts group, click Buttons, and then click Goto Screen Button.
3 Click a point on the edit screen where you want to place the Goto Screen Button.
4 Double-click the dropped Goto Screen Button and the Properties dialog box is displayed.
5 Select Switch to Base Screen for Action Mode.
6 Specify the screen number of the Base Screen to switch to with Screen No. under Goto Screen.
2 is specified here.
7 Click OK.
The Properties of Goto Screen Button dialog box closes.
