2 Security Function Configuration Procedure
21-20 SmartAXIS Touch User’s Manual

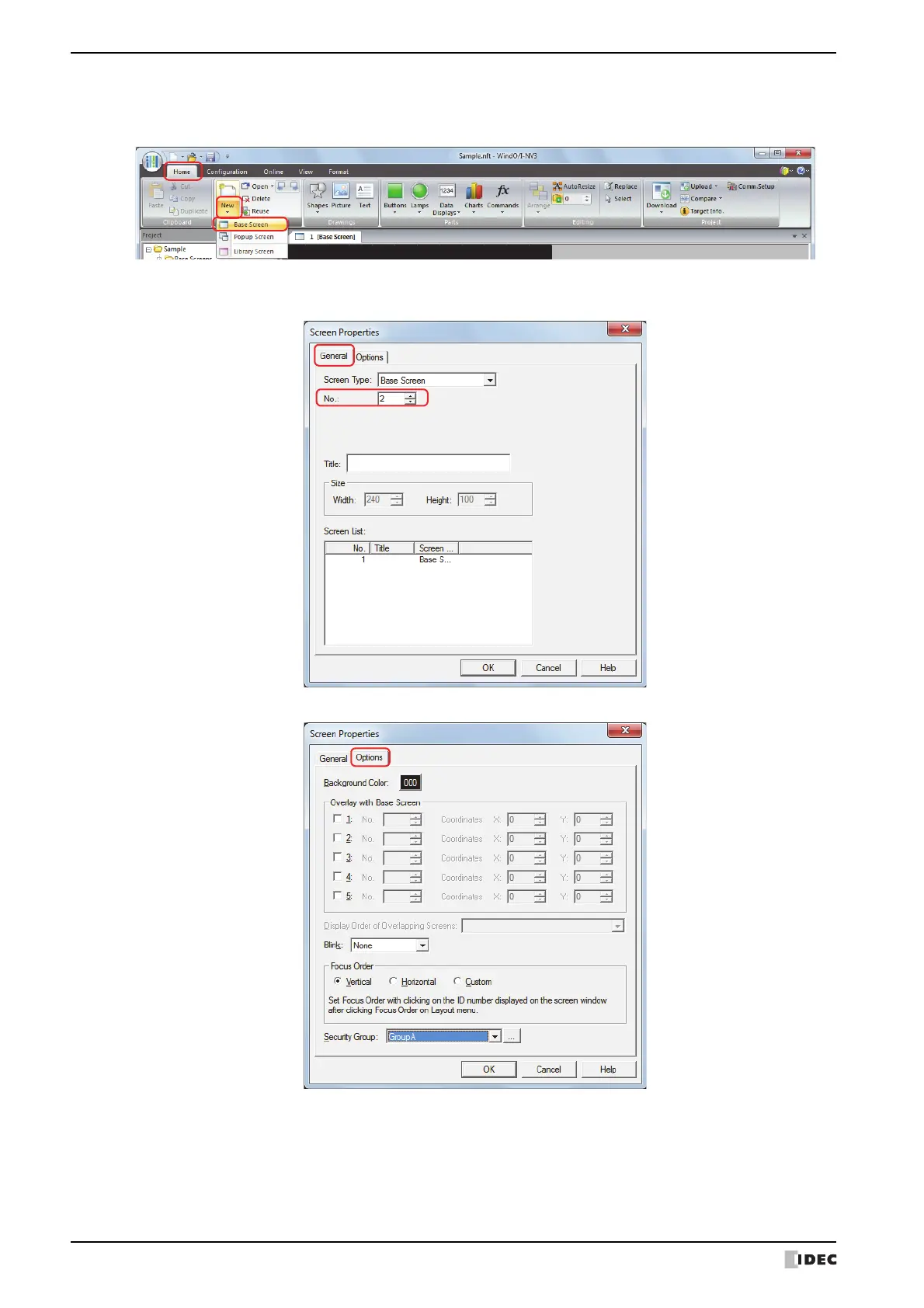

8 Create the Base Screen to switch to and configure the security group.
On the Home tab, in the Screens group, click the arrow under New, and then click Base Screen.
The Screen Properties dialog box is displayed.
9 Specify the screen number of the Base Screen to switch to with No. on the General tab.
This is the same screen number as the screen number specified in step
6. 2 is specified here.
10
Click the Options tab.
11
With Security Group, select the security group to allow the display of the Base Screen.
GroupA is selected here.
12
Configure the settings on each tab as necessary, and then click OK.
The Screen Properties dialog box closes.
This concludes configuring the project to protect the display of screens.
