SmartAXIS Touch User's Manual 22-17
5 User Communication
22
Communication
27

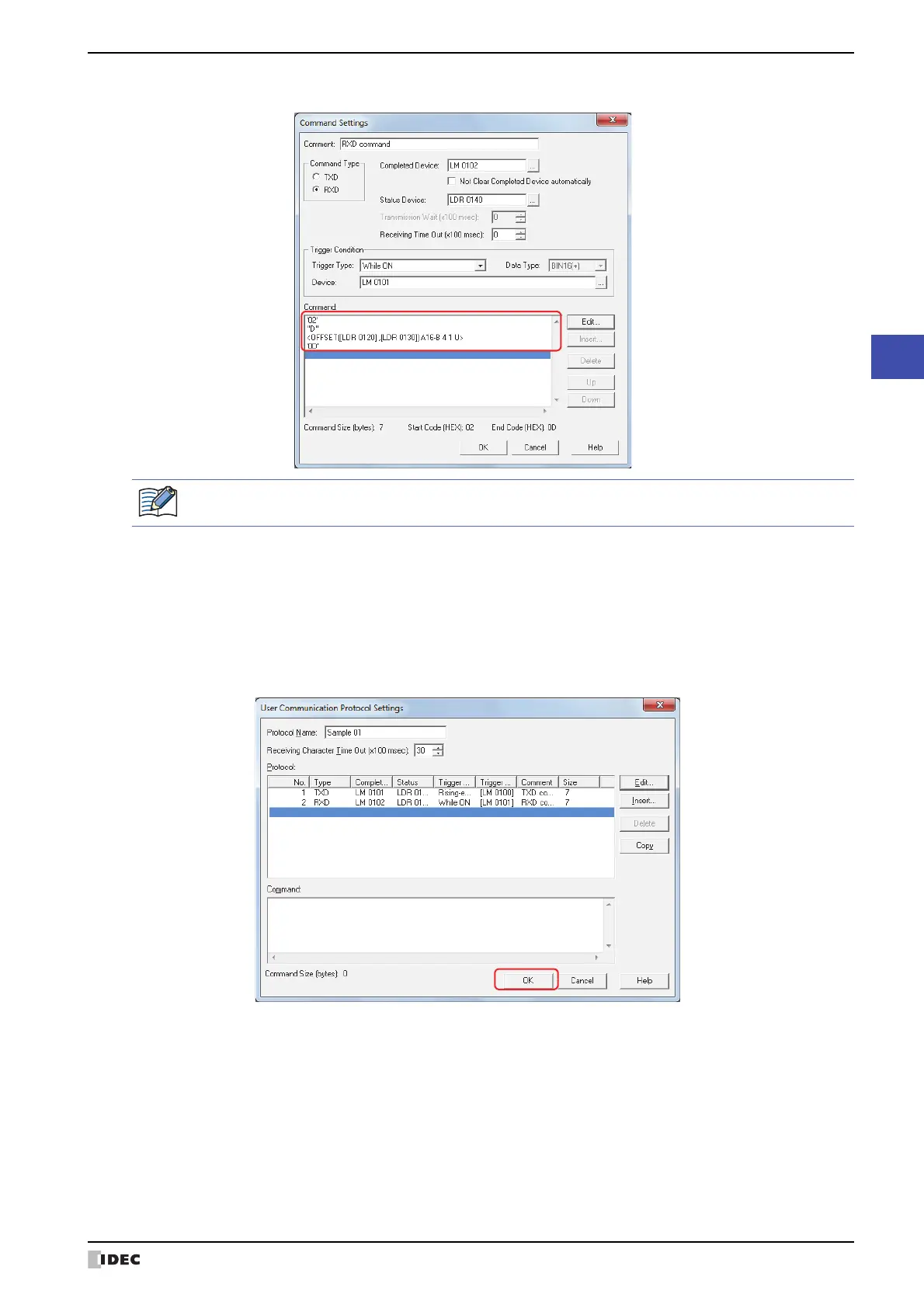

Repeat steps
24
through
26
to specify all the data for the receive command.
28
Click OK.
The receive command configured in Protocol on the User Communication Protocol Settings dialog box is displayed.
To add a transmission command, repeat steps
5 through
16
.
To add a receive command, repeat steps
17
through
28
.
29
Configure all commands, click OK.
User communication protocols are registered in Protocol List on Protocol Manager.
The data are displayed in Command in the order they were set. To change the order of data, select data,
and then click Up or Down to shift it.
