5 User Communication
22-16 SmartAXIS Touch User's Manual
23
Set the time out (0 to 255) from when the trigger condition is satisfied in Receiving Time Out (x100 msec) to
when 1 frame of data has been received.
A frame refers to a data string from the beginning to the end of a command.
24

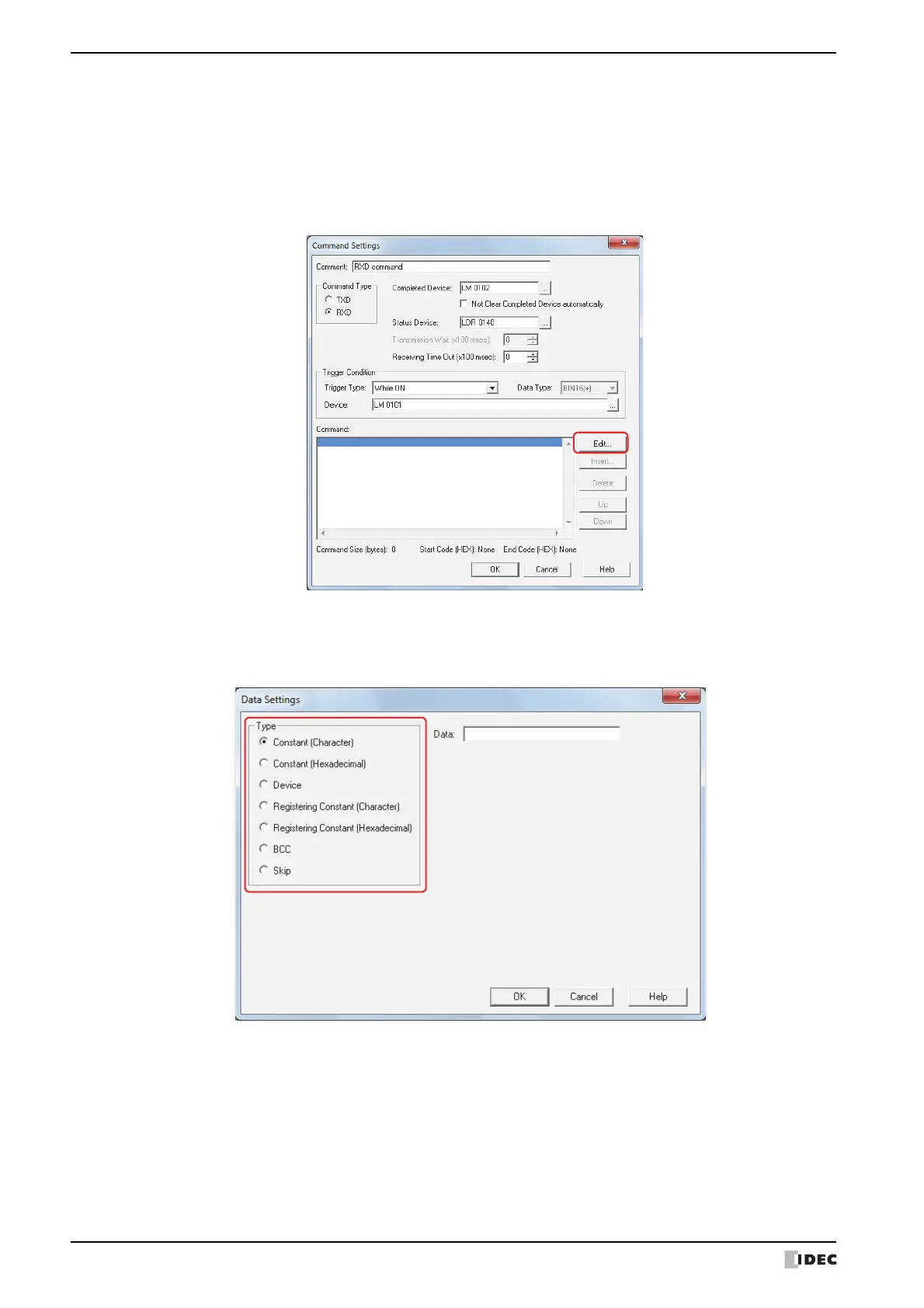

Set data for receive command.
Click Edit.
The
Data Settings
d
ialog box is displayed.
25
Select data type in Type.
Data setting items are displayed.
For details on receive command, refer to “Receive (RXD) Command” on page 22-50.
26
Specify the data, and then click OK.
The data configured in Command on the Command Settings dialog box is displayed.
To Next Page
