1 Creating WindO/I-NV3 Project Data
3-2 SmartAXIS Touch User's Manual

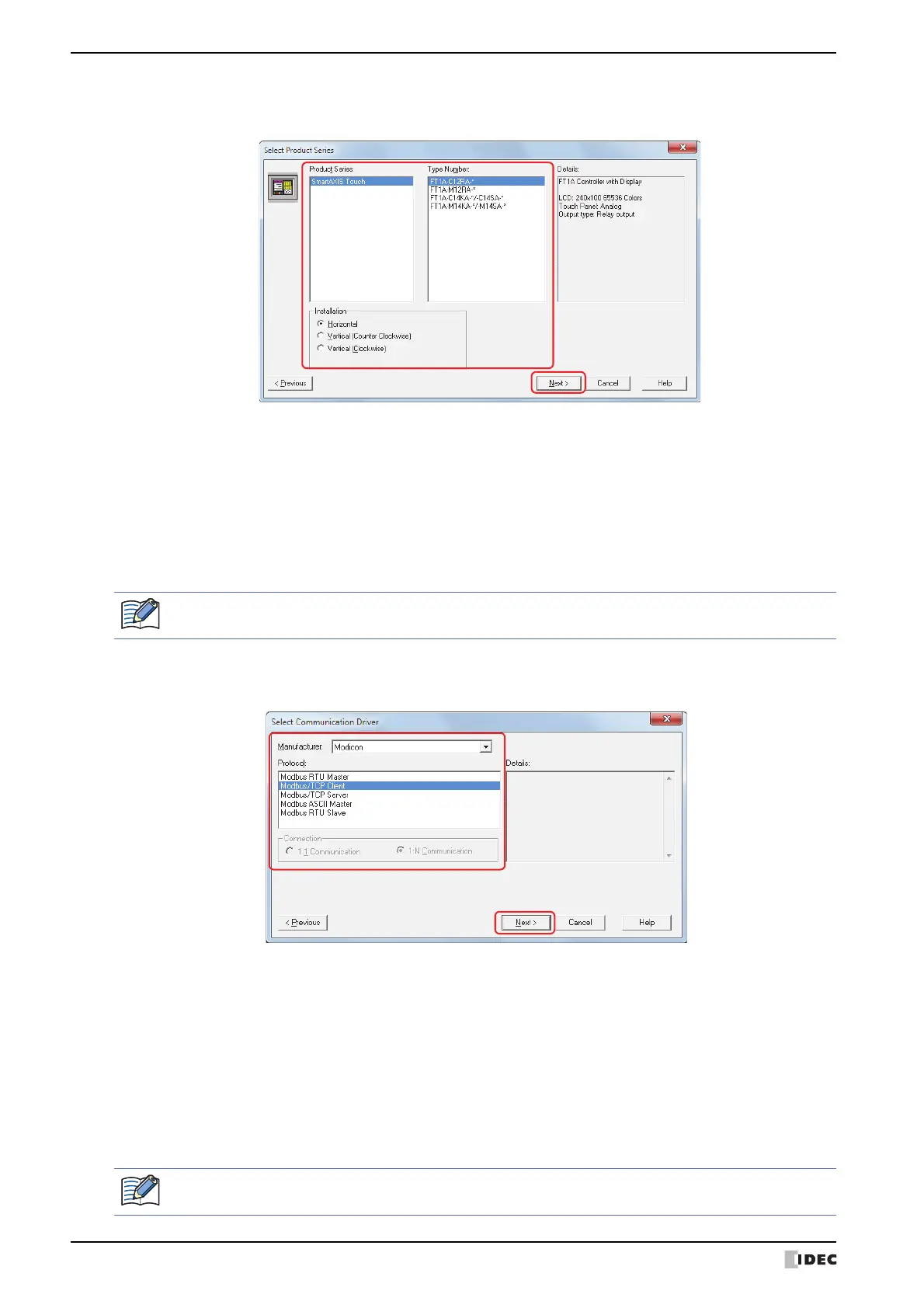

3 Select Product Series, Type Number, and Installation, and then click Next.
The Select Communication Driver dialog box is displayed.
■ Product Series
Select the Touch type.
■ Type Number
A list of type numbers associated with the selected Touch is displayed. Select the type number to use.
■ Installation
Select the Touch installation direction from the following options.
Horizontal, Vertical (Counter Clockwise), Vertical (Clockwise)
4 Select Manufacturer, Protocol, and Connection, and then click Next.
The Project Settings dialog box is displayed.
■ Manufacturer
Select the manufacturer name of the external device used.
■ Protocol
Shows the communication driver list for the select manufacturer. Select the communication driver to use.
■ Connection
Select the connection according to the number of external devices.
You can go back to previous step to change the setting by clicking Previous.
1:1 Communication: The Touch is connected to a single external device.
1:N Communication: The Touch is connected to multiple external devices.
You can go back to previous step to change the settings by clicking Previous.
