JRC JUE-501 - Contents of Alarmpack BDE Part

6. Web Menu System
6-30
VibY-Ave: Average value of Y vibration for
last 6 min (unit: G)
-6.0~+6.0
VibZ-Ave: Average value of Z vibration for
last 6 min (unit: G)
-6.0~+6.0
6 Rol-Max: Maximum value of Rolling for last
6 min
-40.0~+40.0
Pit-Max: Maximum value of Pitching for last
6 min
-40.0~+40.0
VibX-Max: Maximum value of X vibration for
last 6 min (unit: G)
-6.0~+6.0
VibY-Max: Maximum value of Y vibration for
last 6 min (unit: G)
-6.0~+6.0
VibZ-Max: Maximum value of Z vibration for
last 6 min (unit: G)
-6.0~+6.0
2. BDE part
Line Display Contents Displayed style
1 BDE-ALM: Existence of BDE alarm None or objective part
Name [E,W] ddd.d Longitude of used satellite Ex.) APEC E 143.5
SpotNo.: Used spot beam number 0~255
REC: Reception level
0～80
HD: Heading value 0.0~359.9
BDE-Sts: BDE status Ex) CS PS READY
2
ddd゜mm ’ ss” [N,S]
Latitude
Ex.) 12゜34’56” N
GPS: Using GPS built-in / Ext / Test
GPS-Sts: GPS fix status
Cold Start /
Unfix / 2D Fix / 3D Fix
GPS-Time: GPS UTC
hh:mm:ss dd/MMM/yyyy
3
ddd゜mm ’ ss” [E,W]
Longitude
Ex.) 123゜45’06” E
ExtGPS: External GPS OFF/ON
ExtGPS Data: Receiving GPS sentence None/ GGA/ ZDA

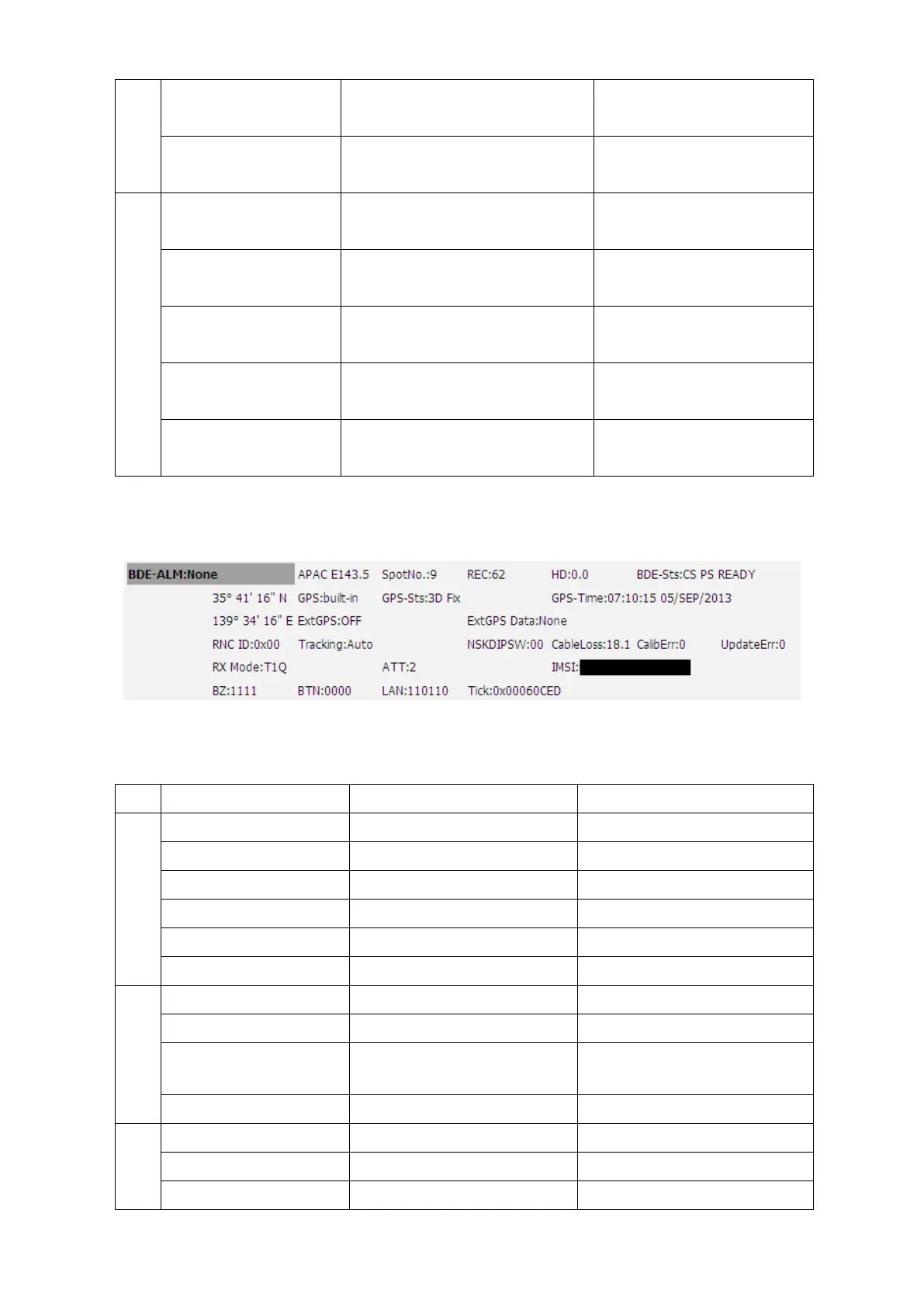

Fig. 6.4.6.1c Alarmpack BDE part
Table 6.4.6.1c Contents of Alarmpack BDE part
