6.5.3.3 Set User LAN and Ext WAN (Ethernet Screen)
To enter the Ethernet screen, open “Port” menu on the left [menu] panel and select “Ethernet”.
A simple User LAN Setting and Ext WAN setting are executed on this screen.
The setting of User LAN registered here is reflected to VLAN1. For further information about
VLAN, refer to [Sec. 6.5.5.6 Further Setting for User LAN](p6-70). A maximum of total 32W PoE
(Power over Ethernet) is available on User LAN.
Ext WAN means external WAN other than FBB system like VSAT. Setting of Ext WAN
is necessary for using WAN Selector function. Refer to [Sec. 6.5.5.9 Coexistence with
Other WAN](p6-75) for WAN Selector.
User LAN Contents
1)
IP Address
＊
1
）
IP address of JUE-501/JUE-251 for User LAN
2) Subnet Mask Subnet Mask for User LAN
It defines network address of User LAN.
3) DHCP When DHCP function is enabled, it allocates IP addresses
automatically to the devices connected to User LAN ports.
4)
DHCP Start Address
＊
1
）
*2)
Start IP address for the DHCP allocation
5)
DHCP Count
＊
2
）
The maximum amount of IP address for DHCP allocation.
DHCP Count range: 1 to 254
6) Set Registers User LAN contents
EXT WAN Contents
7） IP Address
＊
1
）
IP address of JUE-501/JUE-251 for E xt WA N I/F
8) Subnet Mask Subnet Mask for Ext WAN I/F
It defines network address of Ext WAN.
9) Set Registers Ext WAN contents

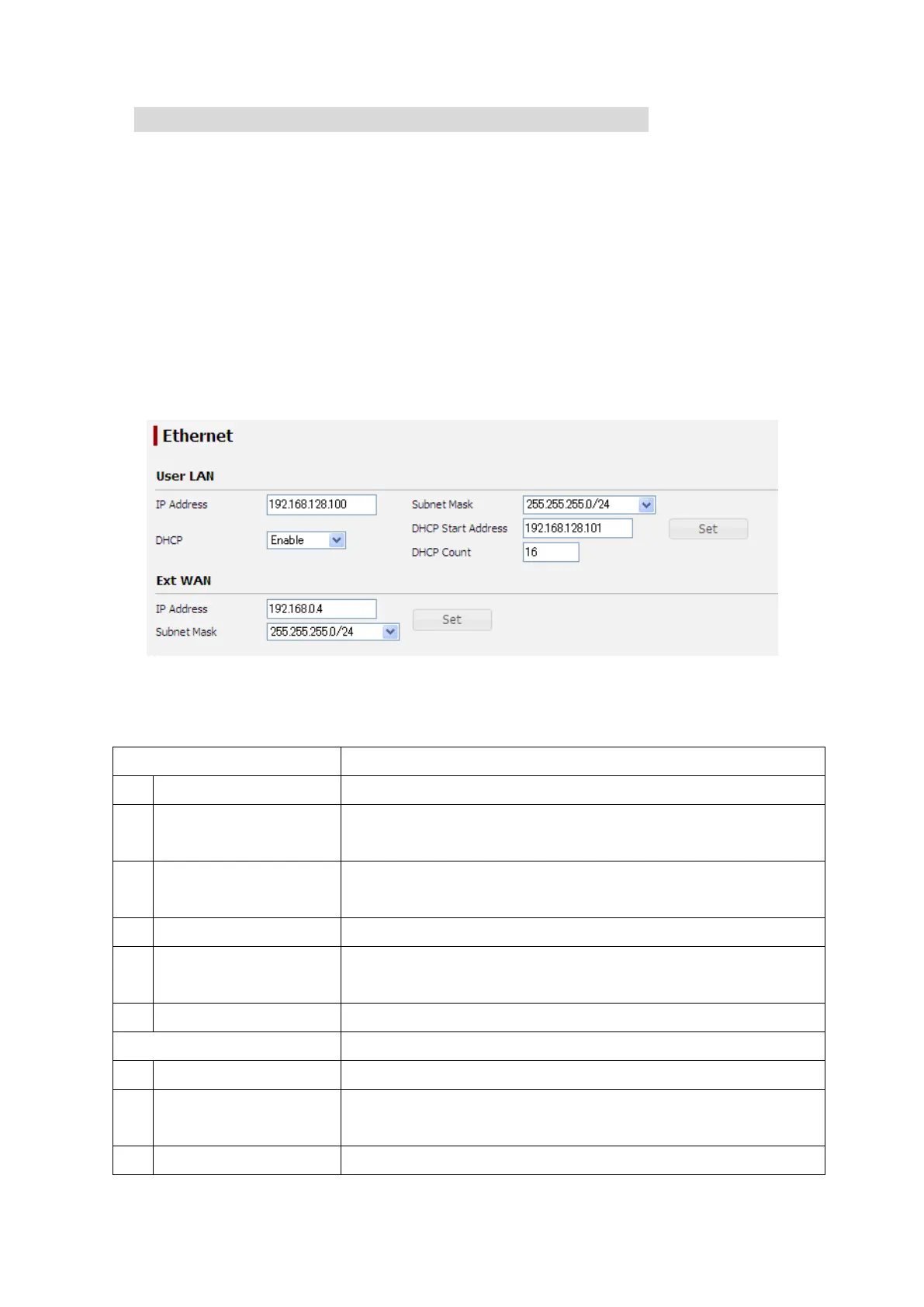

Fig. 6.5.3.3 Ethernet Screen
Table 6.5.3.3a Contents of Ethernet Screen
1)
2)
3)
4)
5)
6)
7)
8)
9)
