Chapter6 Web Menu System
1. ADE part
Line Display Contents Displayed style
1 ADE-ALM: Existence of ADE alarm None or objective part
EIRP: Transmission status (EIRP value)
0.0～22.0
ADETmp: ADE temperature +0.0
(fixed to 0.0 for JUE-501/251)
HPAT mp : HPA temperature
-125～125
SAT AZ: Satellite AZ
0.0～359.9
SAT EL: Satellite EL
0.0～90.0
BR: Antenna bearing
0.0～359.0
2 EL: Antenna EL
-25.0～120.0
Cross EL: Antenna XEL
-30.0～30.0
RSSI-1: RSSI-1 value 0 (fixed to 0 for JUE-501/251)
RSSI-2: RSSI-2 value
0～255
Search-Sts: Satellite search status 0~5
Track Mode: Tracking Mode Auto(Signal)/Auto(GpsHD)/
Auto(Sensor)/Gyro
3 ADE-GPS: ADE GPS fix status Cold Start / Unfix /
2D Fix / 3D Fix
GPSHD: ADE GPS Heading 0.0 ~ 359.9
PLL LockDet: PLL lock detect ON/OFF
GlobalBeam: Global Beam channel 0, 3200~19600
4 WRF Filter Using filter Narrow / Wide
WRF Port Use or non-use of WRF port Enable / Disable / Auto
WRF Moni WRF Monitor 0~254
5 Rol-Ave: Average value of Rolling for last 6
min
-40.0~+40.0
Pit-Ave: Average value of Pitching for last 6
min
-40.0~+40.0
VibX-Ave: Average value of X vibration for
last 6 min (unit: G)
-6.0~+6.0

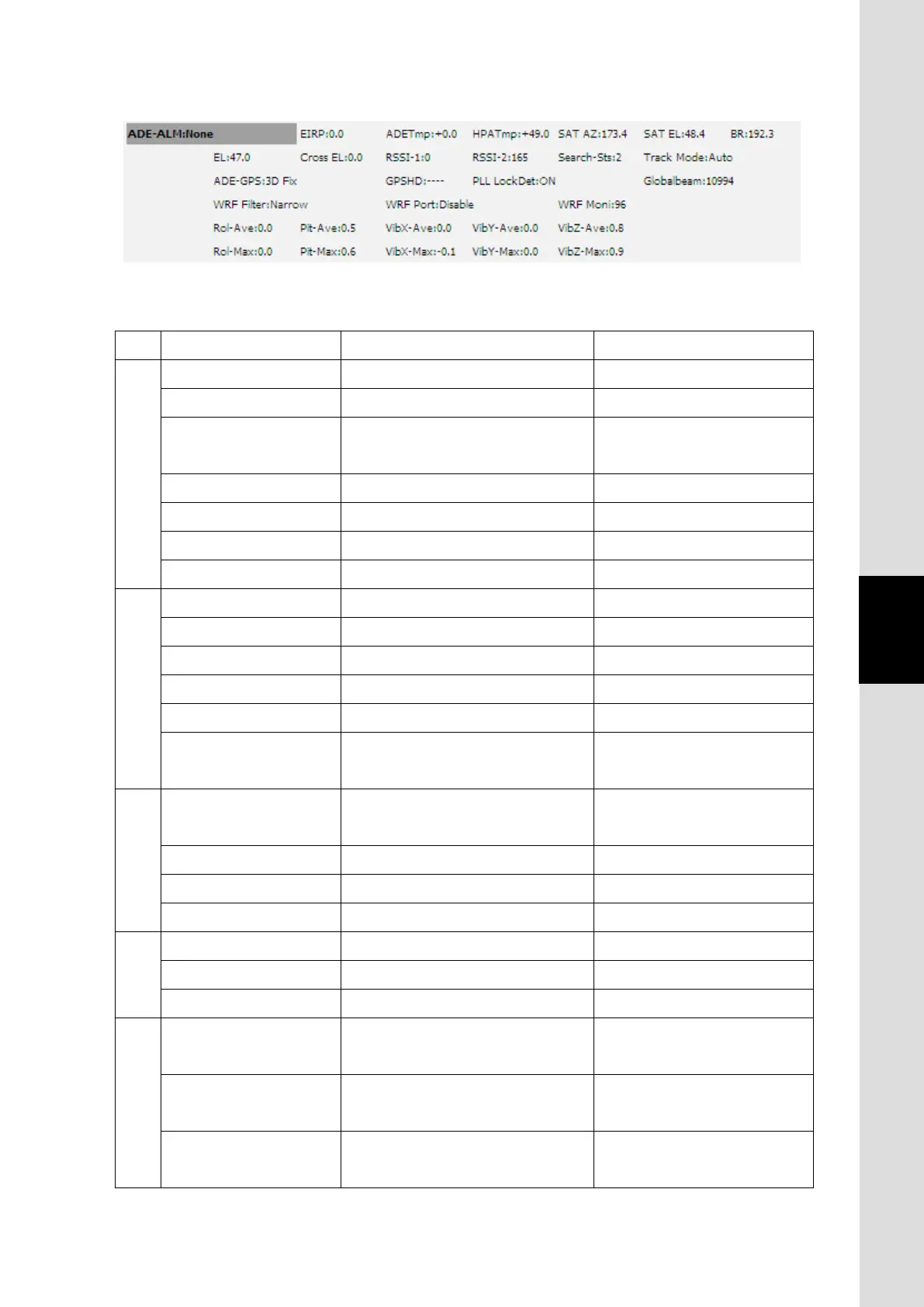

Fig. 6.4.6.1b Alarmpack ADE part
Table 6.4.6.1b Contents of Alarmpack ADE part
