Chapter 3 Appearance
3.5 Communication terminals
3.5.1 Terminal requirements
＊Series connection (of terminal telephone and FAX) is not available on one port.

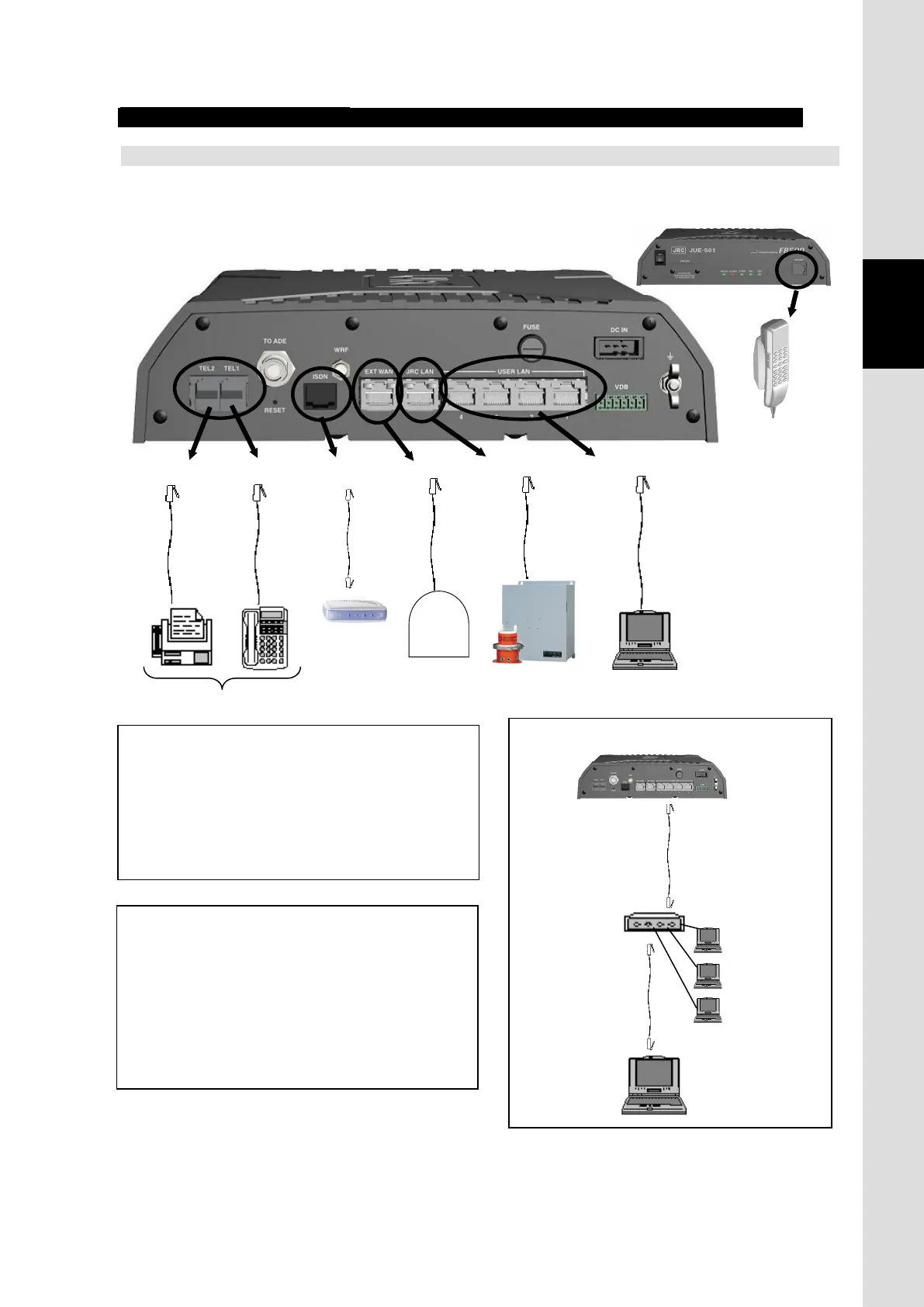

Fig. 3.5.1 Terminal requirements
RJ-11
TEL
cable
RJ-11
TEL
cable
* When five or more devices are connected to Ethernet
Port
TEL2 /TEL1 Port
RJ-45
Ethernet
cable
NOTE
JUE-501/JUE-251 recognizes the type of Ethernet
cable (cross or straight) automatically.
A maximum of total 32W PoE (Power over
Ethernet) is available on User LAN.
RJ-45
ISDN
cable
Terminal
Adapter
NOTE
Service type of TEL1/2 port must be set properly
according to the connected terminal (telephone or
FAX).
(Refer to p4-12 for Service type modification).
RJ-45
HUB
Ethernet
cable
Ethernet
cable
RJ-45
Ethernet
cable
RJ-45
Ethernet
cable
E x t WA N
Port
JRC LAN
Port
User LAN
Port
Handset
ESV
etc
VDR
ISDN
Port
