JRC JUE-501 User Manual

6. Web Menu System
6-68
6.5.5.5 Set LAN Group (LAN Group Screen)
To enter the LAN Group screen, open “Network” menu on the left [menu] panel and select “LAN
Group”.
On this screen, user can define LAN Groups. A LAN Group is a unit to which IP masquerade is
applied. LAN Groups defined here are used as options when “IP Masquerade” has been selected
for “Connection Mode” on WAN Profile screen (refer to Table 6.5.5.1b 2)).
Display Contents
1) Select Group
Select the LAN Group to configure.
2) View Displays the selected LAN Group.
3) Group Name Name of the LAN Group
The name set here is used in “Connection Mode” on WAN Profile
screen (refer to Table 6.5.5.1b 2)).
4) Network Network (a unit to which IP masquerade is applied)
Manual setting menu will appear when “Manual”
is selected. (Refer to
Table 6.5.5.5b)
5) DMZ Setting for DMZ (DeMilitarized Zone)
Transferring destination menu will appear when “Enable”
is selected.
(Refer to Table 6.5.5.5c)
6) Port Forward Setting for Port Forwarding
● Network
Network can be a VLAN or manually defined network. When “Manual” is selected for “Network”,
manual setting menu for “Network” will appear. Input settings for the network and click “Set” button.
Display Contents
1) Network IP
Network address for the LAN Group
2) Network Mask
Subnet Mask to define the range of the LAN Group
Fig. 6.5.5.5b Manual setting menu for Network
Table 6.5.5.5b Contents of Manual setting menu for Network

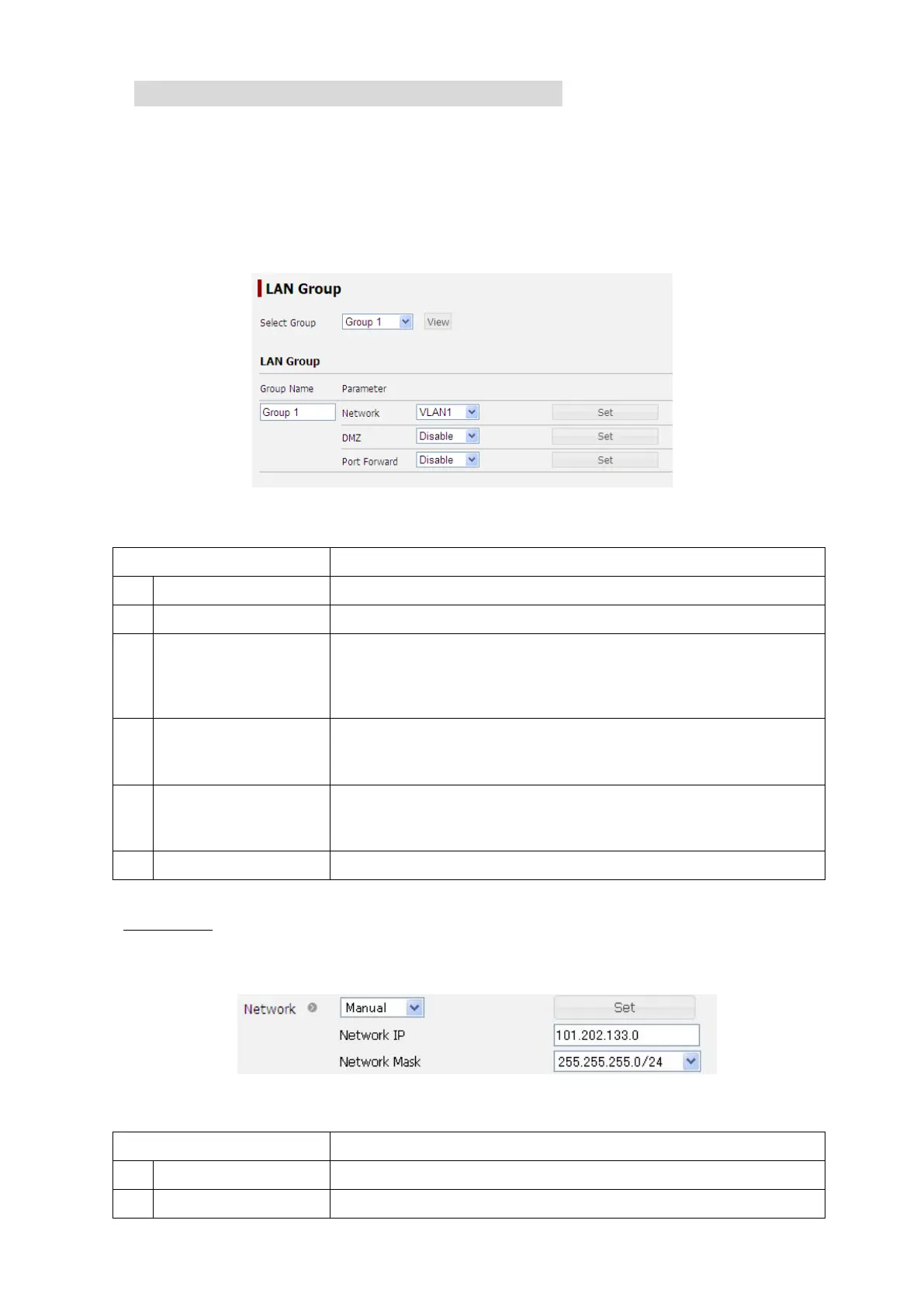

Fig. 6.5.5.5a LAN Group Setting Screen
Table 6.5.5.5a Contents of LAN Group Setting Screen
1)
2)
3)
4)
1)
2)
3)
5)
6)
