JRC JUE-501 User Manual

Appendix C Junction Board
C-3
Communication available status
ON
C.3 Screen display of Handset , when JB /GYRO are used (Corresponded to Chapter 4.1.4)
Initializing
Initialize
Initial Heading value requesting
[READY]
lamp lit.
APAC E143.5
14:03 UTC
CS PS READY
Heading
？
Satellite searching
APAC E143.5
14:03 UTC
SAT SEARCH
Registering to network
APAC E143.5
14:03 UTC
REGISTERING
A LED of Main unit starts blinking.
About 90 seconds later, initializing is started
and blinking [Initialize] text is displayed.
[SAT SEARCH] text is displayed in the
lowest, [Status] line. Satellite search is
started.
Satellite search is terminated and then
[REGISTERING] text is displayed.
Registering to Inmarsat network is started.
Registering is terminated and [CS PS
READY] text is displayed.
Various services are available. (About the
operation after this screen, refer to chapter
4.1.4 or later).
Input Heading value when it is required.
Note) this screen appears when:
• GYRO type is SYNC/STEP, and an
initial Heading value is not set yet.
•
GYRO type is NMEA, and
JUE-501/JUE-251
cannot obtain
Heading information from GYRO.

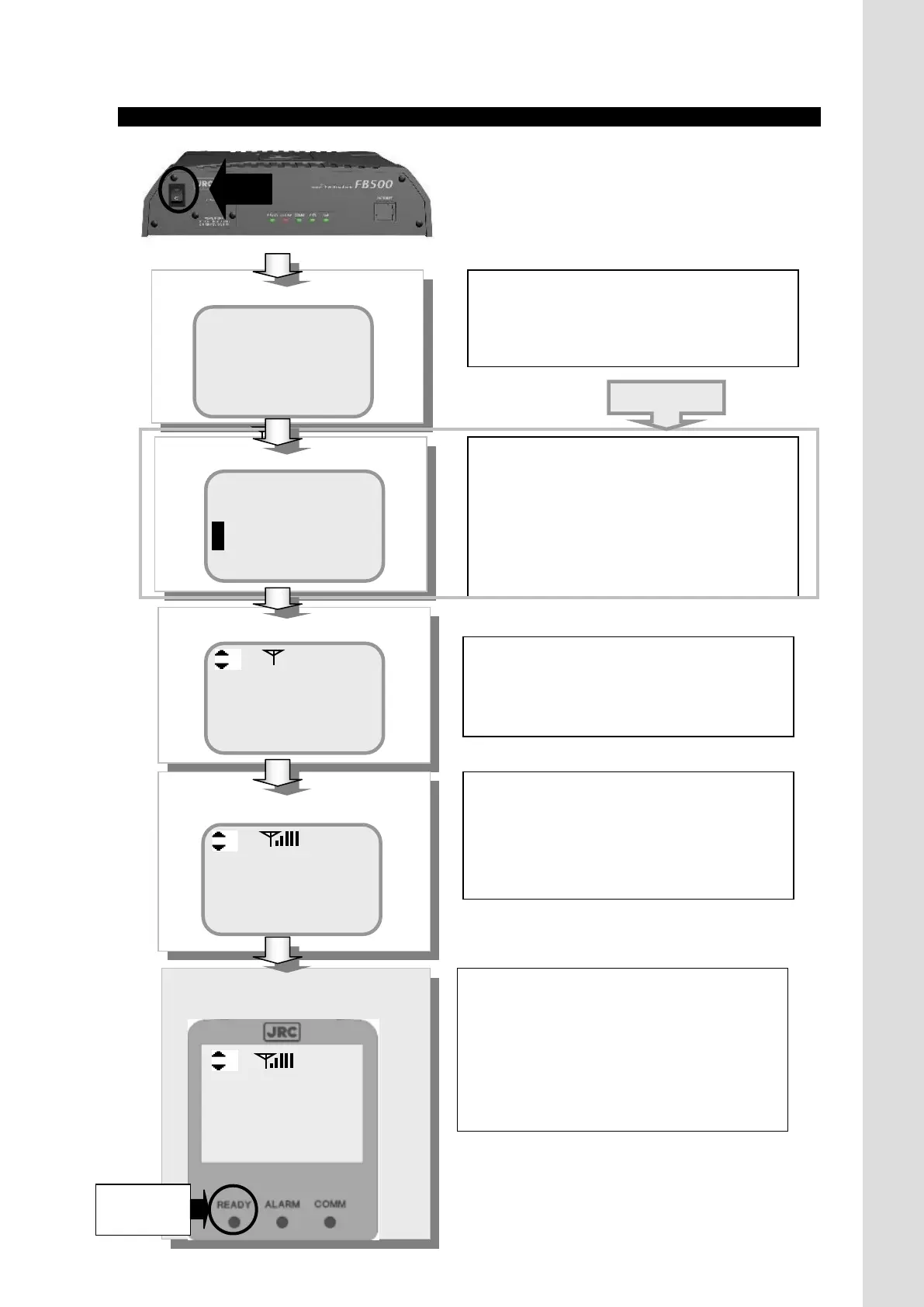

Fig.C.3 Screen display of Handset
(when JB/GYRO are used)
Changed
Turn on JUE-501/JUE-251 by pushing
power switch of Main unit.
