Chapter8 Using ISDN port
Setting MSN using Handset [MSN edit menu]

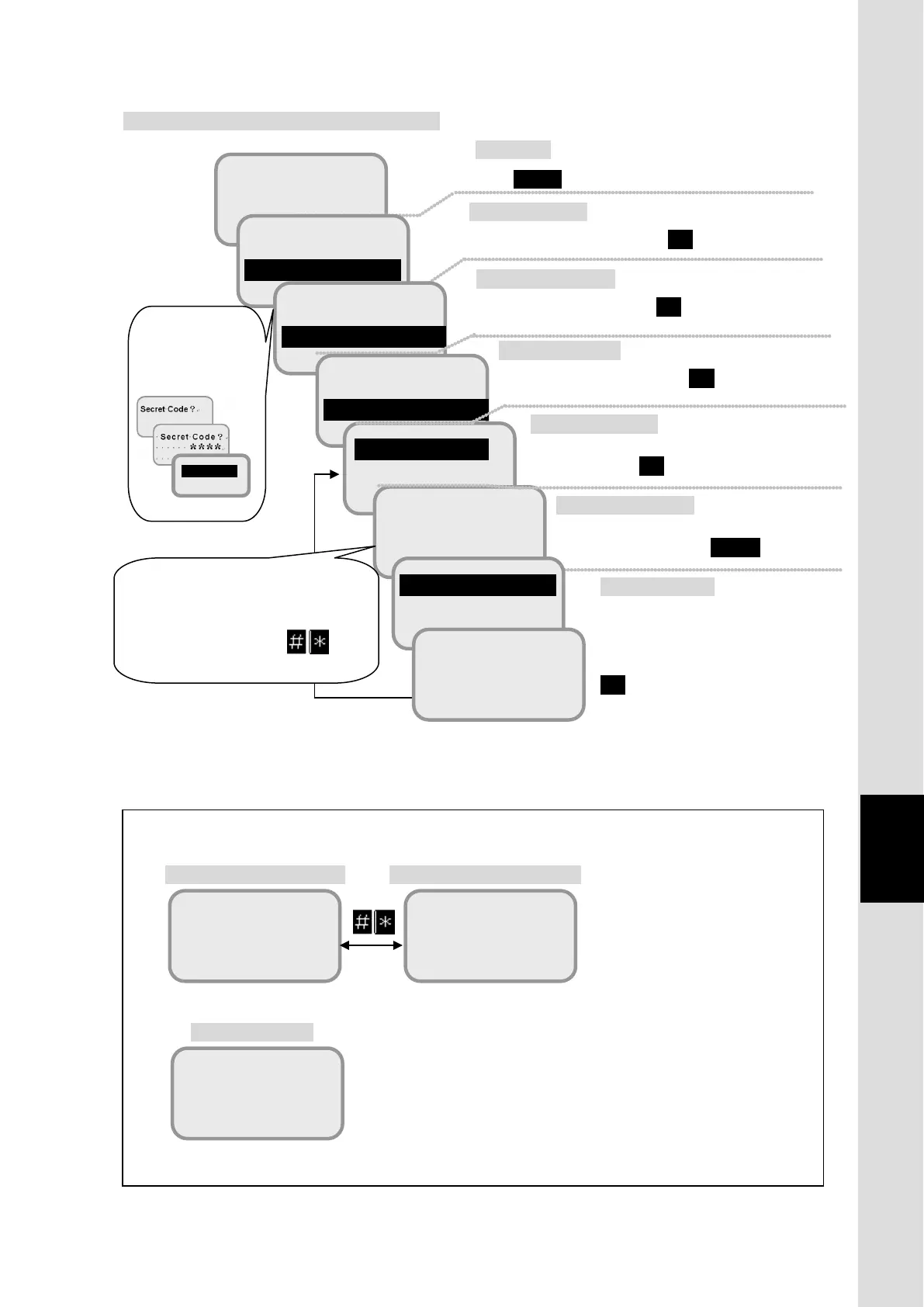

Fig. 8c Flow of Setting MSN using Handset [MSN menu]
Fig. 8d Displaying digits of MSN display/edit screens
MSN menu screen
Select the service type you want to set the
MSN, and press OK button.
Port menu screen
Select [2 ISDN] and press OK button.
APAC E143.5
14:03 UTC
READY
Top menu screen
Select [9 Admin] and press OK button.
Admin menu screen
Select [3 Port] and press OK button.
8 Alarmp
ack
9 Admin
READY
2 Telephony
3 Port
000m00s
1
Handset
2 ISDN
READY
1 Voice-MSN
2 Audio-MSN
Voice-
MSN
123456789123
CS READY
Edit
CS READY
MSN display screen
Default value will be displayed.
To edit the MSN, press MENU button.
MSN edit screen
Enter the MSN number. When
the number exceeds 12-digit, rest
of the digits will be displayed in
upper line, up to 15-digit. Press
OK when it is completed.
123
456789123456
When the displayed number over
12-digit, the rest of the digits will
be displayed in right screen. To
see right screen, press .
NOTE
Voice-
MSN
123456789123
Voice-
MSN
456
MSN display screen (left)
MSN display screen (right)
123
456789123456
MSN edit screen
MSN edit screen shows whole digits (even the number
exceeds 12-digit) in single screen by showing 1st to 3rd digits
in upper line, unlike the MSN display screen shows the 13th
to 15th digits to next (right) screen.
Enter the
Admin
Secret code.
Idle screen
Press MENU button.
1 Terminal
2 Telephony
