JRC JUE-501 User Manual

7. Handset Menu System
7-55
Chapter7 Handset Menu System
8 Alarmpack
9 Admin
TOP menu screen
2 Telephony
3 Port
7.9.3.3 Ethernet (User LAN / EXT WAN) setting (MENU+9+3+3+1~2)
A simple User LAN Setting and Ext WAN setting are executed on this menu.
The setting of User LAN registered here is reflected to VLAN1. For further information about VLAN,
refer to [6.5.5.6 Further Setting for User LAN (p6-70)]. A maximum of total 32W PoE (Power over
Ethernet) is available on User LAN.
User LAN Setting
＊
1
）
About IP address input
IP address is configured with 4 strings of 3 digits numbers, which delimitated by a period.
Add [0] or [00] for the string which is less than 3 digits.
Ex.）[192.168.128.1] shall be input as [192168128001]
Possible input range of IP address:
10. 0.0.1 – 10.255.255.254
172.16.0.1 – 172.31.255.254
192.168.0.1 – 192.168.255.254
＊
2
）
About DHCP function
. Maximum number for the [DHCP range setting screen] is [254].
IP address
*1)
editing screen
Press any numeric key, then initially displayed
numbers are once erased altogether.
Then enter the new IP address and press OK
button.
Subnet Mask editing screen
Set the SUBNET MASK and press OK button.
DHCP setting screen
Set the DHCP function use/non-use.
Select [Enable (use DHCP)] or [Disable
(non-use DHCP)] by the cursor and press OK
button.
DHCP
*2
）
allocation setting screen
Enter the minimum IP address for the DHCP
allocation and press OK button.
DHCP
*2
）
range setting screen
Enter the total amount of the IP address
number for the DHCP allocation and press OK
button. Input the number from 1 to 254.
DHCP?
Enable
Disable
OK
OK
IP?
192168128100
DHCP Base?
192168128101
OK
DHCP Count?
154
OK
Subnet Mask?
255255255000
OK
1 Handset
2 ISDN
3 Ethernet
4 I/O
5 Option
Port menu screen
1 User LAN
2 Ext WAN
Ethernet menu screen
OK
OK
For default settings, refer to Table 7.9.3.3

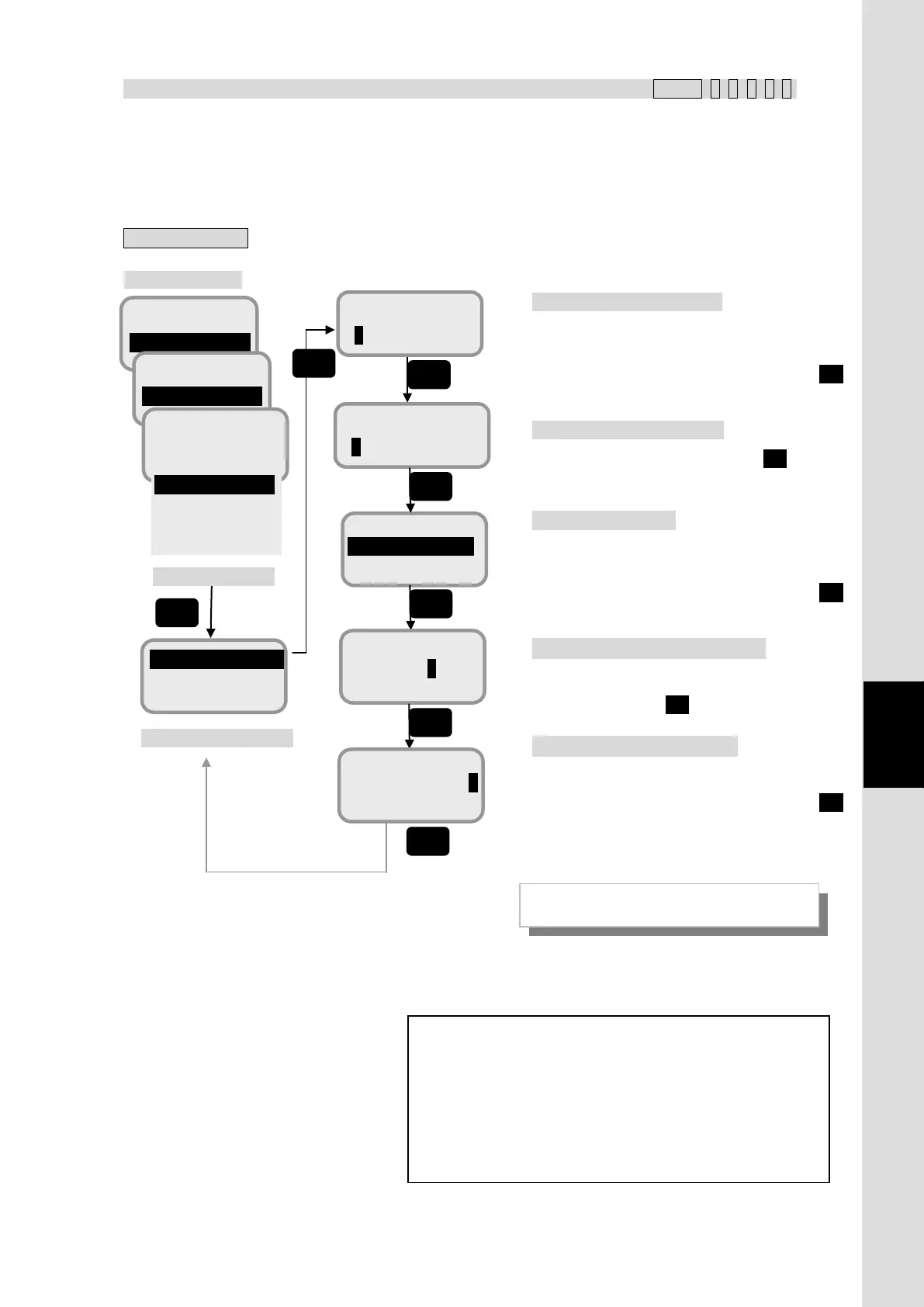

Fig 7.9.3.3a Flow of User LAN setting
・Use of “all ones” or “all zeros” for the host field of the IP
address is not supported.
・192.168.0.0/24 is used for EXT WAN and 192.168.60.0/24
is used for JRC LAN as a default. To set these addresses
to User LAN, change the network address of EXT WAN
or JRC LAN first and set the address to User LAN.
