6. Web Menu System
6-54
8) Global IP Select Dynamic or Static for Global IP address used in this profile.
Global IP address is required only when Static is selected.
9) Set Default Reset the settings to the default.
10) Advance Mode Get into advanced configuration. (Refer to Table 6.5.5.1b)
11) Set Registers the profile.
■ Advance Mode
When Advance Mode button (explained by 10) of Table 6.5.5.1a) is clicked, the Advance Mode button
will change into Normal Mode button and advanced configuration will be displayed.
Display Contents
1)
Normal Mode
Hides advanced configurations.
2)
Connection Mode
Selection for Communication Mode.
“1by1 NAT” is set as a default.
LAN Group selection menu will appear when “IP Masquerade” is
selected. (Refer to Table 6.5.5.1c-d)
VLAN selection menu will appear when “Bridge” is selected. (Refer to
Table 6.5.5.1c-d)
Click Set button to activate the setting.
3) Packet Detect Activate
Packet Detect Activate is a function that automatically connects Standard
IP Connection
by detecting outgoing packet when main unit is ready to
connect PS Connection (PS READY).
The Standard IP Connection
connected by this function will be disconnected by
function if Auto disconnect function is activated.

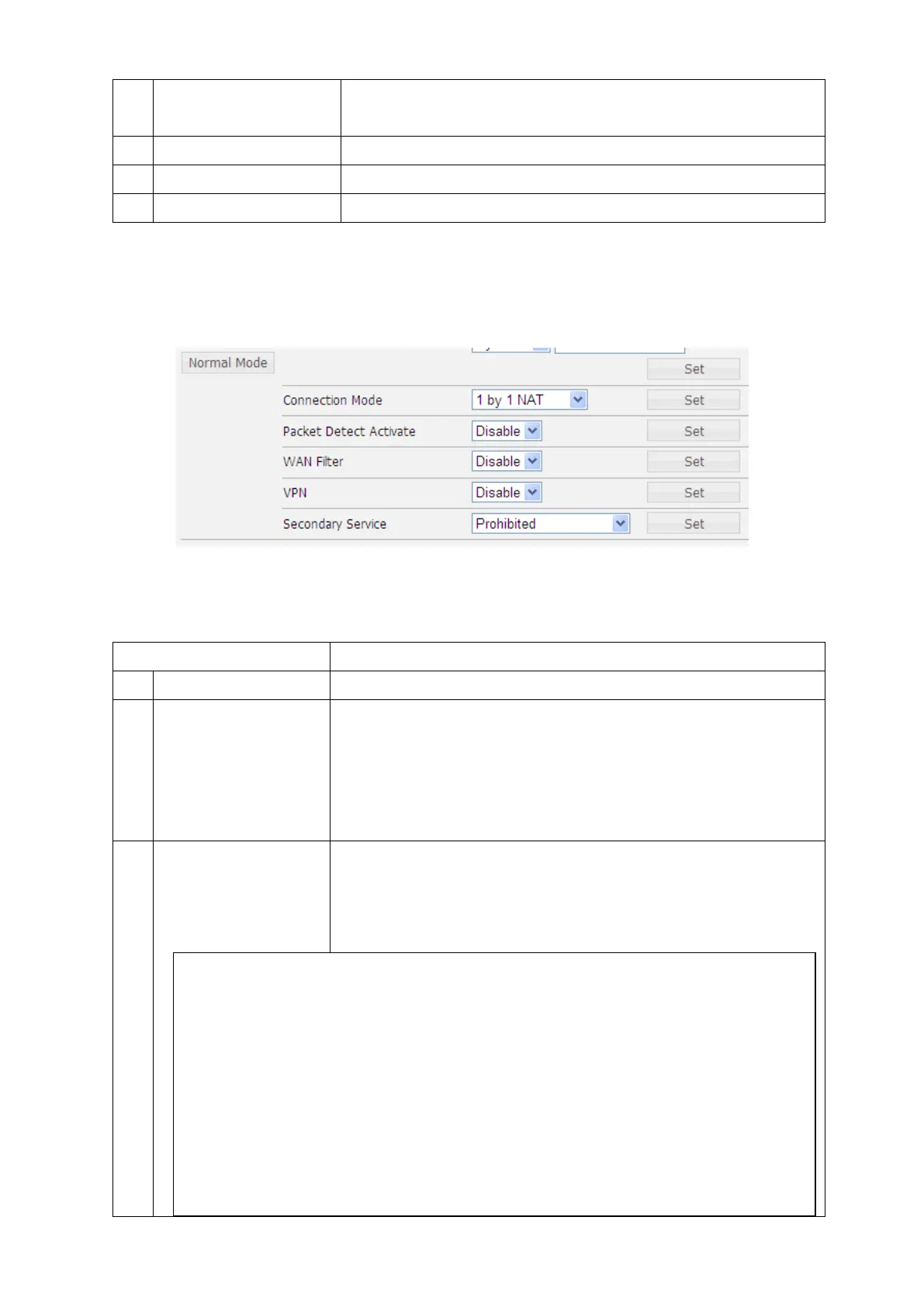

Fig. 6.5.5.1b WAN Profile Advanced Screen
Table 6.5.5.1b Contents of WAN Profile Advanced Screen
• There is a possibility to connect unexpected PS Connection by the settings or
operation of terminal connected to Ethernet port. And if packet was sent or
received through this connection, communication fee will be charged. Thus be
careful to block an unexpected packet by using Packet Filter and modifying
settings of the terminal etc.
• JRC is indemnified for any communication fee troubles using this function
except as outlined in the product warranty and by limitation of law.
• Distribution partner of SIM card might charge a communication fee by only
connecting and disconnecting Standard IP Connection.
