JRC JUE-501 User Manual

4-2
4. Getting started
TEL
FAX
PC(s) connected
with Ethernet port
Terminal
Adapter
Handset
Ext WAN
VDR
4.1 Connecting terminals and power on
4.1.1 Connecting terminals with cables
(Connection is
depending on the
Terminal Adaptor)
NOTE
• The JUE-501/251 recognizes Ethernet cable type (cross or straight) automatically.
• Service type of TEL1/2 port must be set properly according to the connected terminal
(telephone or FAX). (Refer to p4-12 for Service type modification).
• A maximum of total 32W PoE (Power over Ethernet) is available on User LAN.

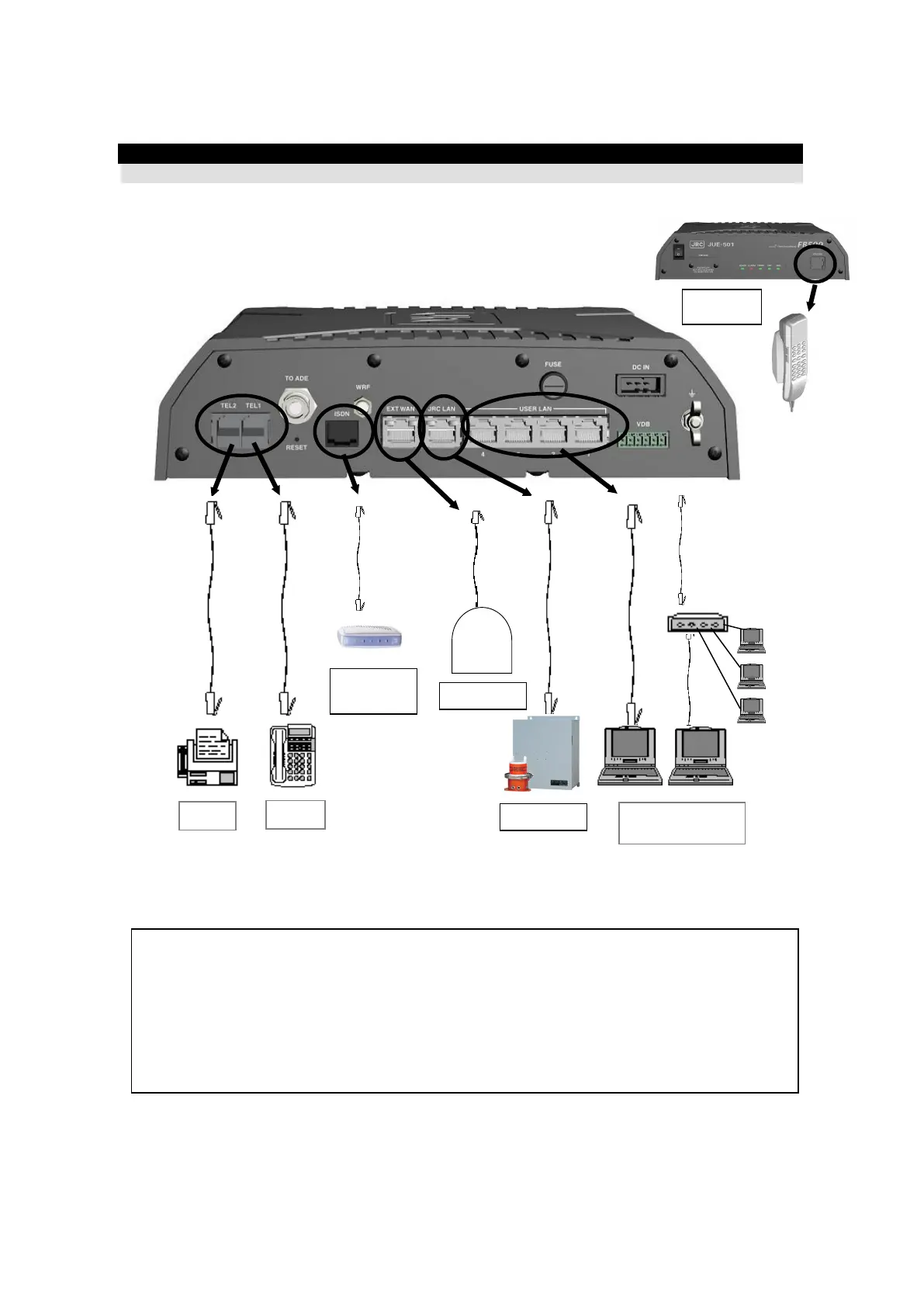

Fig.4.1.1 The Cable connection of each terminal
