6. Web Menu System
6-46
6.5.3.4 Set Input/Output signal (I/O Screen)
To enter the I/O screen, open “Port” menu on the left [menu] panel and select “I/O”.
On this screen, user can set input/output of acknowledgement/indication from/to the
device connected to the Junction Board. A maximum of two output devices and two
input devices can be connected to Junction Board at a time.
Output / Input Contents
1) Control
Use or non-use of the I/O port
2) Function Function of “Output” is fixed at “Ring Indication” and that of “Input” is
also fixed at “Ring Acknowledge” in current version.
3) Polarity “Active High” means the function is executed by the higher of two voltages.
“Active Low” means the function is executed by the lower of two voltages.
(For the Output devices, “Active High” and ”Active Low” is controlled by
their connection to the Junction Board.)
4) Set Registers the Output / Input settings.
Function Contents
5）
Type Select the service type to activate output.
6) Set Registers the Function settings.
1)
2)
4)
1)
2)
3)
4)
5)
6)

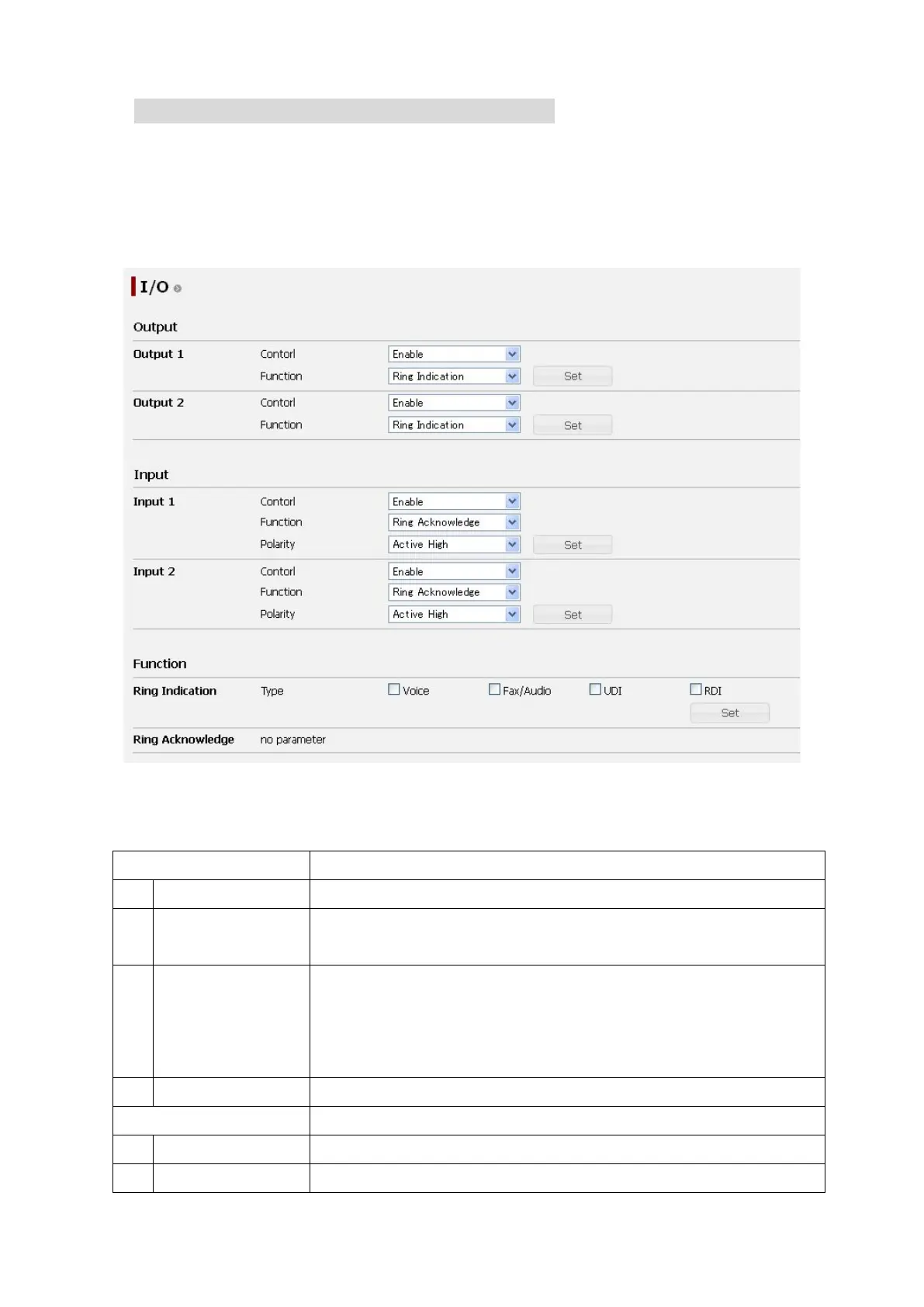

Fig. 6.5.3.4 I/O Screen
Table 6.5.3.4 Contents of I/O Screen
