JRC JUE-501 - 4.1.4 Screen display of Handset

4-8
4. Getting started
Communication available status
APAC E143.5
14:03 UTC
CS PS READY
4.1.4 Screen display of Handset
Go to chapter 4.2 for initial
setting.
Turn on JUE-501/JUE-251 by pushing power
switch off Main unit.
If Gyro is being selected for tracking, refer to
Appendix C.3.
Initializing
Initialize
ON
[READY] lamp lit.
(Refer to [3.4.1. LCD/LED section] (p3-11).
* Antenna bars display communication status
0 : Impossible to communicate (no reception)
1 to 2:Possible to communicate but unstable
3 to 6:
Possible to stable communicate
A LED of Main unit starts blinking.
About 90 seconds later, initializing is started
and blinking [Initialize] text is displayed.
It takes about 1 minute until satellite
searching is started.
Satellite searching
[SAT SEARCH] text is displayed on the
lowest, [Status] line. Satellite search is
started.
Satellite search is terminated and then
[REGISTERING] text is displayed.
Registering to Inmarsat network is started.
APAC E143.5
14:03 UTC
SAT SEARCH
Registering to network
APAC E143.5
14:03 UTC
REGISTERING
Registering is terminated and [CS PS
READY] text is displayed.
Various services are available.

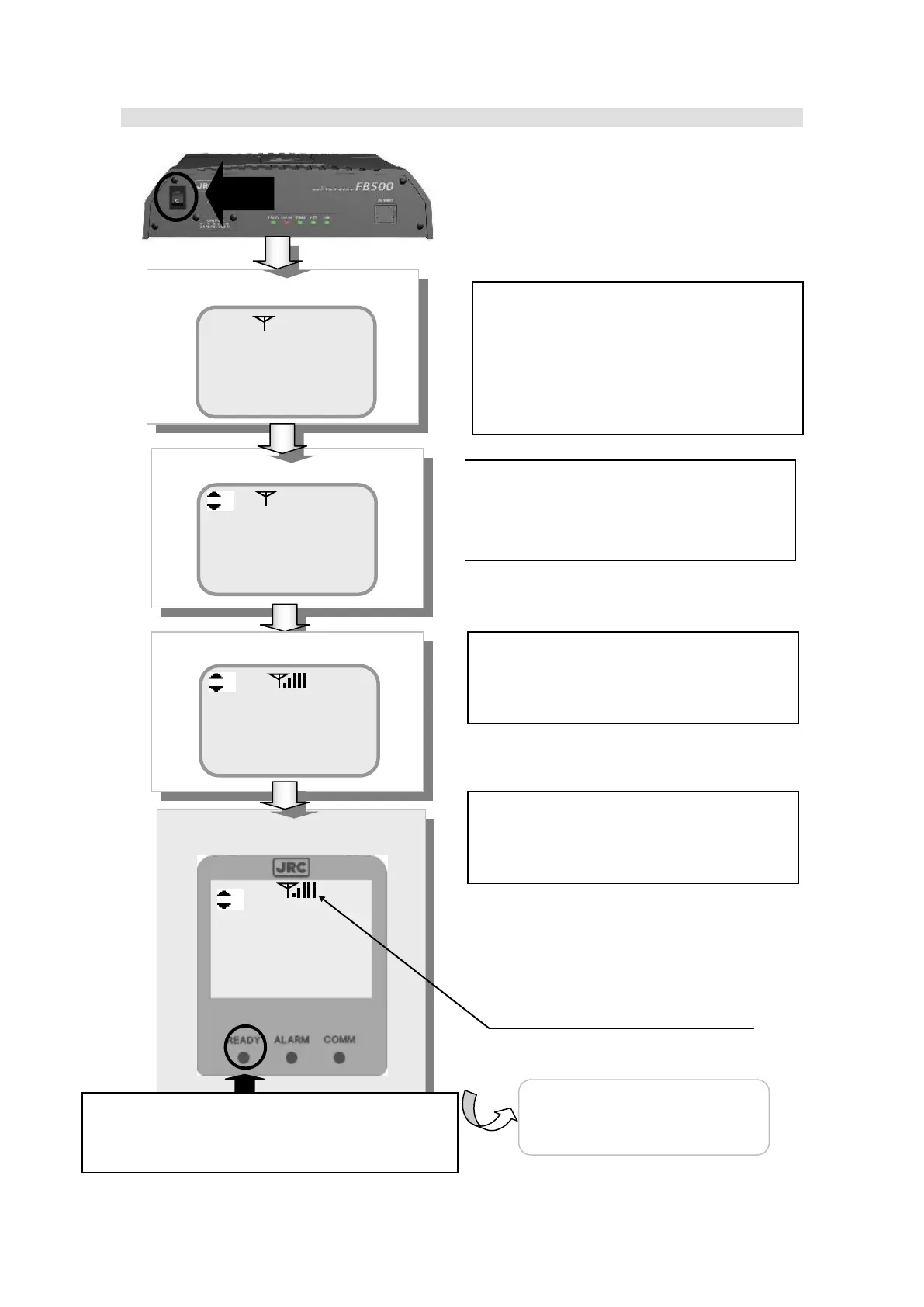

Fig.4.1.4a Screen transition when Power switch is turned on
