Change the view range of the MAC filter list
Step1: Input the minimum ID number you want to view to the “Start” box.
Step2: Input the maximum ID number you want to view to the “End” box.
Step3: Click “Disp” button, and the list of ranges you inputted is displayed.
Add new permitted MAC address
Step1: Input a MAC address to a text box. Packet data from and to the address is
permitted to pass the main unit.
Step2: Click “Set” button in the line.
MAC address is configured with colon-separated 6 strings of numbers and alphabets.
Example) 08:00:20:9E:7F:04
Delete permitted MAC address
Step1: Click “Del” button in the line
6.5.5.7 Use Static IP Address (Static DHCP Screen)
To enter the Static DHCP screen, open “Network” menu on the left [menu] panel and select “Static
DHCP”.
You may want to use static IP address for a device to manage network or to use Device Registration.
The list of IP address and MAC address on the upper part of this screen is the setting list for
allocating the static IP address to the MAC address. The list of lower part of this screen shows the
combination of MAC address and its IP address being allocated by DHCP at that time.
User can set a maximum of 50 combinations of IP address and MAC address for static DHCP.

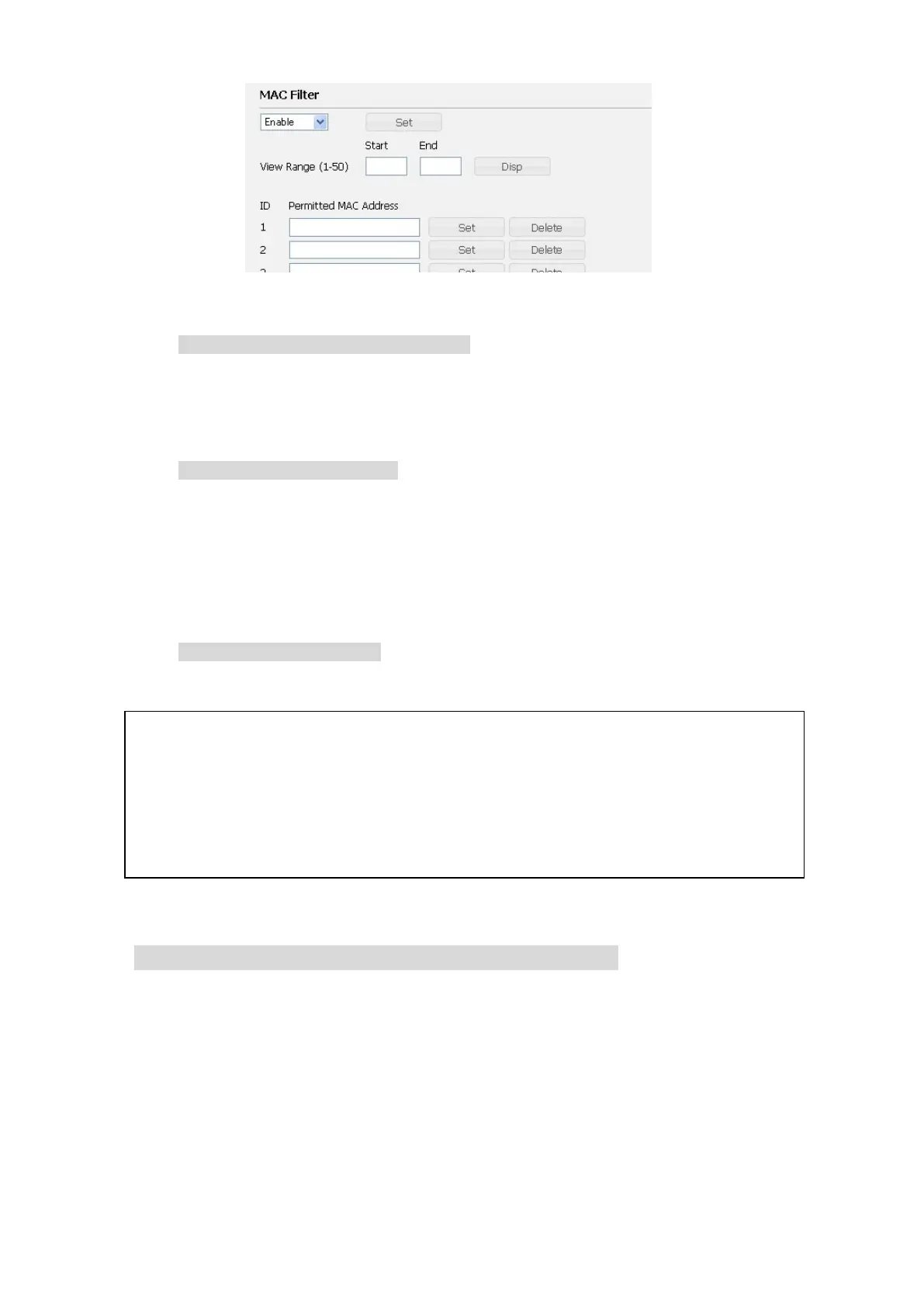

Fig. 6.5.5.6c MAC Filter Setting
NOTICE
Access to the main unit by Web Menu or Launch Pad remains available even if the MAC address is
not listed to the “Permitted MAC Address”.
MAC Filter restricts the packet data flow to the internet attempted by the devices
which has not been listed on "Permitted MAC Address".
