6.4.5 Call Log Menus
Call Log menu is on the left [menu] panel.
In this menu, user can display/clear the Call Log and set Call Charge to calculate communication
charge. Call Log Menu contains following screens.
・ Call Log Screen （Sec. 6.4.5.1 Check Call Log）
・ Call Charge Screen （Sec. 6.4.5.2 Set Call Charge Rate）
6.4.5.1 Check Call Log (Call Log Screen)
To enter the Call Log screen, open “Call Log” menu on the left [menu] panel and select “Call Log”.
A maximum of 2000 Call Logs are stored in this page. When the stored logs exceed 2000 affairs, it
deletes the oldest one.
When a voice service session has established by Multi-Voice function, logs of PS connections with
those user name “Multi-Voice” will be recorded in addition to the voice-call log. The charges of these
PS connections are free. Refer to Appendix J for Multi-Voice function.
1) File Displays call logs in the CSV text format.
*If this function is executed by multiple PCs simultaneously, the file may be
damaged. In this case, obtain the file again.
* Follow the PC manual to save the data.
* Output file also reflects Filters explained in 3) as well as the display.
2) Delete Deletes selected Call Log.
3) Filter Filter the Call Log.
4) Display button Displays newer / older logs.
5) Start Time Communication starting time (UTC)
6) End Time Communication ending time (UTC)
7) Conn. Type Connection type (Voice/Audio/Standard/Streaming/SMS/UDI/RDI)
*UDI/RDI is not available for JUE-251.
8) Term. Used port
9) Dir. Communicated direction (Out(Outgoing)/In(Incoming))
*This column is blank for Standard/Streaming service.
10) Called No./APN Party’s address (if it is acquired)
(In the Standard/Streaming service, APN is displayed).

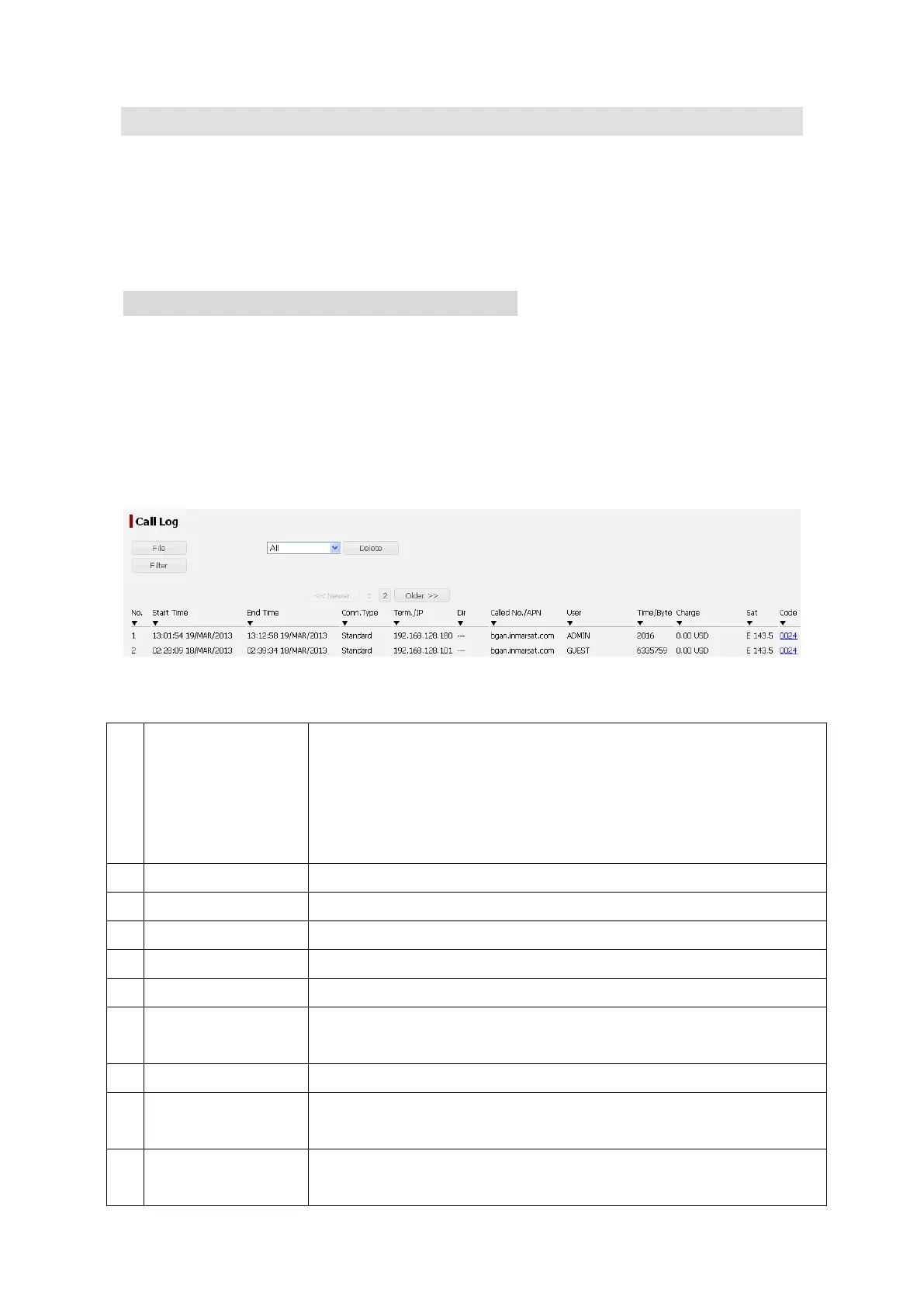

Fig. 6.4.5.1 Call Log Screen
Table 6.4.5.1 Contents of Call Log Screen
1)
2)
3)
4)
5)
6)
7)
8)
9)
10)
11)
12)
13)
14)
15)
