COMBINATION mode
402
X-Y CC Modes
+X [Off…MIDI CC#119]
This assigns the controller sent by the +X X-Y. You can use
this as an AMS source to control Program parameters, or as a
Dmod source to control Effects parameters. It will be grayed
out if the X-Y X Mode, above, is set to Negative.
In addition to the standard list of MIDI controllers, you can
also assign the +X X-Y to duplicate the function of several
front-panel controllers, including JS X, JS+X, JS-X, Knobs
1–6, and SW 1–2.
For instance, if you assign +X to Knob 6, the X-Y’s +X will
use the controller assigned to Knob 6 on the EQ/X-
Y/Controllers– Controllers page.
Finally, you can also assign +X to control the Master
Volume.
–X [Off…MIDI CC#119]
This assigns the controller sent by the –X X-Y. It will be
grayed out if the X-Y X Mode, above, is set to Positive.
The selections are the same as for +X, above.
X-Y Y Mode [Positive, Negative, Xfade, Split]
This controls the X-Y CC pattern for the Y axis. For more
information, see the description under X-Y X Mode, above.
+Y [Off…MIDI CC#119]
This assigns the controller sent by the +Y X-Y. It will be
grayed out if the X-Y Y Mode, above, is set to Negative.
The selections are the same as for +X, above.
–Y [Off…MIDI CC#119]
This assigns the controller sent by the +Y X-Y. It will be
grayed out if the X-Y Y Mode, above, is set to Positive.
The selections are the same as for +X, above.
Show Point [X-Y Control,
X-Y Envelope Point 0…4]
You can view the volume and CC values for the current
position of the X-Y Control, or for any of the EG’s five
points. This selects the point whose values will be shown.
CC at Show Point [%]
This read-only display shows the volume values for the
current X-Y point, as selected by the Show Point parameter,
above.
Timbre 01
Enable Combi X-Y CC [Off, On]
This controls whether or not the Timbre will receive the
Combi X-Y CCs.
If this is On, the Timbre will receive the CCs, and the
Timbre’s Program will respond to them according to its own
AMS settings.
If this is Off, the Timbre will not receive the CCs. This can
be useful if the Combi’s X-Y CCs are causing unwanted
modulation, or conflicting with the Program’s own X-Y
CCs.
Enable Program X-Y CC [Off, On]
This controls whether or not the Program’s own X-Y CCs
will be active.
If this is On, the Program’s X-Y CCs and X-Y Envelope will
work as AMS sources, just as they did in PROGRAM mode.
The CCs will not affect any other Timbres, even if they are
set to the same MIDI channel.
Note that. in some cases, the X-Y CCs may have been used
for modulating the Program’s effects via Dmod. This
functionality is not carried into the Combi; for modulating
the Combi effects, use the Combi’s X-Y CCs instead.
If Enable Program X-Y CC is Off, then the Program’s X-Y
CCs will have no effect. This can be useful if they are
conflicting with the Combi’s X-Y CCs.
Timbres 02–16
The settings for Timbres 2–16 are identical to those for
Timbre 01, as described above.
v 1–6: Page Menu Commands
• Compare →p.112
• Write Combination →p.433
• Exclusive Solo →p.113
• Copy From Program →p.433
• PAGE →p.126
•MODE →p.126

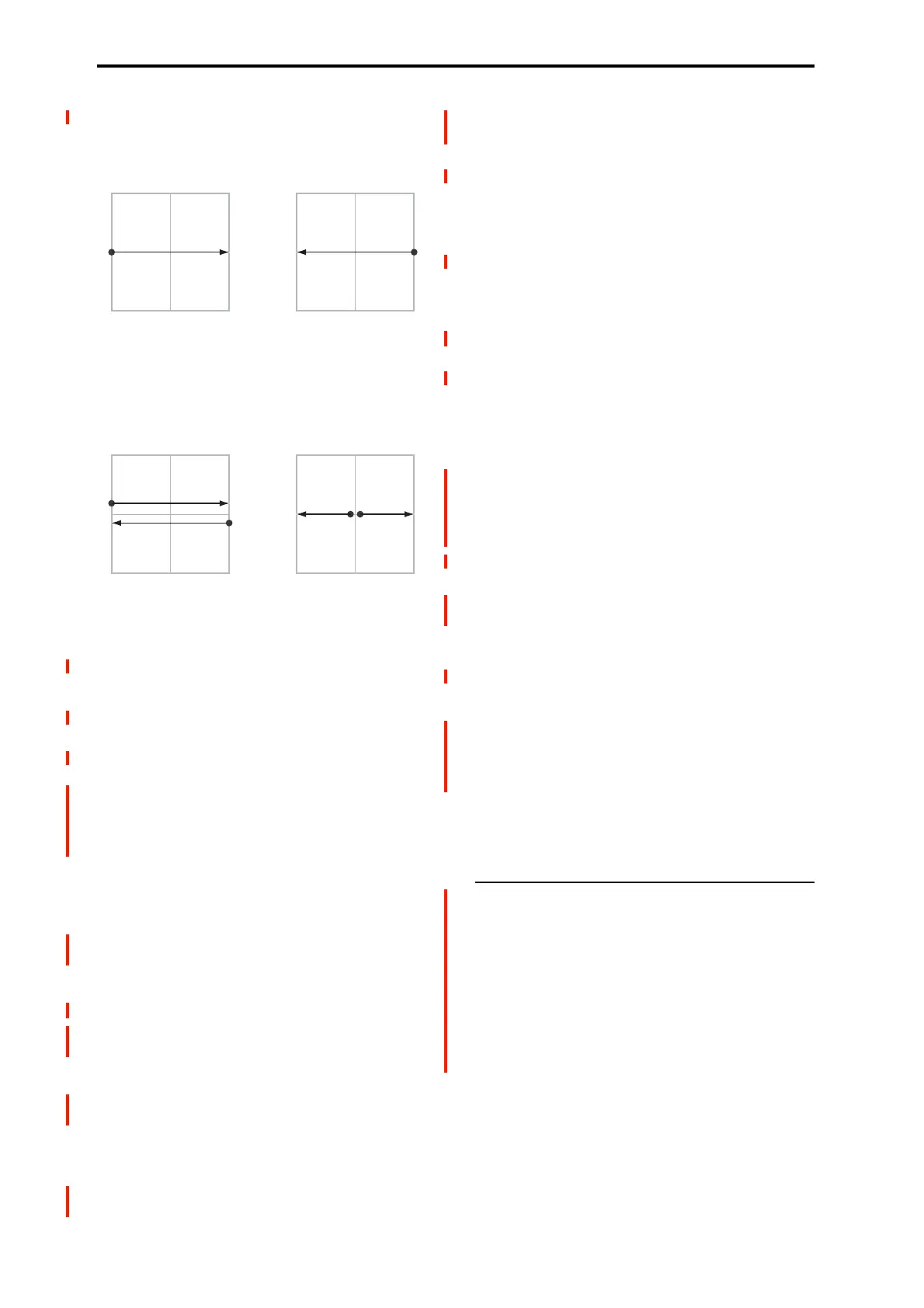

+127–127
X-Axis
0
Positive
+X CC0 127
+127–127
X-Axis
0
Negative
–X CC127 0
+127–127
X-Axis
0
Xfade
+X CC0 127
–X CC0 127
+127–127
X-Axis
0
Split
+X CC
0 127
–X CC
127 0
Generates only +X,
increasing from left to right.
Generates both +X and –X.
One increases as the other
decreases.
Generates both +X and -X.
Both are 0 in the center.
+X increases to the right;
–X increases to the left.
Generates only –X,
increasing from right to left.
