SET LIST > Home 0–1: Play
563

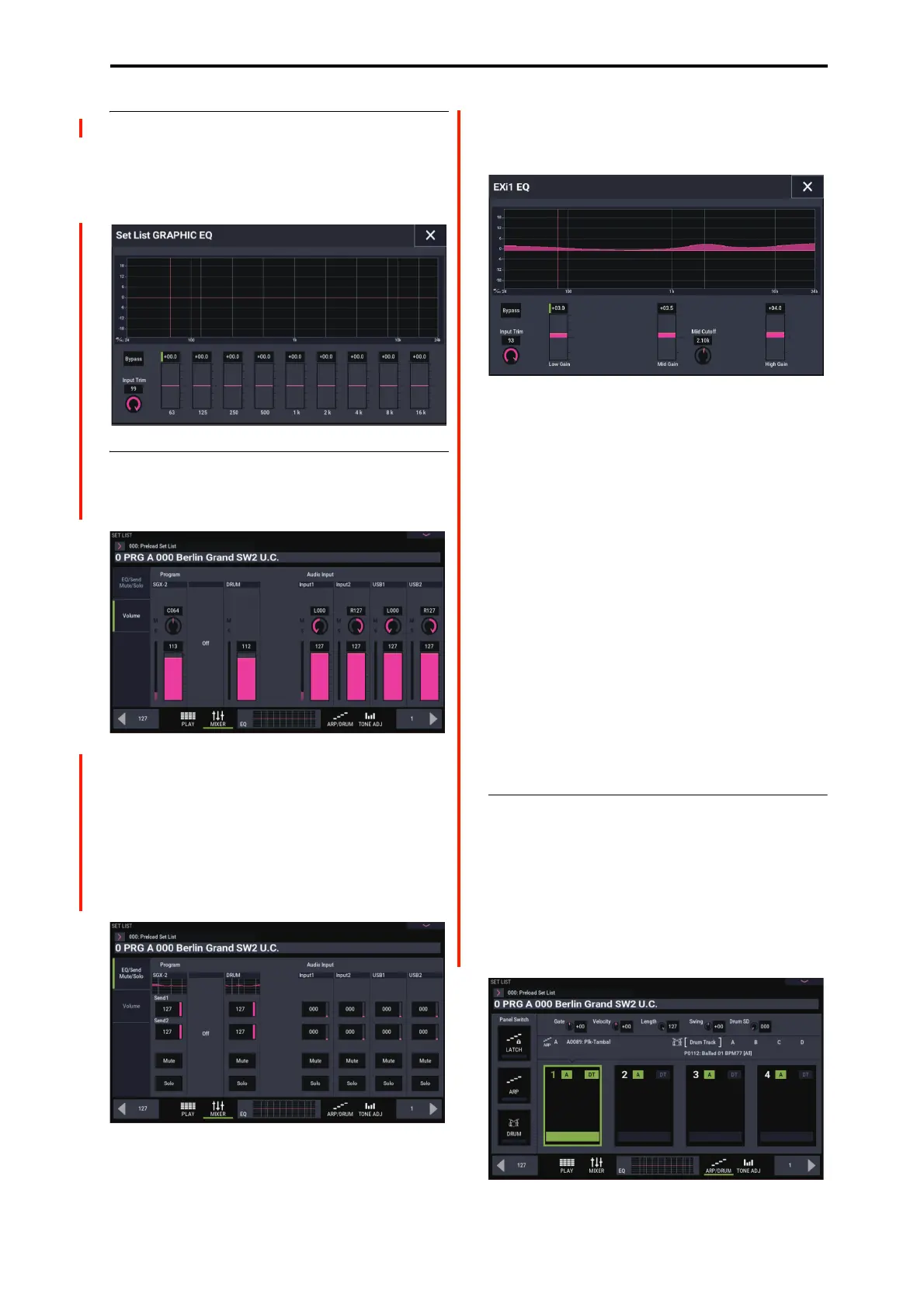

0–1e: GRAPHIC EQ
The graphic at the bottom of the page shows the frequency
curve created by the Set List EQ, along with whether or not
the EQ is bypassed. Touch the graphic to jump directly to the
Set List GRAPHIC EQ dialog.
0–1f: MIXER
The mixer is used to adjust the balance between sounds of
the Set List Slot in use.
Volume
When the sound of the selected slot is a Program
The OSC (EXi) of the selected Program, the drum track
balance and audio input settings are shown.
The mixer is used to adjust the balance between sounds of
the Set List Slot in use.
EQ/Send/Mute/Solo
Program
EQ: Displays the OSC (EXi) and drum track EQ. Press this
to display a larger screen for making adjustments.
Note: The EQ shown in OSC (EXi) is a 3-band EQ for the
Program, and has the same parameters as 1 and 2 (EXi1,2).
You can adjust the 3-band EQ that is exclusively used by the
drum track.
Note: There is no EQ for the audio input.
Send: Adjusts the send levels for the OSC (EXi), drum track
and audio input. When using an IFX such as OSC (EXi) for
the Program, this adjusts the send level for the IFX.
Mute, Solo: Controls the mute and solo status for the OSC
(EXi), drum track and audio input.
Audio Input
Adjusts the audio input.
When the sound of the selected slot is a
Combination or Song
This is basically the same as the Mixer features in
COMBINATION > Home and in SEQUENCER > Home.
Use the Edit Combination (Song) command (→PMC) when
changing the Timbre (Track) Program inside of a set list.
EQ: This lets you view and adjust the timbre (track) EQ.
0–1g: ARP/DRUM
This turns the arpeggiator and/or drum track/step sequence
for the selected Program or Combination on and off.
This works the same as the ARP DRUM page for each
mode.
For more information, see “ARP DRUM page” p.15, p.390,
p.460.
Note: You cannot change the scene settings from this page.
