Effect Guide
742
Drum Programs in COMBINATION and
SEQUENCER modes
If a drum program (Oscillator Mode = Drums) is selected
for a timbre (Combination) or track (Sequencer), the DKit
check box is available (Fig. 2–2c).
Checking this check box will enable the Bus Select settings
etc. of each key in the drum kit, letting you specify the bus to
which each drum instrument will be sent. For example you
can send snare sounds to IFX1, kick sounds to IFX2, and
other drum sounds to L/MONO and R.
If this check box is unchecked, all drum instruments will be
output according to the Bus Select setting of each
timbre/track (IFX– Routing page of each mode). This lets
you apply an insert effect to all of the drum instruments in
that drum kit.
Drum Kit IFX Patch
If “Bus Select DKit” is checked, you can select the Drum
Kit IFX Patch page menu command by selecting a timbre
parameter or by pressing Timbre Number (the blue area in
the display for each timbre).
This option allows you to change the routing of the Insert
Effects temporarily by changing Bus Select for each key.
For example, assume that the DrumKit key assignment is set
so that a snare sound is routed to IFX1 and a kick sound is
routed to IFX2 etc., IFX1–5. In this case, if you wish to
assign IFX 1 and 2 to the Programs used by other timbres
and tracks, you can view the routing so that these DrumKit
sounds are routed to IFX3 and IFX7 respectively.
Patching is possible only if the Bus Select (GLOBAL 5–3b)
setting of each key in the drum kit is assigned to an insert
effect. The state of these settings is also shown in the
Routing Map. Make the desired settings for “DrumKit IFX
Patch,” and press the OK button to execute.
If you want to revert to the original settings of the drum kit,
execute Drum Kit IFX Patch with the settings IFX1 →
IFX1, IFX2 → IFX2, IFX3 → IFX3, IFX4 → IFX4, IFX5
→ IFX5, IFX6 → IFX6, IFX7 → IFX7, IFX8 → IFX8,
IFX9 → IFX9, IFX10 → IFX10, IFX11 → IFX11, and
IFX12 → IFX12. You can also revert to the original settings
by pressing the RESET button.
In diagram (Fig. 2–2c) below, Drum Program is assigned to
Timbre 1, and normal Programs are assigned to Timbres 2
and 3. Bus Select is set to DKit for Timbre 1, IFX1 for
Timbre 2, and IFX2 for Timbre 3. With Timbre 1, the Bus
Select (GLOBAL 5–2b) for DrumKit setting becomes
effective.

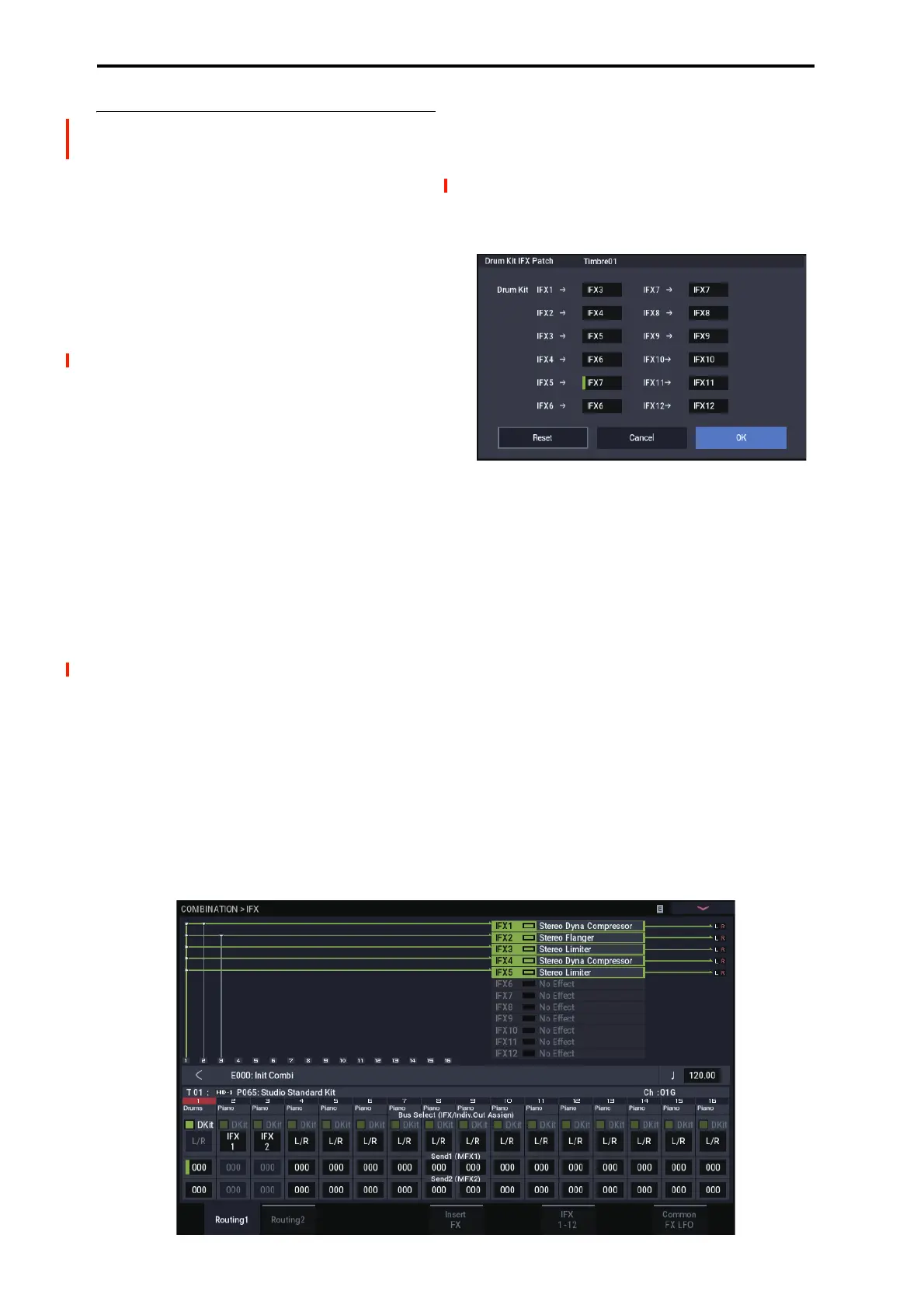

Fig. 2–2d: DrumKit IFX Patch
dialog
Use the Drum Kit IFX Patch page menu command if you
want the drum program to use effects other than timbres 2
and 3. Choose Drum Kit IFX Patch from the page menu,
and temporarily send the drum kit IFX1 to IFX3, IFX2 to
IFX4, IFX3 to IFX5, IFX4 to IFX6, and IFX5 to IFX7 (Fig.
2–2d). Executing with these settings will temporarily change
the effects to which the drum kit is being sent (Fig. 2–2e).
