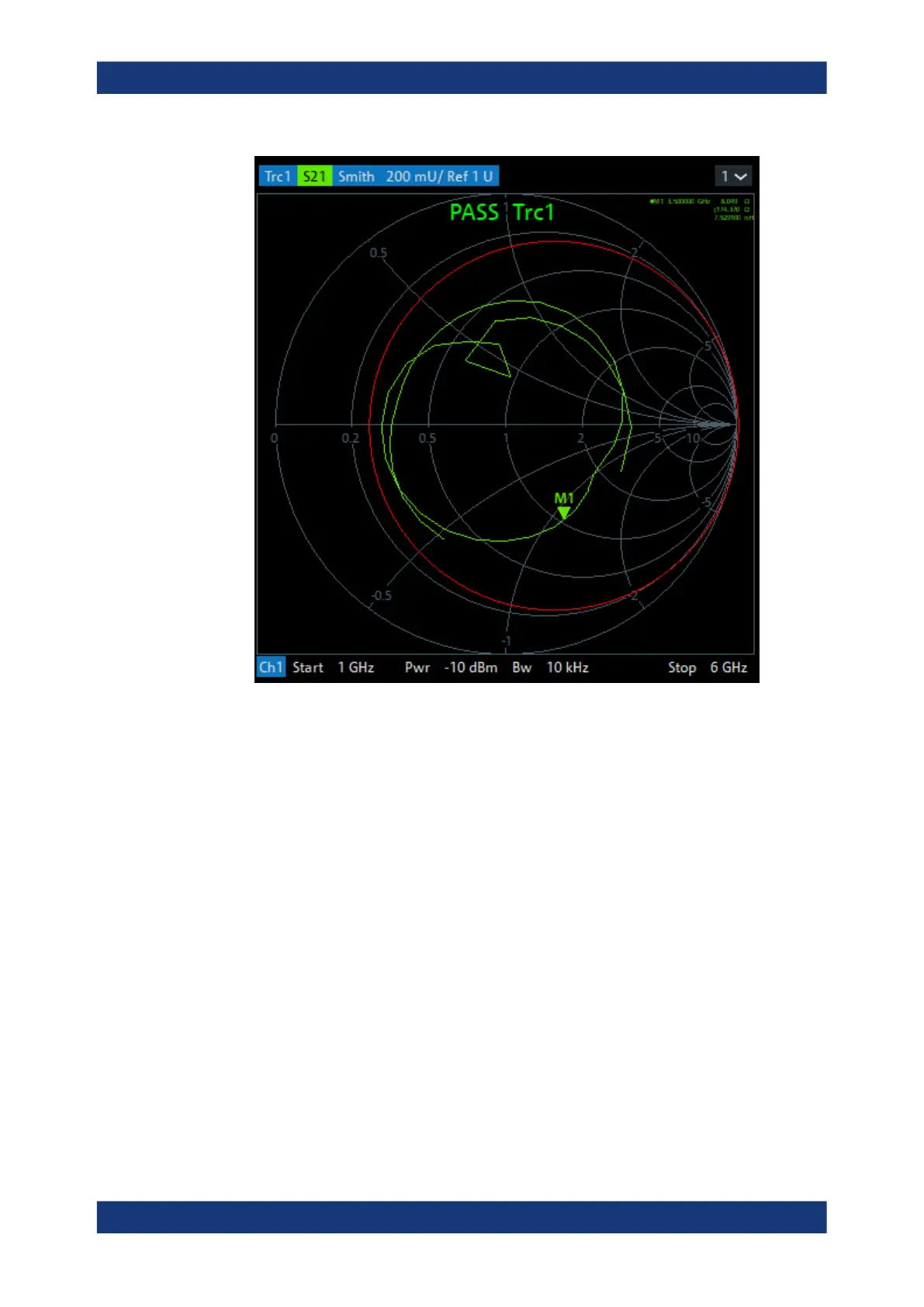

With a circle limit line centered on the left border of an inverted Smith diagram (Y =
infinity), you can check whether the imaginary part of the admittance (Im(Y), sus-
ceptance) falls below a limit.
