Concepts and Features
R&S
®
ZNB/ZNBT
229User Manual 1173.9163.02 ─ 55

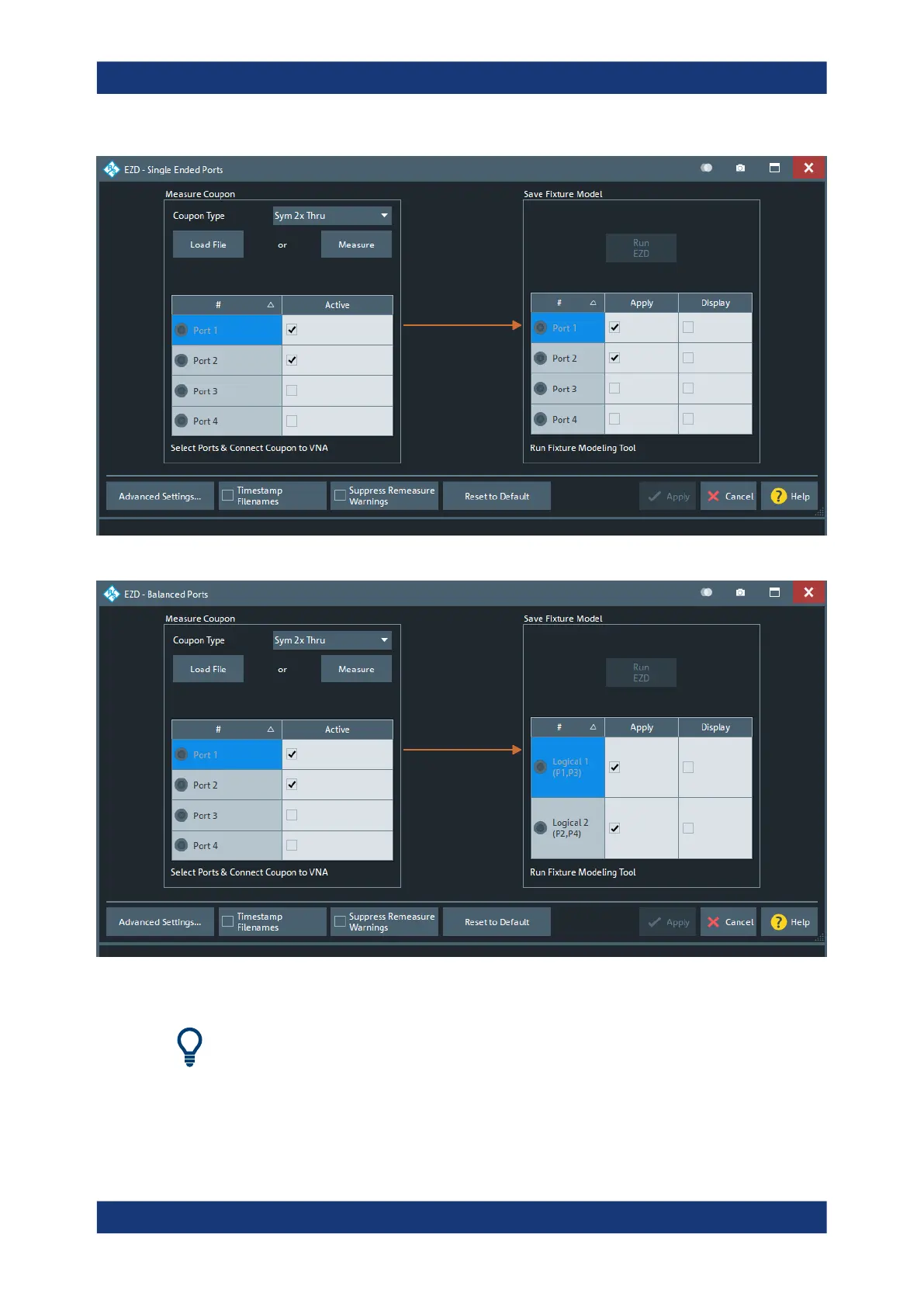

Figure 5-20: Fixture modeling: EZD – Single Ended Ports dialog
Figure 5-21: Fixture modeling: EZD – Balanced Ports dialog
●
For general information about fixture de-embedding, see Chapter 5.6.2.9, "Fixture
Modeling and Deembedding", on page 196.
●
Option R&S ZNB/ZNBT-K210 can be ordered with a new instrument or retrofitted at
Rohde&Schwarz service.
Optional Extensions and Accessories
