R&S ZNB - Page 254

GUI Reference
R&S
®
ZNB/ZNBT
254User Manual 1173.9163.02 ─ 55

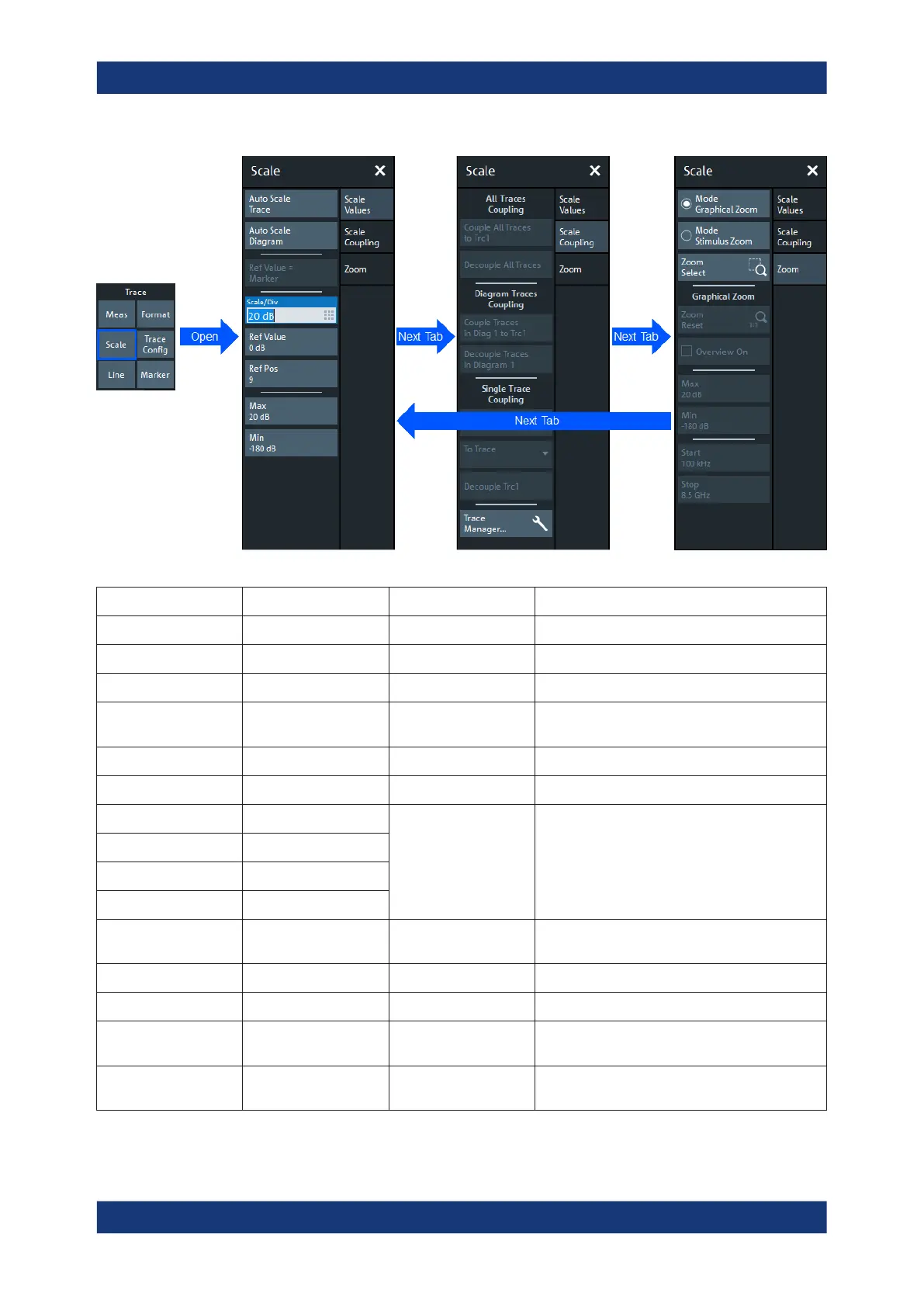

Table 6-1: Function keys and softtools
(Virtual) Hardkey Keyboard Shortcut Related Softtool Action
TRACE – [MEAS] Alt + Shift + A Meas Softtool default
TRACE – [FORMAT] Alt + Shift + B Format Softtool default
TRACE – [SCALE] Alt + Shift + C Scale Softtool default
TRACE –
[TRACE CONFIG]
Alt + Shift + D Trace Config Softtool default
TRACE – [LINE] Alt + Shift + E Lines Softtool default
TRACE – [MARKER] Alt + Shift + G Marker Softtool default
STIMULUS – [START] Alt + Shift + J Stimulus Softtool Selects an input field corresponding to the start,
stop, center or span of the active channel's current
sweep type.
Activates the corresponding tab on the "Stimulus"
softtool.
STIMULUS – [STOP] Alt + Shift + K
STIMULUS – [CENTER] Alt + Shift + F
STIMULUS – [SPAN] Alt + Shift + H
CHANNEL –
[PWR BW AVG]
Alt + Shift + L Power Bw Avg Softtool default
CHANNEL – [SWEEP] Alt + Shift + M Sweep Softtool default
CHANNEL – [CAL] Alt + Shift + P Cal Softtool default
CHANNEL – [CHAN-
NEL CONFIG]
Alt + Shift + O Channel Config Softtool default
CHANNEL – [TRIG-
GER]
Alt + Shift + R "Trigger" softtool opens the Trigger Tab
Function Keys and Softtools
