4. Open the "Control Panel" > "Network and Sharing Center" > "Change adapter set-
tings" dialog and right-click the local connection.
Windows 7: open the "Control Panel" > "Network and Internet" > "Network and
Sharing Center" > "Local Area Connection Status" dialog.
5. Select "Properties" and confirm the user account control message, depending on
your current user account.
● If your current account is an administrator account, select "Yes".
● If your account is an account with standard user rights, enter the password of
the administrator account and select "Yes".

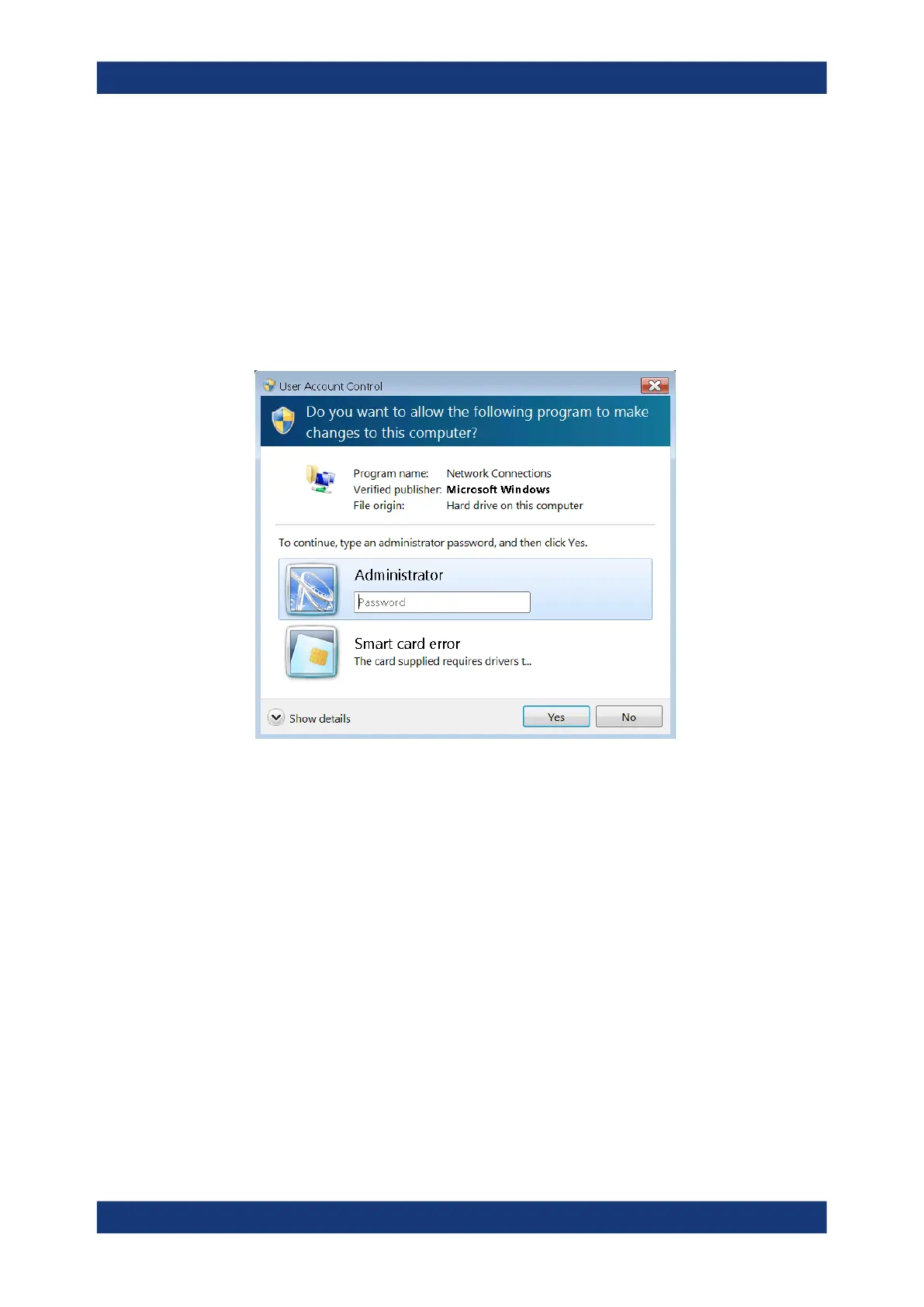

Figure 4-1: Windows 7 User Account Control dialog
6. In the "Connection Properties" dialog opened, select "Internet Protocol Version 4
(TCP/IPv4) > Properties" and enter the IP address information.
