GUI Reference
R&S
®
ZNB/ZNBT
417User Manual 1173.9163.02 ─ 55

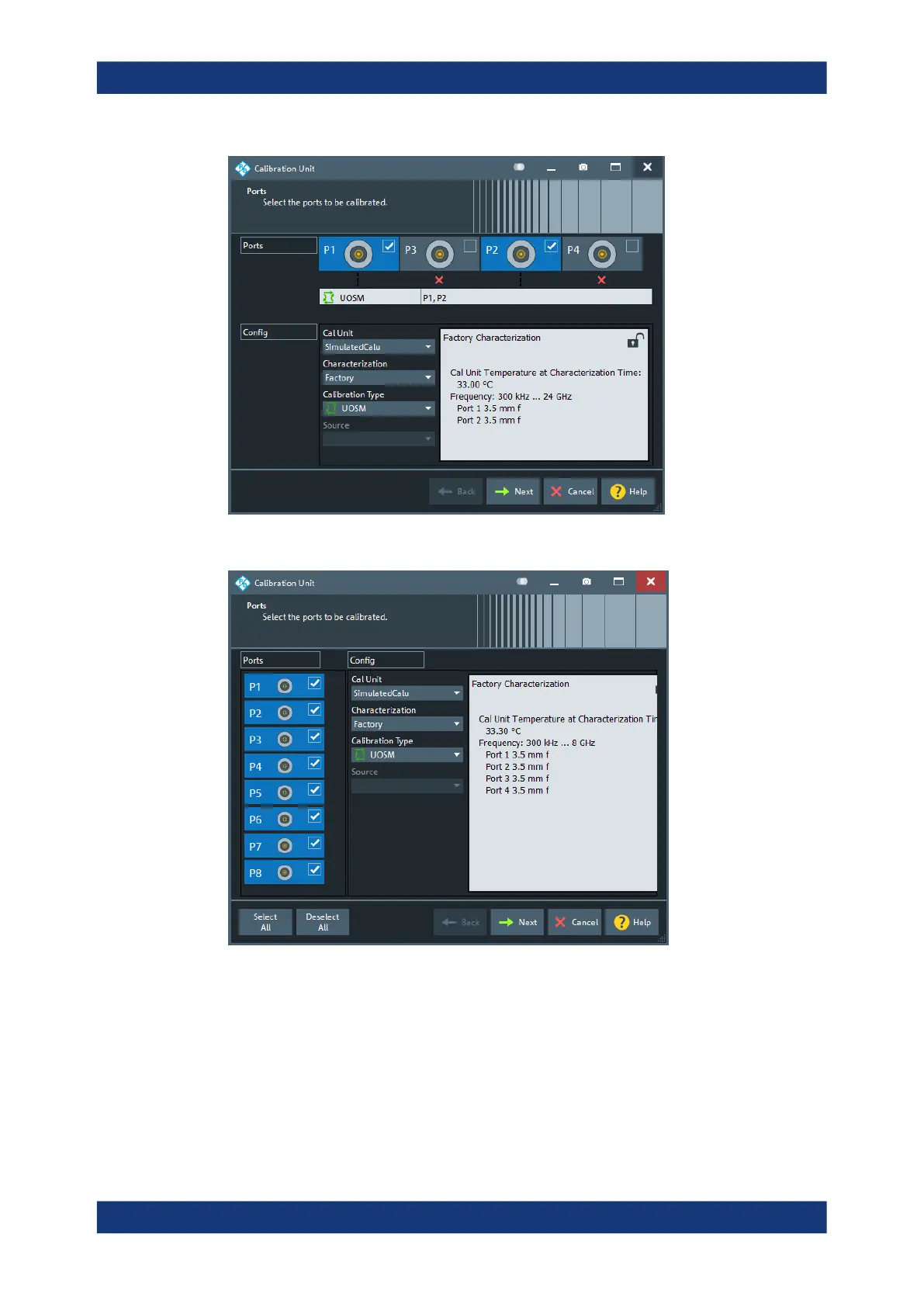

Figure 6-10: Calibration Unit wizard, step 1: Ports
Figure 6-11: Calibration Unit wizard, step 1: Ports (> 4 test ports)
Ports
Selects the test ports to be calibrated.
Note: Calibration and port de-/activation.
The way the analyzer fimware activates/deactivates ports after a successfull calibration
(system error correction or power calibration) has slightly changed:
●
In all FW releases, calibrated ports that were previously disabled, are automatically
enabled as single-ended logical ports.
