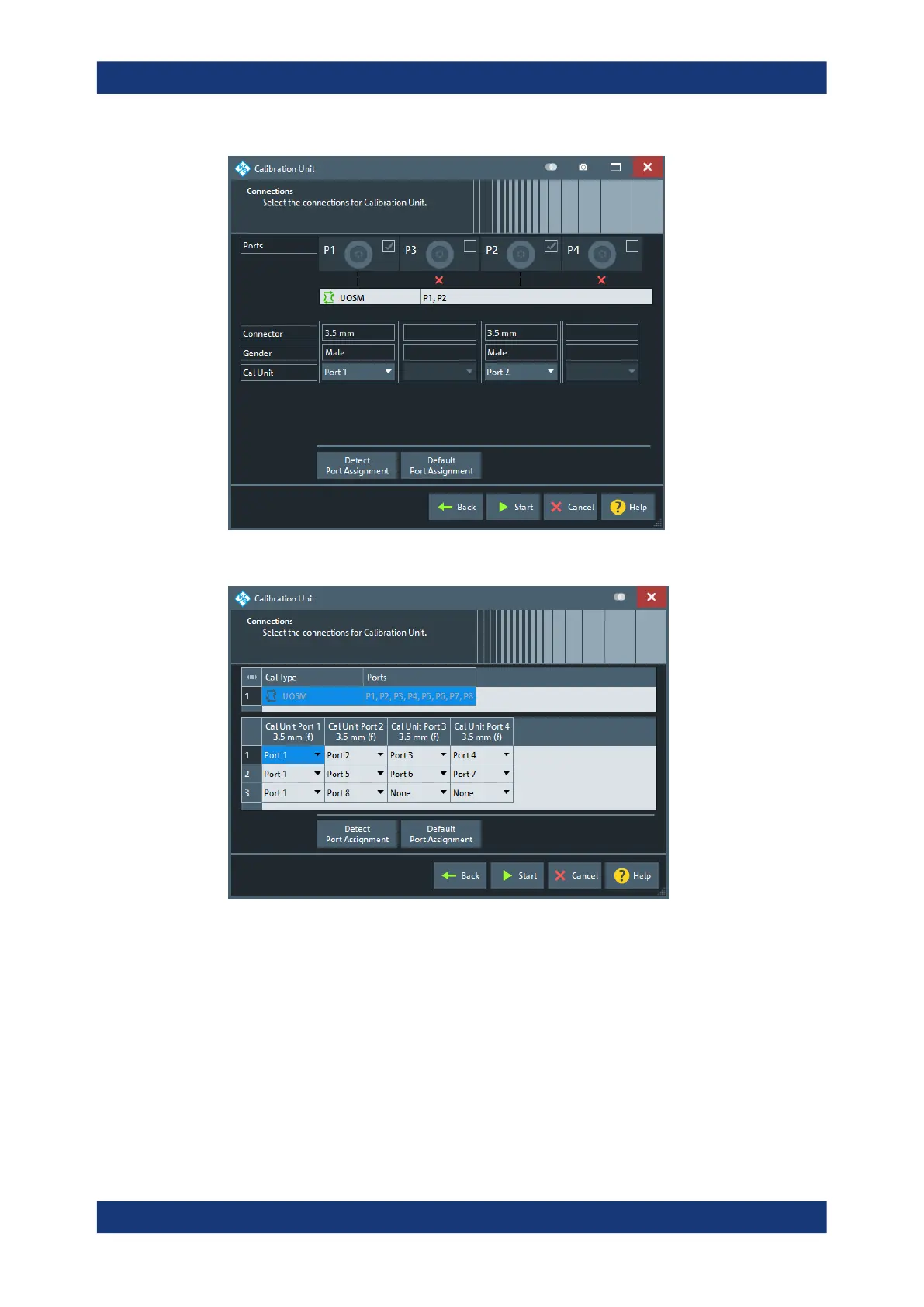

Figure 6-12: Calibration Unit wizard, step 2: Connections
Figure 6-13: Calibration Unit wizard, step 2: Connections (>4 test ports and multiple port assign-
ments)
If multiple port assignments are required and "Use Reduced Number of Through"
on page 701 is enabled, make sure that each port assignment contains the Common
Port.
Port Assignment (manual)
The "Connections" step allows you to configure the assignments between VNA ports
and calibration unit ports manually.
Cal Softtool
To Next Page
