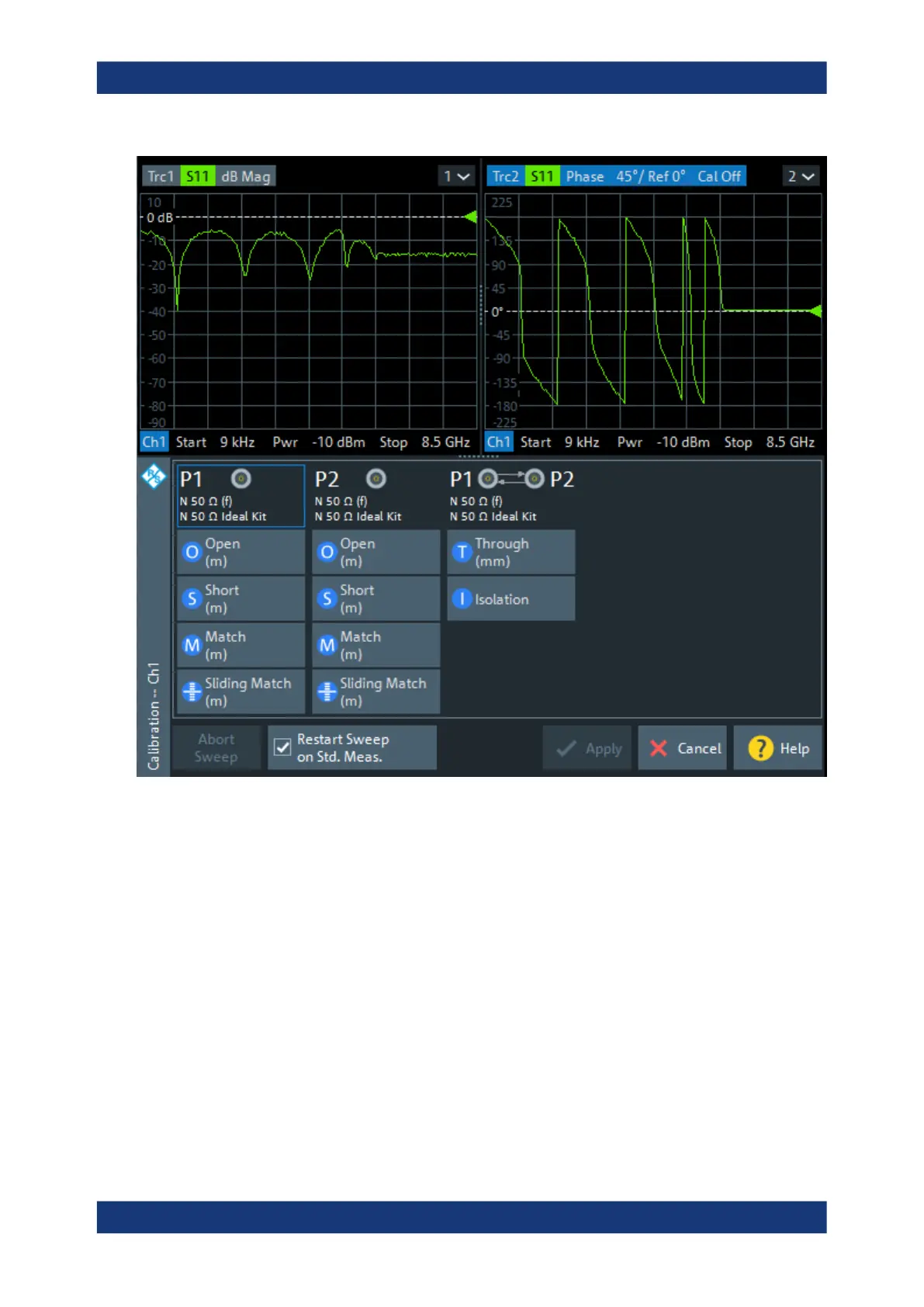

Figure 6-20: Calibration Setting Wizard, Step 3: Calibration
In the upper part of the "Calibration" screen, the R&S ZNB/ZNBT shows the sweep dia-
grams for the currently measured S-parameter. The lower part displays the calibrated
ports and standards and visualizes the measurement progress.
Calibration Sweep Diagrams
During the calibration sweep, each diagram contains a single S-parameter trace and a
typical result trace for the measured calibration standard.
If switch matrices are involved, a sweep is performed for every possible signal path
and for each of these paths a separate S-parameter trace is shown (see Chap-
ter 5.7.27.5, "Multiple Paths and Calibration", on page 251).
