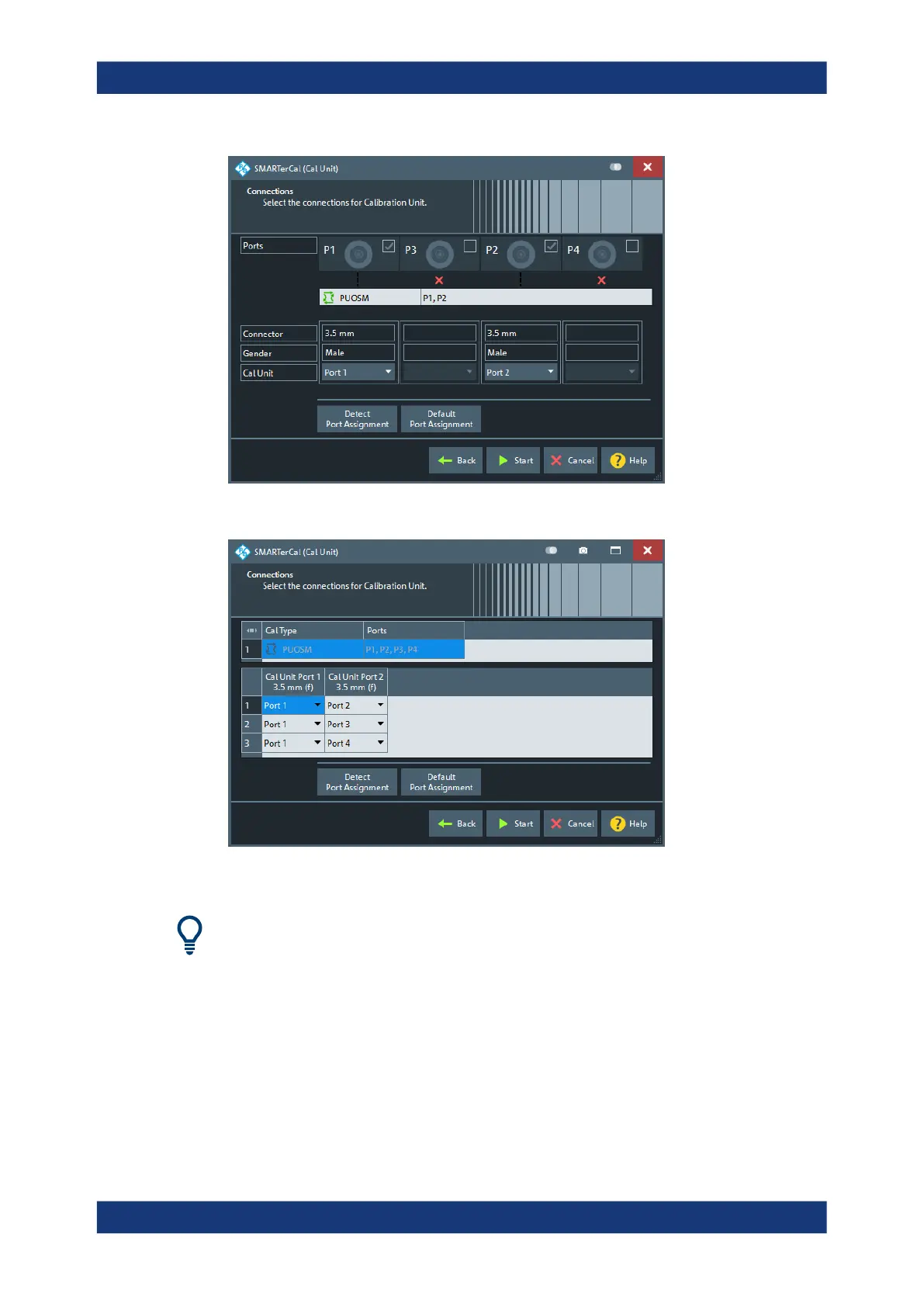

Figure 6-25: SMARTerCal (Cal Unit), Step 2: Connections (single)
Figure 6-26: SMARTerCal (Cal Unit), Step 2: Connections
Related information
Refer to Chapter 5.5.5.4, "Multiple Port Assignments", on page 171 for details on multi-
ple port assignments.
Port Assignment (manual)
The "Connections" step allows you to configure the assignments between VNA ports
and calibration unit ports manually.
The R&S ZNB/ZNBT always proposes an optimum solution (minimum number of
assignments) that also minimizes the physical port reconnections required between
calibration stages. For user-modified assignments, it provides assistive information
indicating insufficient, or redundant entries.
