Access: Overview Panel > "Offset"

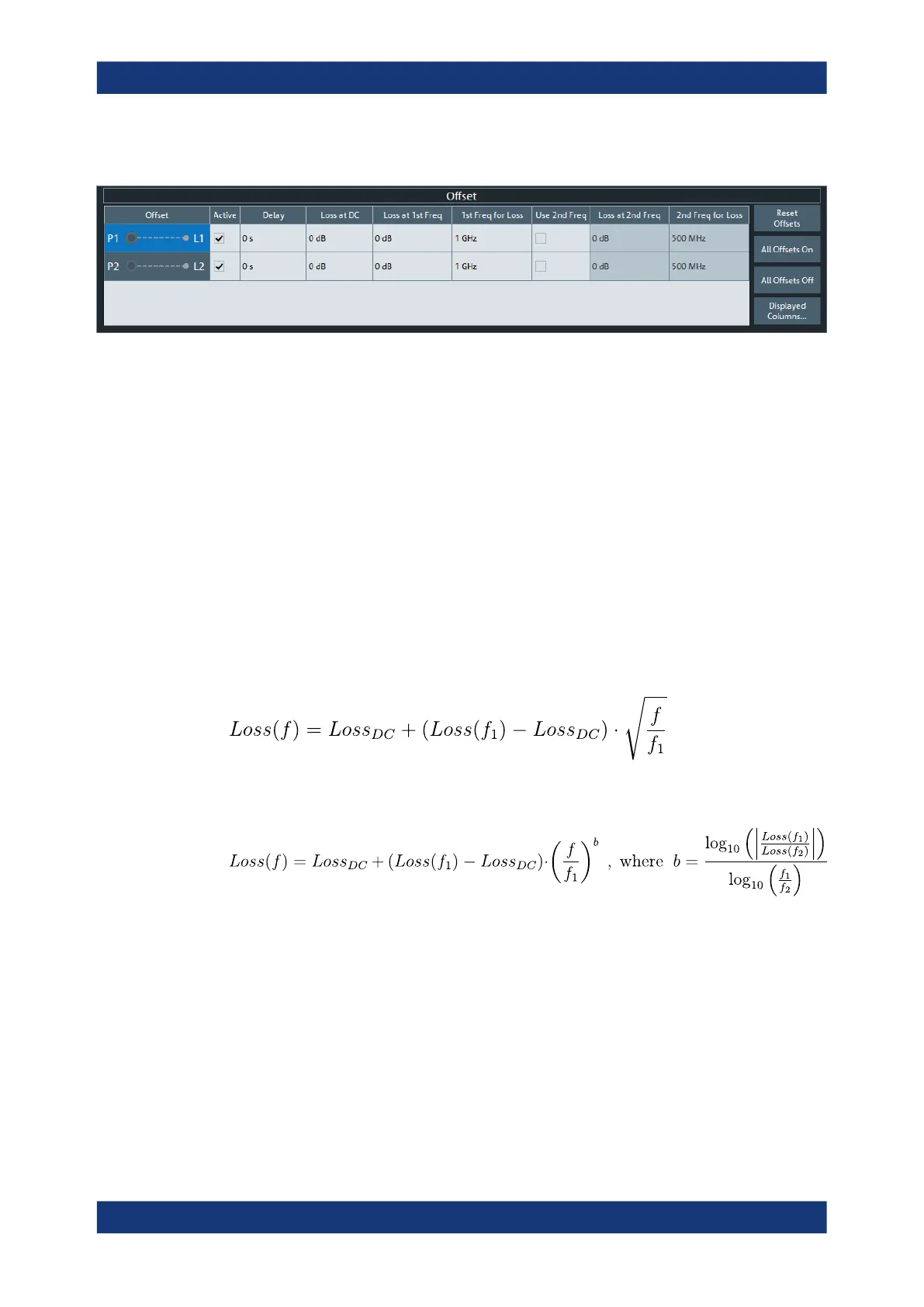

Figure 6-47: Offset Embed dock widget: Offset panel
The "Offset" panel can also be activated by selecting the Offset Tab or One Way Loss
Tab. Refer to its description for additional functions and remote commands.
Active
The checkbox in the "Active" column activates/deactivates the configured length and
loss parameters for the respective Port (i.e. adds/removes them to/from the calculation
flow) without changing the parameter values.
Remote command:
[SENSe<Ch>:]CORRection:OFFSet<PhyPt>:COMPensation[:STATe]
Loss at DC / Loss at 1st Freq / 1st Freq for Loss / Use 2nd Freq / Loss at 2nd
Freq / 2nd Freq for Loss
Defines the one-way loss parameters of the transmission line at the selected port.
If the loss at DC and one additional frequency f
1
is known, the loss at frequency f is
approximated by:
If, in addition, the loss at a second frequency f
2
is known and "Use 2nd Freq" is
enabled, then the loss is approximated by:
See also Chapter 5.6.1.2, "Definition of Loss Parameters ", on page 183.
Note: The entered parameters define the loss for a signal traveling in one direction
through the transmission line. To account for the propagation in both directions, the
magnitude shift of a reflection parameter due to a given loss is twice the magnitude
shift of a transmission parameter. See also Chapter 5.6.1.6, "Application and Effect of
Offset Parameters ", on page 187.
Remote command:
[SENSe<Ch>:]CORRection:LOSS<PhyPt>:OFFSet
[SENSe<Ch>:]CORRection:LOSS<PhyPt>
[SENSe<Ch>:]CORRection:LOSS<PhyPt>:FREQuency
[SENSe<Ch>:]CORRection:LOSS<PhyPt>:SECond:STATe
