For "Direct Compensation", it is also possible to save the acquired data to file. In future
measurements, you can load these files instead of repeating the data acquisition.

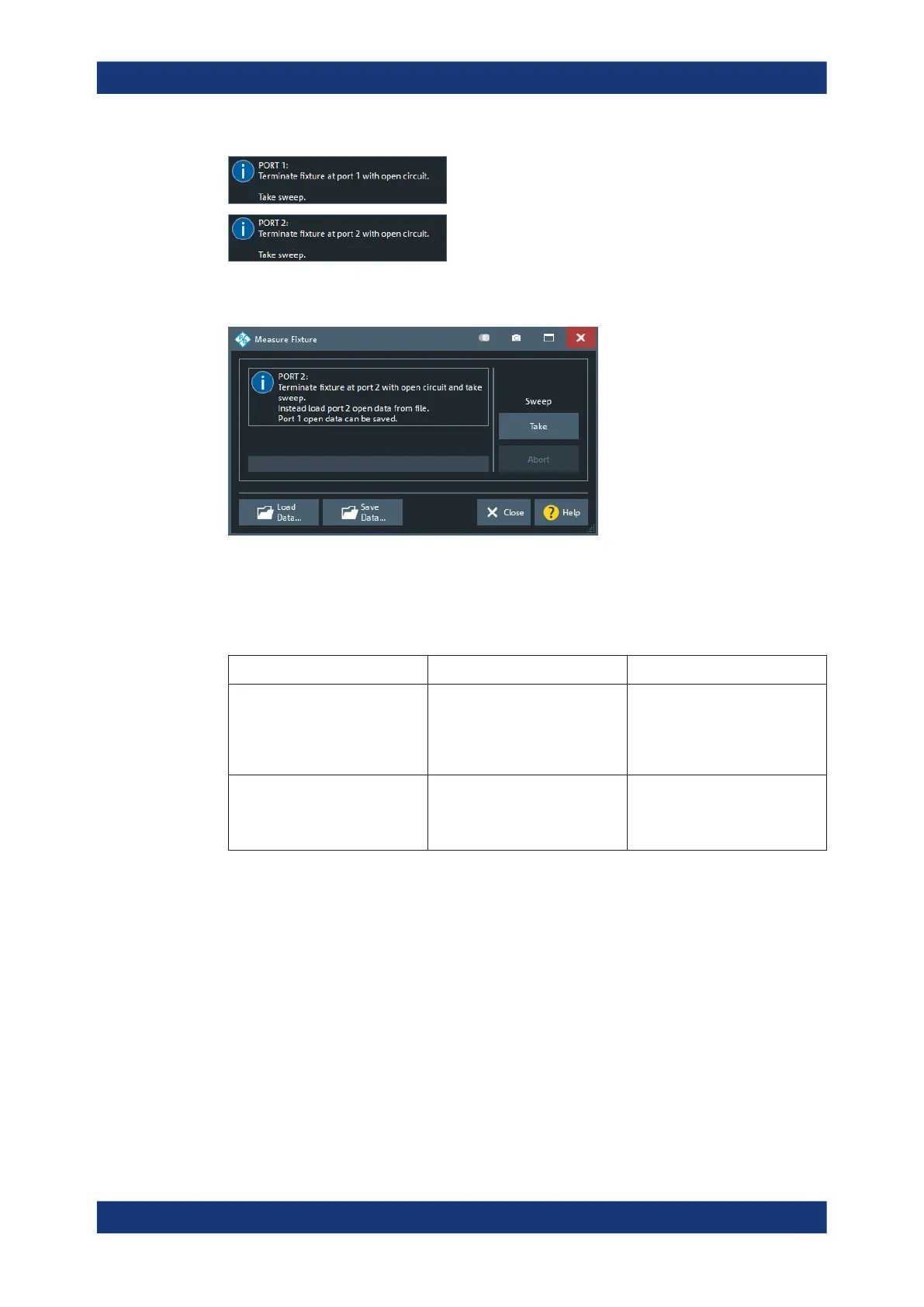

Figure 6-50: Measure Fixture dialog: Direct Compensation (and Prompt for Each Port)
"Direct Compensation" data files are standard trace files, containing reflection parame-
ter traces for the related port and standard:
Table 6-4: Direct Compensation data
Prompt for Each Port File Type Description
disabled csv One csv trace file per standard,
containing reflection traces for all
selected ports; see Chap-
ter 5.4.2.2, "ASCII (*.csv) Files",
on page 144
enabled s1p One 1-port Touchstone file per
standard and port (see Chap-
ter 5.4.2.1, "Touchstone Files",
on page 141)
Tip: Remote control provides additional flexibility. You can:
●
Measure the same ports repeatedly without changing the standards and attribute
the results to different channels.
●
Calculate the compensation data for different ports, using mixed Open and Short
standards.
Refer to the program example for [SENSe<Ch>:]CORRection:COLLect:
FIXTure[:ACQuire].
Remote command:
[SENSe<Ch>:]CORRection:COLLect:FIXTure:STARt
[SENSe<Ch>:]CORRection:COLLect:FIXTure[:ACQuire]
[SENSe<Ch>:]CORRection:COLLect:FIXTure:SAVE
[SENSe<Ch>:]CORRection:COLLect:FIXTure:EXPort
[SENSe<Ch>:]CORRection:COLLect:FIXTure:IMPort
