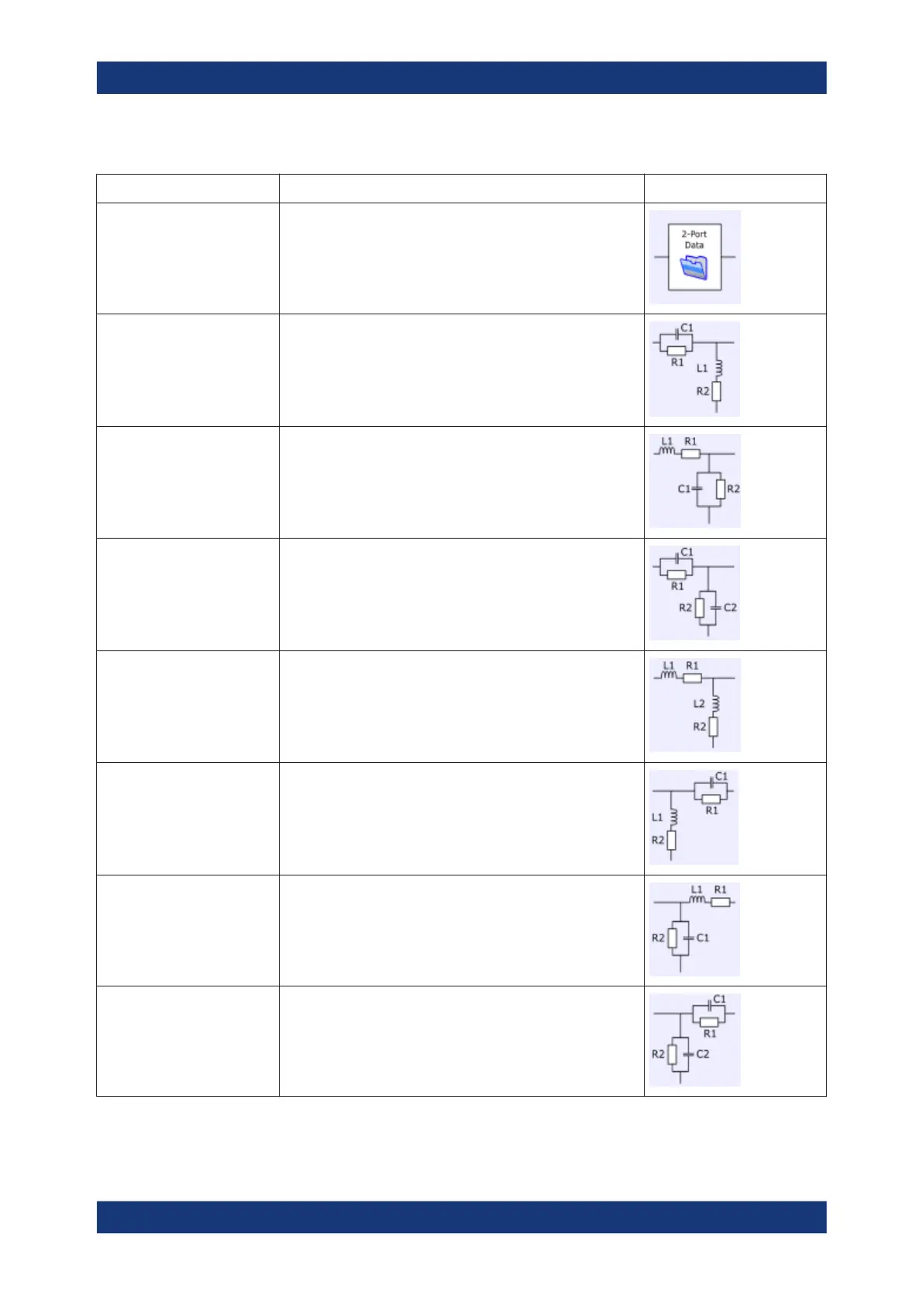

Table 8-7: Circuit models for single ended port embedding/deembedding
Parameter Circuit model Pictogram
FIMPort File import, generic 2-port (no circuit model)
CSL Serial C, shunt L
LSC Serial L, shunt C
CSC Serial C, shunt C
LSL Serial L, shunt L
SLC Shunt L, serial C
SCL Shunt C, serial L
SCC Shunt C, serial C
