REPLACEMENT AND ADJUSTMENT
SM 21 B830
Finisher
B830
1.6.2
DRAG ROLLER/DRAG DRIV
E MOTORS, DRAG DRIVE HP
SENSOR
Remove:
•
Front door and all covers, except
the left lower cover, top cover (
1.1)
NOTE:
Be sure to lower the shift tray by
pulling the gear toward you. The shift
tray must be down.

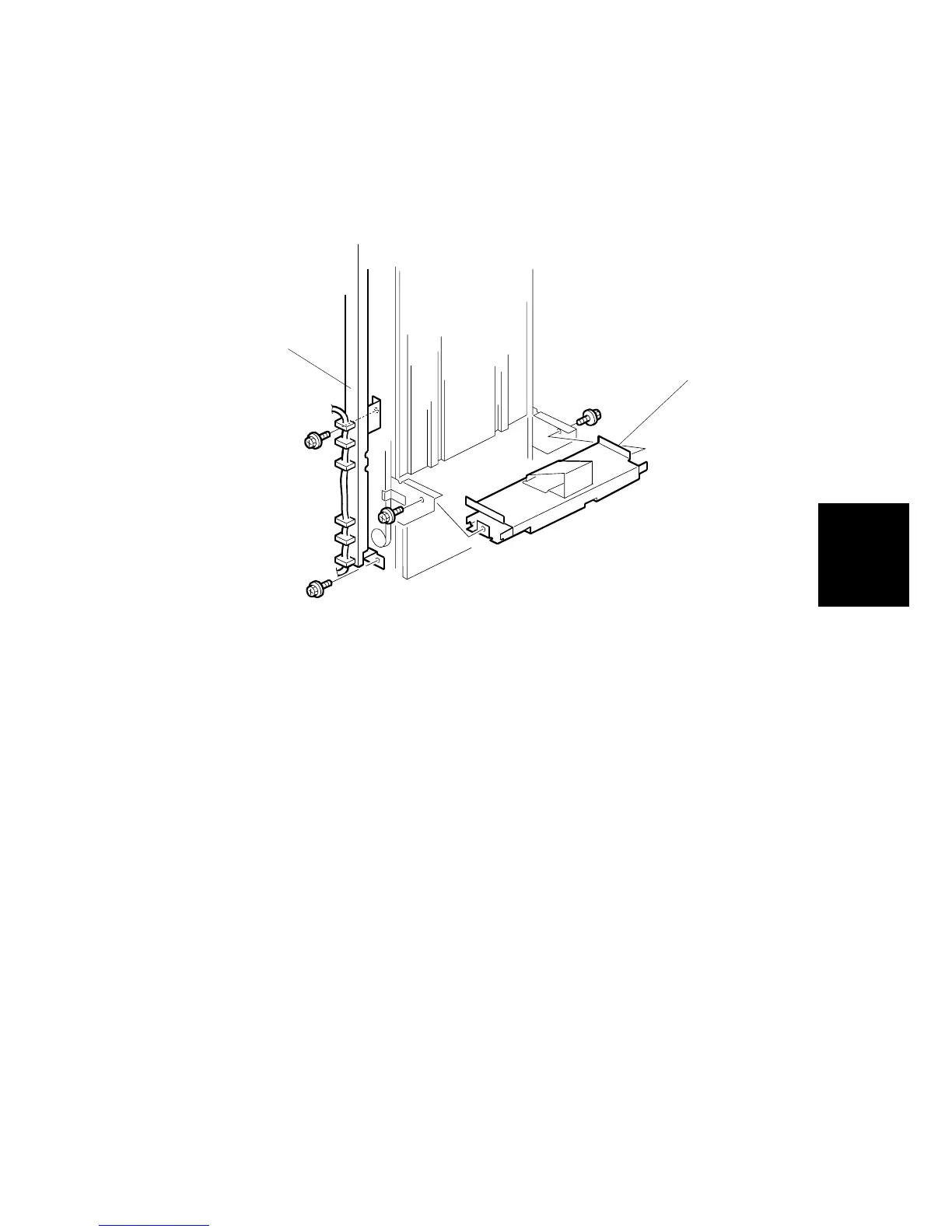

1.
Remove the left stay [A] (
x 2)
2.
Remove the shift tray mounting plate [B] (
x 2).
B830R526.W
MF
[A]
[B]
1035
1037
