Ricoh B234 - Uneven Folding Adjustment; Overview

REPLACEMENT AND ADJUSTMENT
SM 13 B660
Z-Folding Unit
B660
1.13 UNEVEN FOLDING ADJUSTMENT
1.13.1 OVERVIEW
This procedure describes how to correct uneven folding (D) in paper folded with the
Z-Fold unit. Before doing this procedure, please note the names and positions of
the 1st and 2nd Fold.
Section 3.2.2 provides a full description of how Z-folding is done.

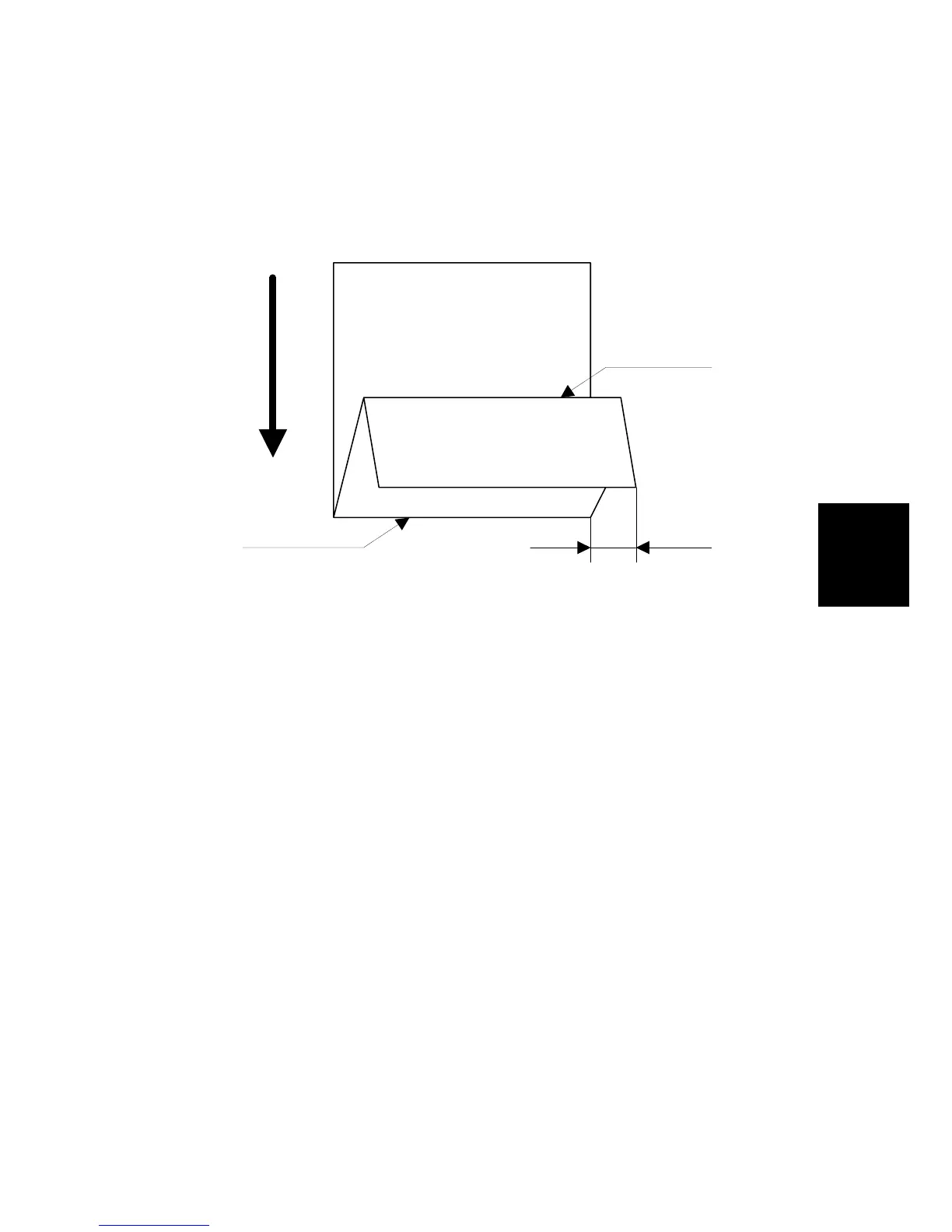

B660R200.WMF
Printed Side (1 Side)
1st Fold
2nd Fold
D
