CONNECTION KIT B328
B234/B235/B236/D101/D102/D103 1-158 SM
1.16.5 INSTALLATION PROCEDURE
CAUTION
Before you start this procedure, switch the machine off and unplug the
machine power cord.
1. Switch the main power switch off.
2. Remove the controller box cover. ( x8)

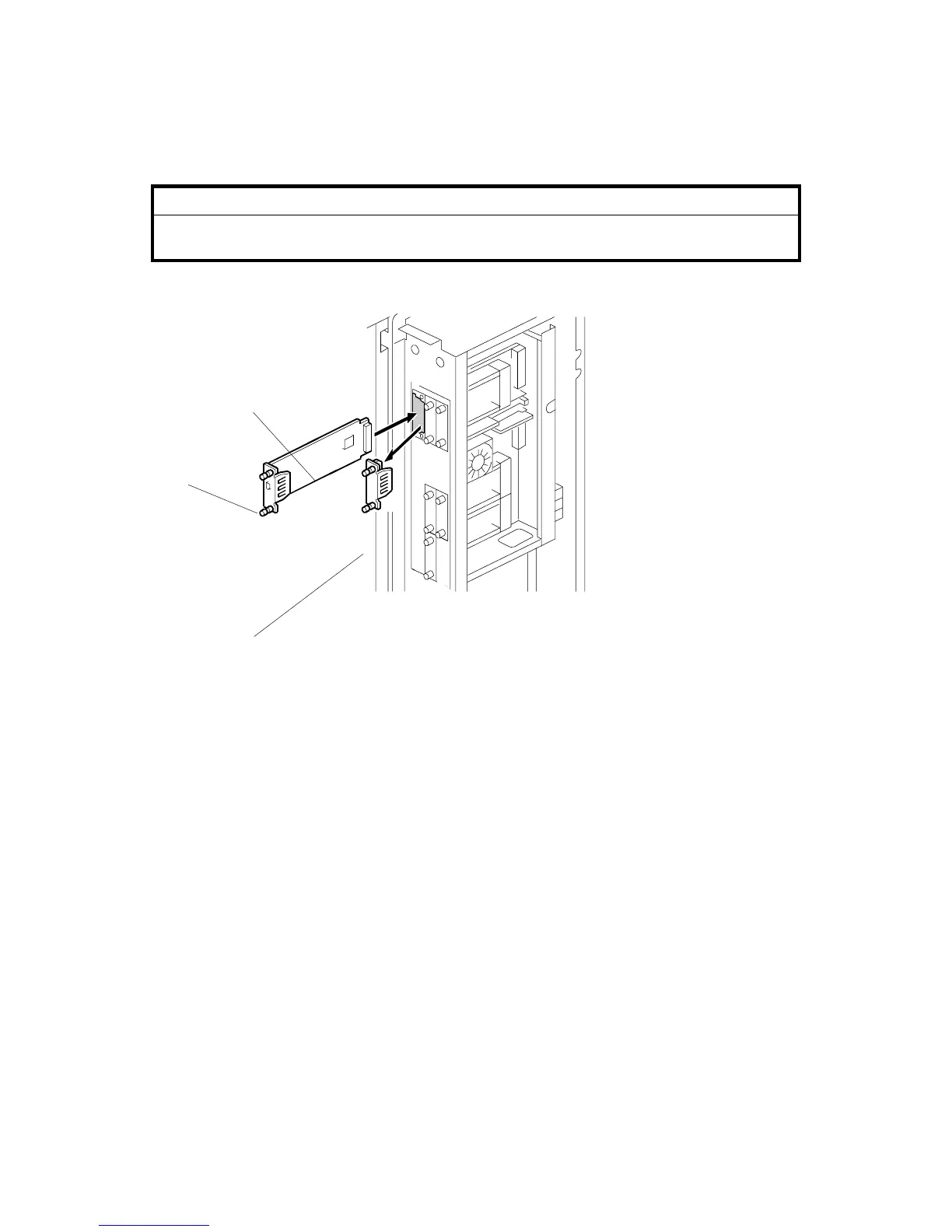

3. Remove the cover [A] from slot A1.
4. Align the PCB with the bottom groove, and push the connection PCB [B] into
the slot.
NOTE: Make sure that the edge of the PCB is in the groove before you push the
card into the machine.
5. Fasten the PCB with the attached screws [C].
B328I902.WMF
[A]
[B]
[C]
