REPLACEMENT AND ADJUSTMENT
SM 9 B832
LCIT
B832

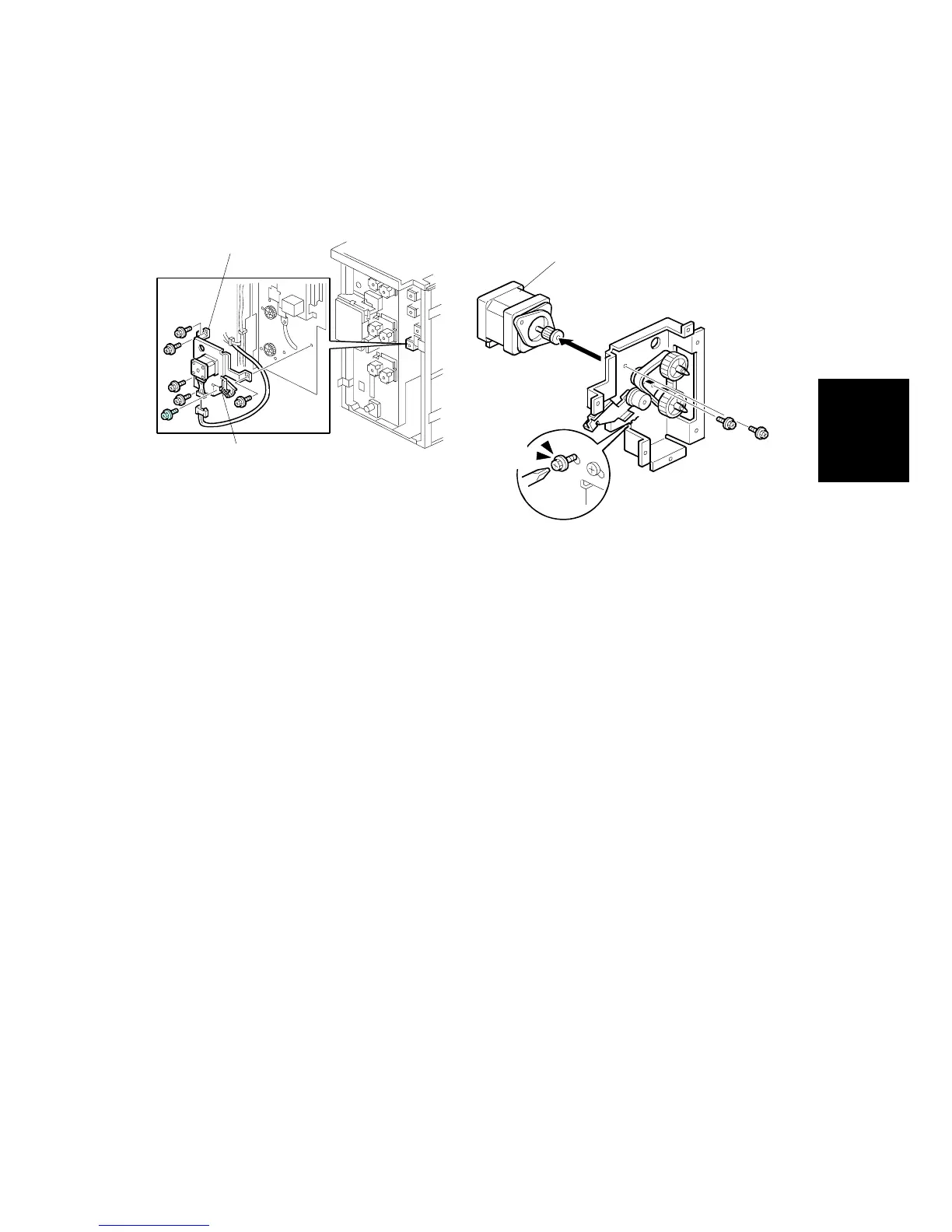

1.4.6 6TH TRANSPORT MOTOR
Remove:
• Rear cover. (1.1)
[A] Motor unit ( x6,  x 1).
[B] Spring (x1). First, loosen screw  ( x 1).
[C] LCT exit motor ( x2, Timing belt x1)
Reinstallation
• Be sure that the tension spring is connected, then tighten the screw .
B832R109I.WMF
B832R109J.WMF
[A]
[C]
[B]

