3.11.12 FUSING UNIT THERMOSTATS, THERMISTOR
• Fusing unit (3.11.1)
• Fusing unit front cover, rear cover (3.11.3)
Remove:

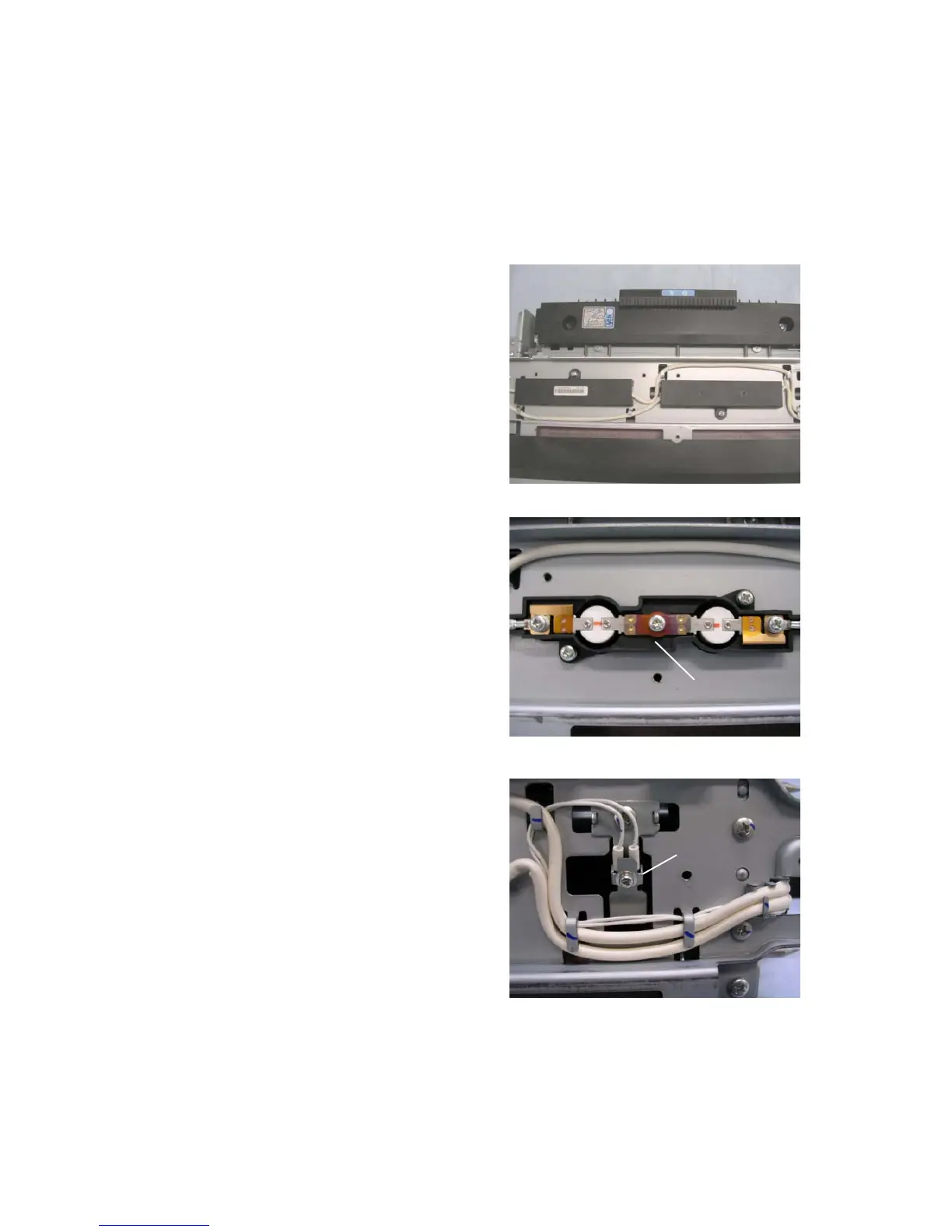

1. Remove thermostat covers [A] ( x1
ea.)
2. Remove thermostat unit [B] ( x3).
3. Remove thermistor [C] ( x1,  x1).
[A]
[B]
[C]
[A]
