ADF
B234/B235/B236/D101/D102/D103 6-22 SM
6.6.5 ORIGINAL FEED

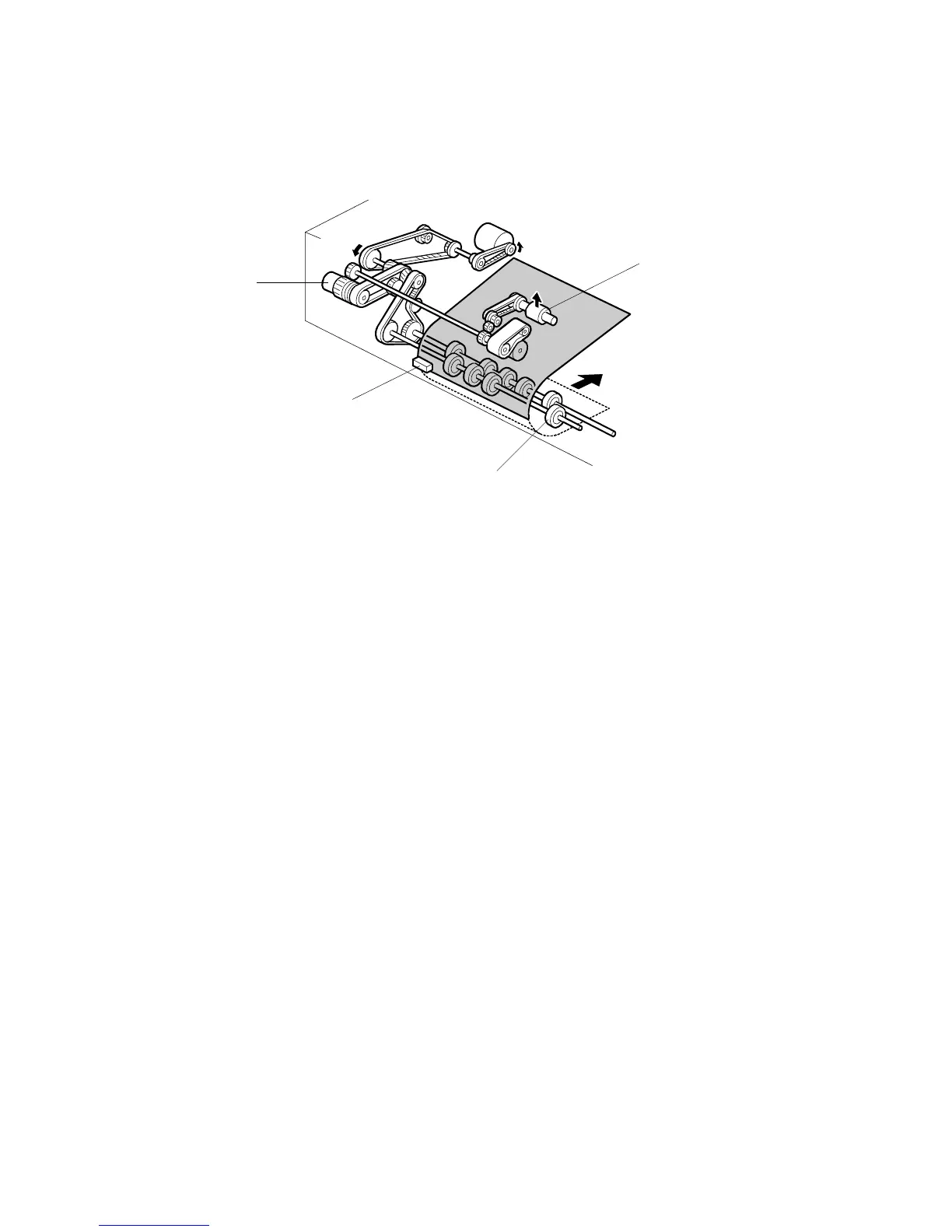

When the leading edge of the original turns the entrance sensor [A] on, the feed-in
clutch [B] turns off and the drive for the feed belt is released. The original is fed by
the transport rollers [C].
At the same time, the pick-up motor starts again and the pick-up roller [D] is lifted
up. When the pick-up roller HP sensor turns on, the pick-up motor stops (see Pick-
up Roller Release).
B234D918.WMF
[B]
[D]
[A]
[C]
