1.3.4 CONTROLLER BOX, PSU BOX REMOVAL
Remove the controller box and PSU box only if the machine is too large to pass
through a narrow door or passageway.
Controller Box Removal
1. Open the controller box [A] ( x 3 with washers).
2. Remove 1st connector cover [B] ( x2).
3. Remove 2nd connector cover [C] ( x2)
4. Disconnect [D], [E] ( x9)
5. Disconnect the ground wire [F] ( x1)
6. Remove the hinge covers (top, bottom [G] ( x2)
7. Remove the controller box [A]

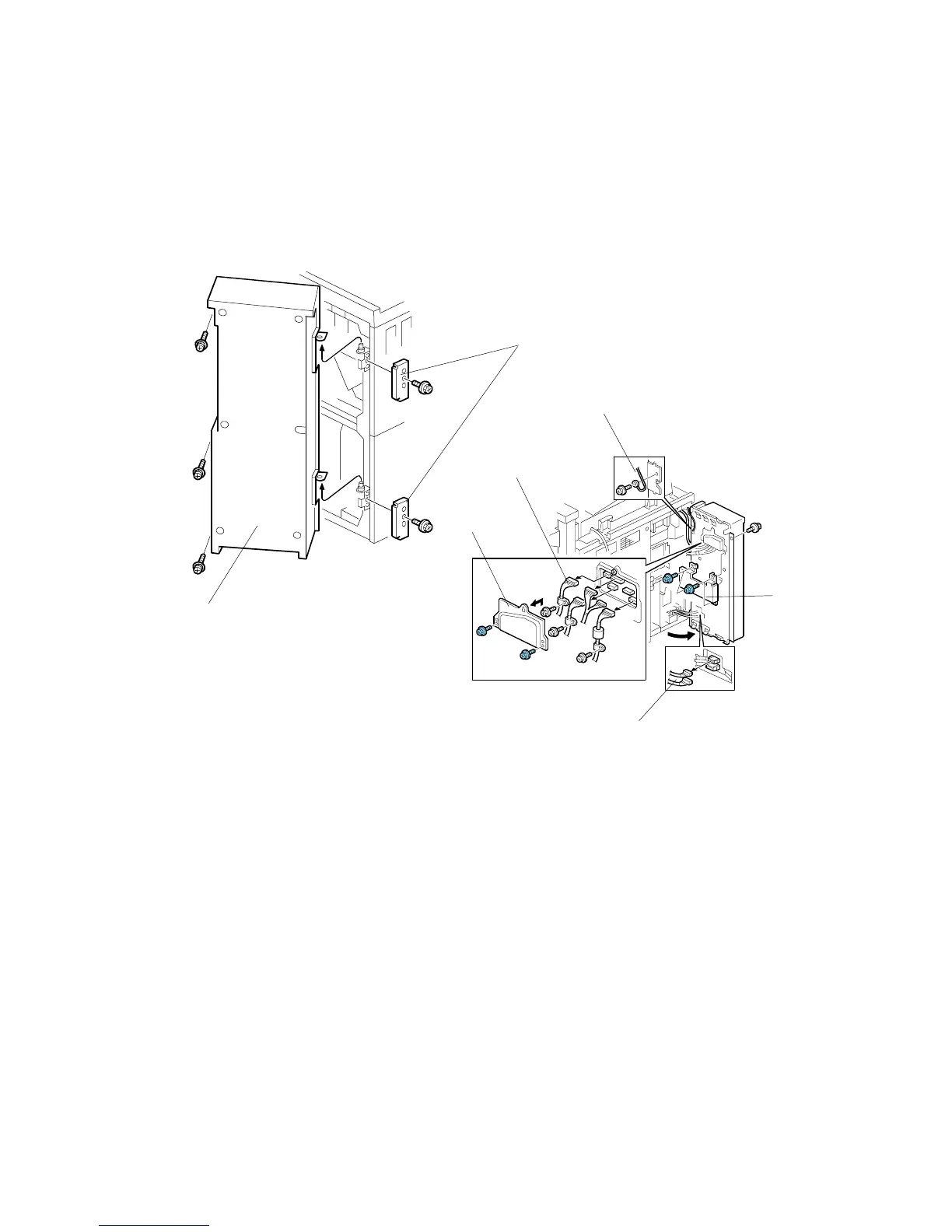

B234I904.WMFF
B234I905.WMFF
[A]
[G]
[B]
[C]
[D]
[E]
[F]
