PAPER FEED
SM 3-115 B234/B235/B236/D101/D102/D103
Replacement
Adjustment
Procedure 4
CIS Image Position Adjustment: Normal Paper
1. Push [User Tools]> [Adjust Settings for Operators].
2. Do SP1911 for Trays 1, 2, 3, duplex and set the value for each tray to "0" (OFF).
3. Exit from SP 1911 and return to the SP mode menu.
4. Adjust the image positions in the main scan direction (Tray 1, 2, 3).
• Do SP2902 003, select Pattern 27, then print the trimming pattern.
• Do SP1002 001, 002, 003 and 008 and adjust the image position in the
main scan direction for Trays 1, 2, 3, and duplex.
• Print the trimming pattern from each tray and duplex.
• To do this, touch "Copy Window" in the SP display, select a tray, then push
[Start].
• The distance of the test pattern line from the paper edge for each tray must
be 2 mm. If it is not 2 mm, adjust with SP1002 001, 002, 003 and 008,
depending on which tray is not within the specified 2 mm.
5. Adjust the image positions in the main scan direction (Duplex).
• Do SP2902 003, select Pattern 27, then print the trimming pattern.
• Do SP1002 008 and adjust the image position in the main scan direction
for duplex.
• Print the trimming pattern for duplex from Tray 1.
• To do this, touch "Copy Window" in the SP display, select a tray, then push
[Start].
• The distance of the test pattern line from the paper edge for each tray must
be 2 mm. If it is not 2 mm, adjust with SP1002 008, depending on which
tray is not within the specified 2 mm.
6. Print the duplex print from Tray 1 one more time.
7. Do SP1912 001 and 003 (CIS Image Position Adjustment:
Normal Paper). This sets the CIS for operation with
standard copy paper.
8. Exit the SP mode.
9. Push [User Tools]> [Adjust Settings for Operators].
10. Do SP1911 again (CIS Image Position Adjustment: Feed
Setting), and reset the values for Trays 1, 2, 3, duplex to
"1" (ON).

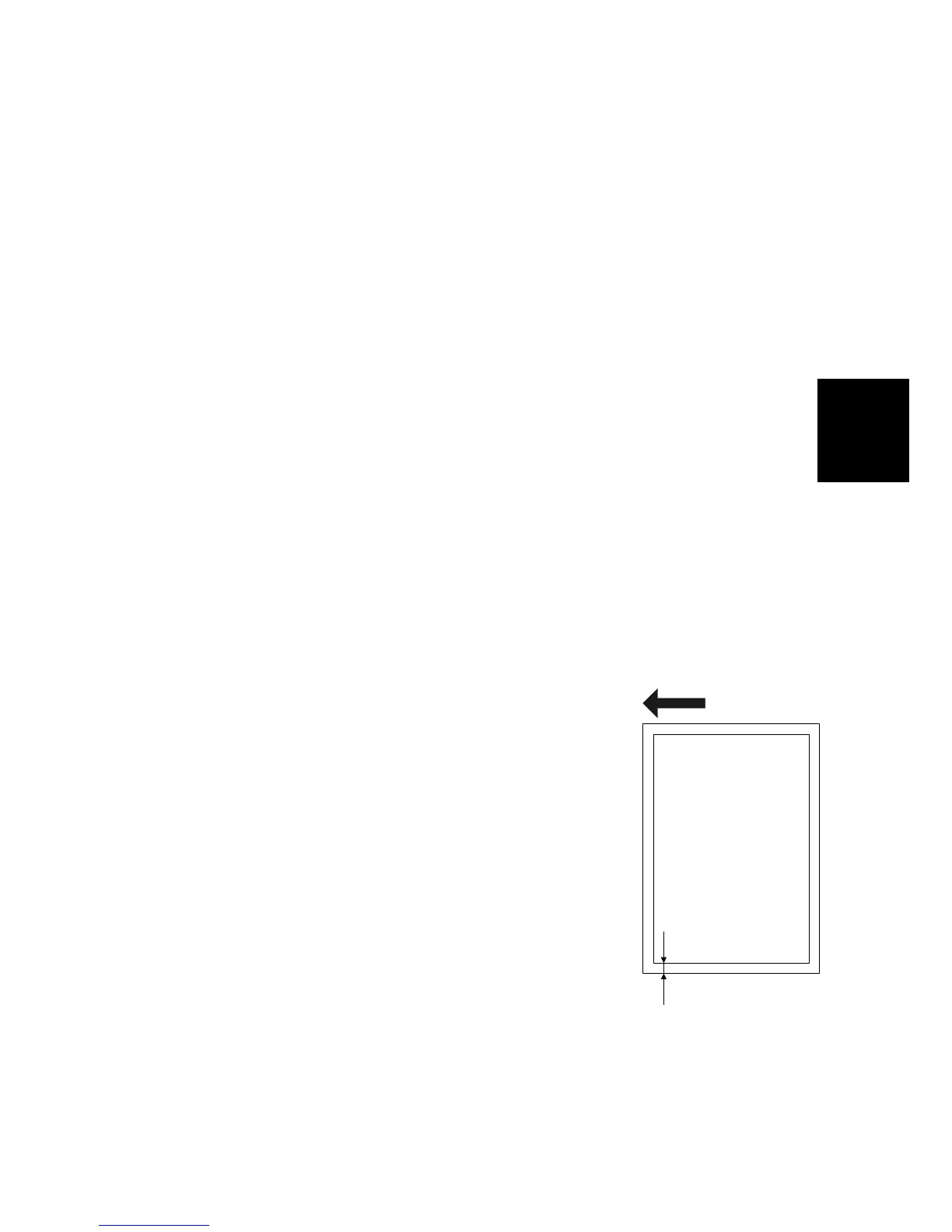

B234R992.WMF
2 mm
To Next Page
