Ricoh B234 - Registration - Side-To-Side

COPY IMAGE ADJUSTMENT: PRINTING/SCANNING
SM 3-185 B234/B235/B236/D101/D102/D103
Replacement
Adjustment
Registration – Side-to-Side
Do the parallel image adjustment after the side-to-side registration adjustment.
Using SP Mode
1. Check the side-to-side registration for each paper feed station using the
Trimming Area Pattern. Adjust them using the following SP modes if necessary.
For more details, refer to "Image Position Sensors" (3.10.18)
SP mode Specification
1st paper feed SP1002 001
2nd paper feed SP1002 002
3rd paper feed
(Optional PFU tray 1)
SP1002 003
SP1912 001
4th paper feed (LCT) SP1002 004
5th paper feed (LCT) SP1002 005
6th paper feed (LCT) SP1002 006
7th Tray (Bypass) SP1002 007
SP1912 002
Duplex SP1002 008 SP1912 003

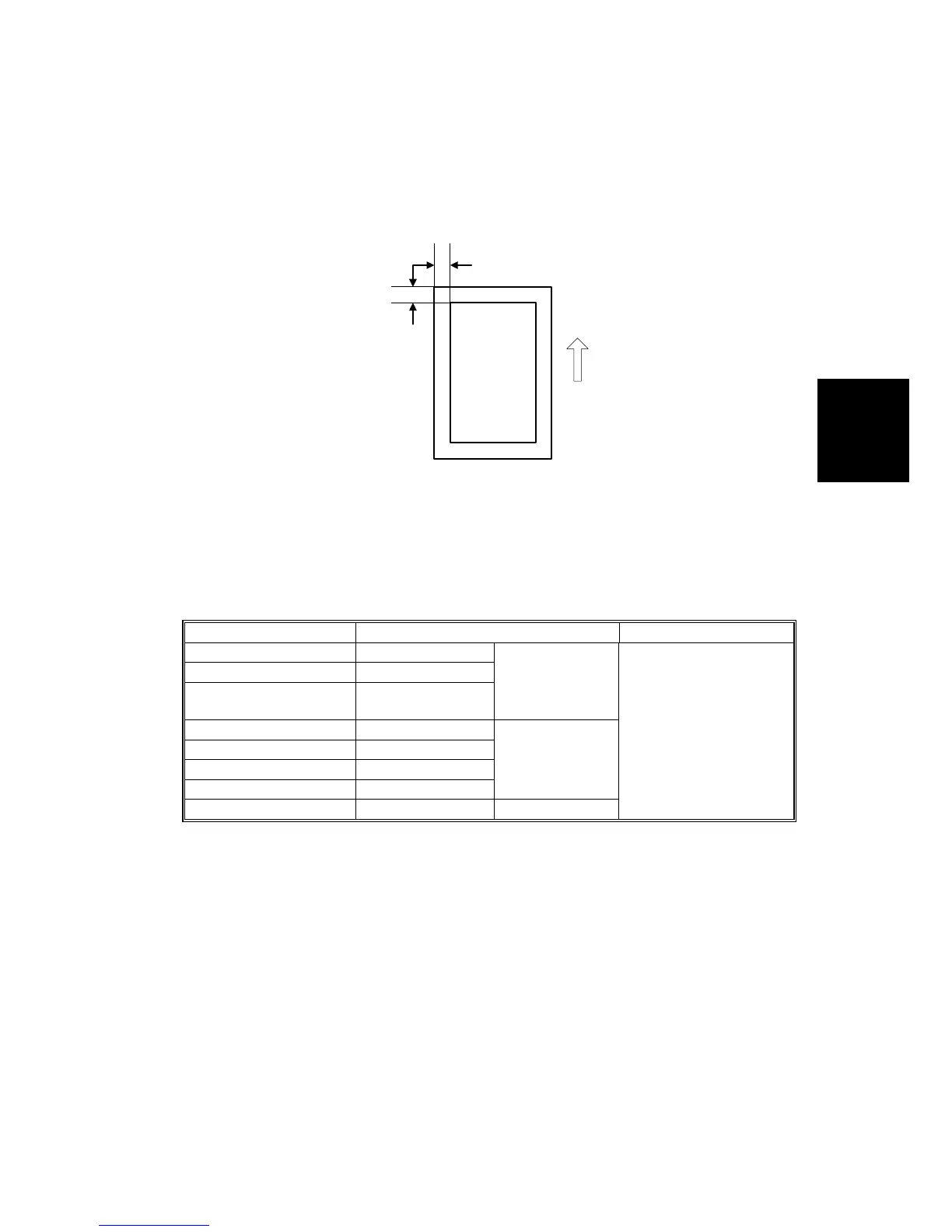

2 ± 1.5 mm
B
A
B070R633.WMF
A: Leading Edge Registration
B: Side-to-Side Registration
