PAPER FEED
SM 6-127 B234/B235/B236/D101/D102/D103
Detailed
Descriptions

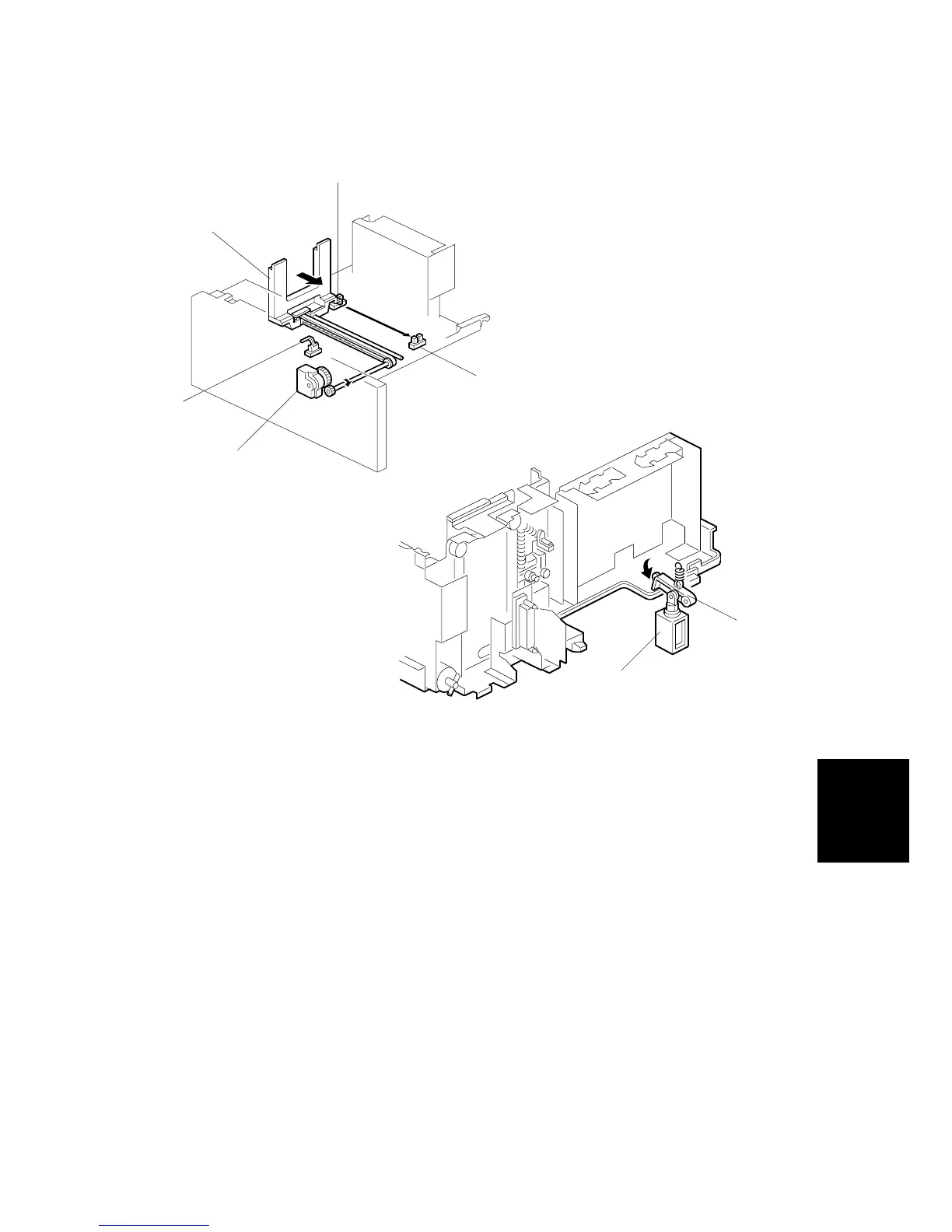

Rear Fence Drive
When the left 1st tray paper sensor [A] detects paper but the right 1st tray paper
sensor does not, the rear fence drive motor [B] (a DC motor) in the left tray turns
counter-clockwise causing the rear fence [C] to push the paper stack into the right
tray.
When the actuator on the rear fence activates the rear fence return sensor [D], the
rear fence drive motor turns clockwise until the actuator activates the rear fence HP
sensor [E].
While the rear fence is moving, the left 1st tray lock solenoid [F] turns on and the
lock lever [G] locks the left tray.
B234D969.WMF
B234D971.WMF
[E]
[A]
[D]
[C]
[B]
[G]
[F]
