ADF
B234/B235/B236/D101/D102/D103 6-20 SM

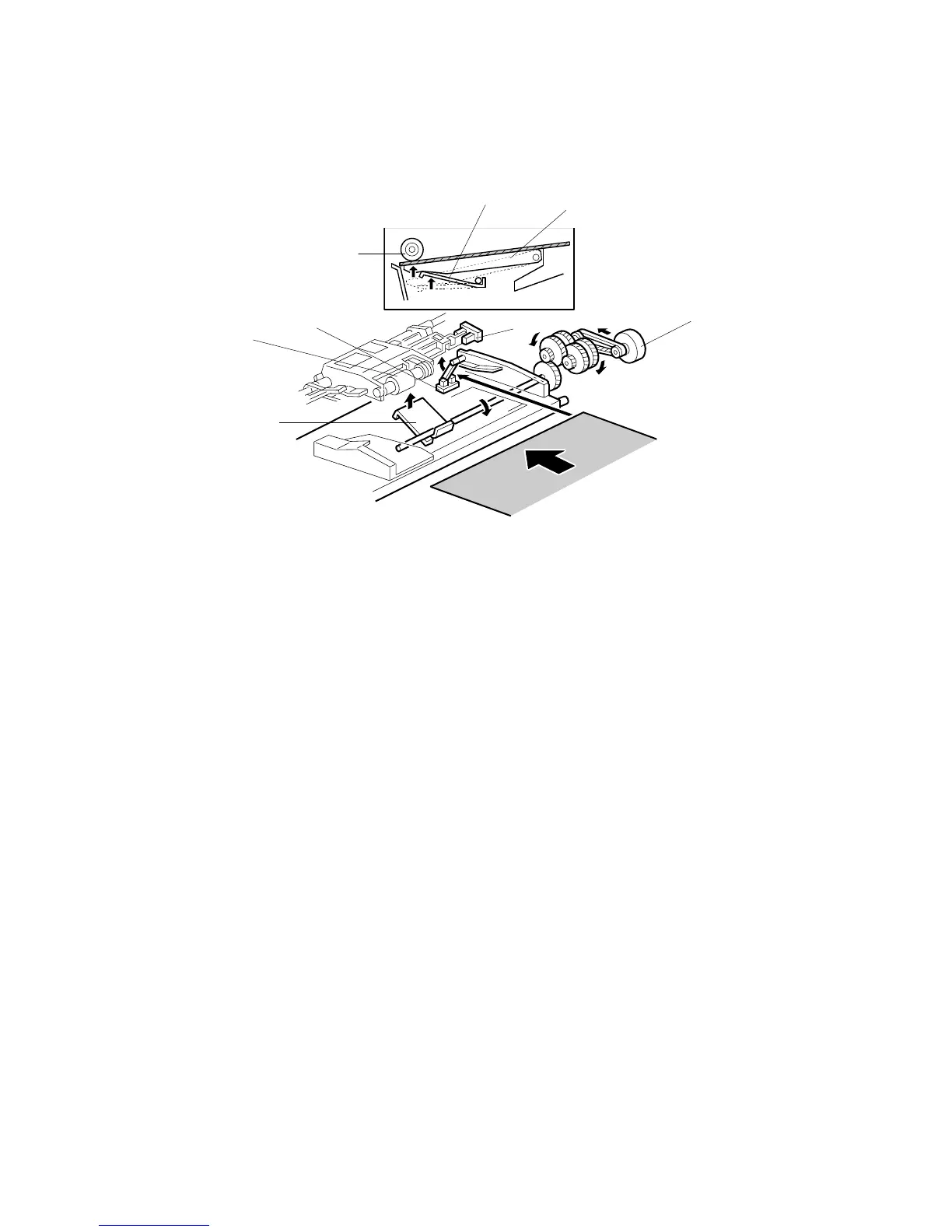

6.6.3 BOTTOM PLATE LIFT
When an original is placed on the original tray, the original set sensor [A] turns on,
the pick-up roller [B] drops on to the original, and the bottom plate position sensor
[C] turns off. Then the bottom plate motor [D] turns on and lifts the bottom plate [E]
by raising the lift lever [F] until the bottom plate position sensor turns on.
The level of the pick-up roller drops as the stack of originals becomes smaller, and
eventually, the bottom plate position sensor [C] turns off. Then, the bottom plate
motor turns on and lifts the bottom plate until the bottom plate position sensor turns
on. This keeps the original at the correct height for feeding.
B234D915.WMF
[F]
[D]
[F]
[A]
[B]
[C]
[E]
[B]
To Next Page
