Ricoh B234 - Reinstalling the Fusing Unit

FUSING UNIT
SM 3-123 B234/B235/B236/D101/D102/D103
Replacement
Adjustment
3.11.2 REINSTALLING THE FUSING UNIT
1. Raise lever D3.

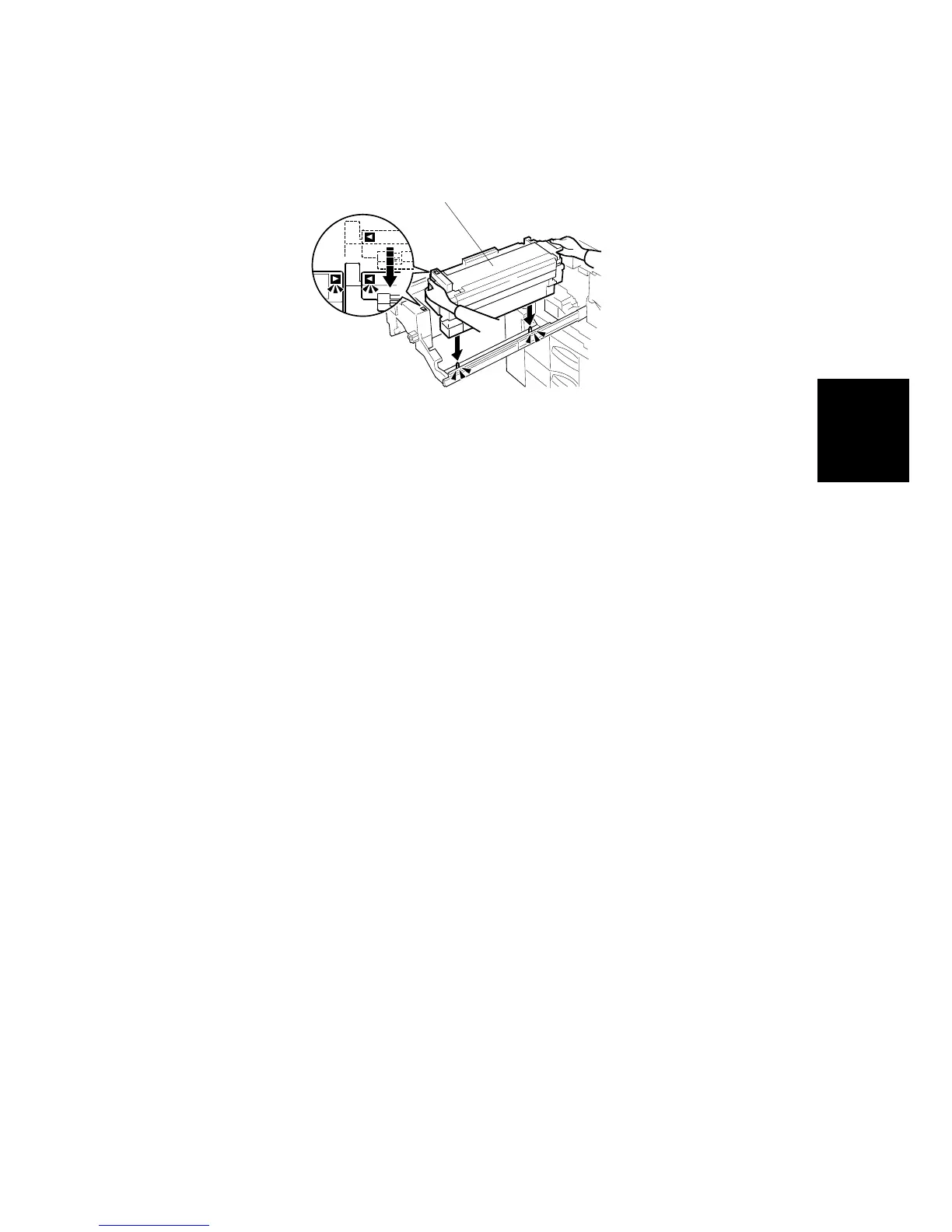

2. Hold the new fusing unit [A] so the triangular reference marks are aligned as
shown
3. Lower the new fusing unit onto the frame.
4. Make sure that holes of the fusing unit are properly mounted onto the pegs
below.
B234R898.WMFF
[A]
