Ricoh B234 - Internal Tape and Retainers: Fusing Unit

COPIER (B234/B235/B236/D101/D102/D103)
SM 1-17 B234/B235/B236/D101/D102/D103
Installation
Internal Tape and Retainers: Fusing Unit

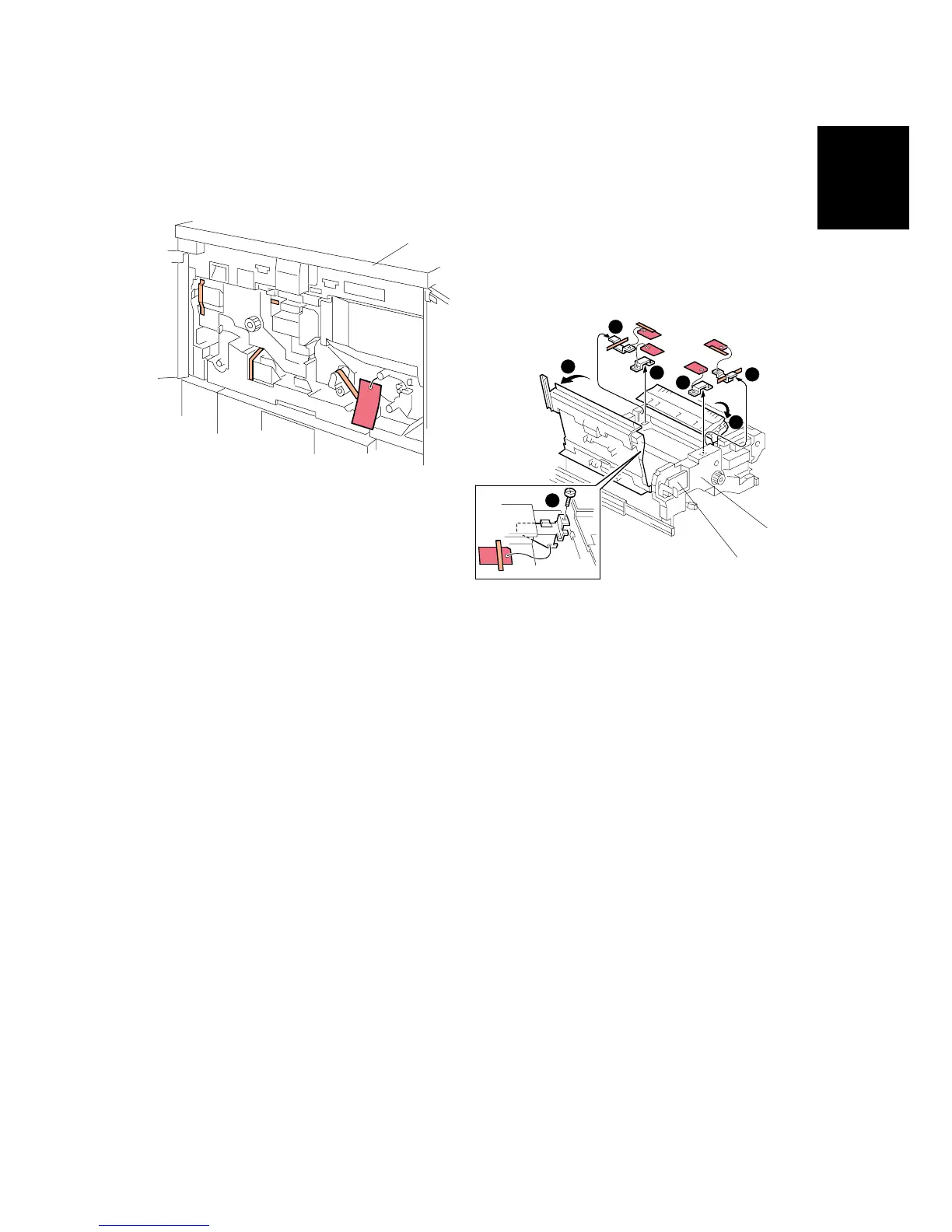

1. Open the front doors and remove all visible tape and retainers from inside the
machine [A].
2. Press down lever D2 [B], pull out the fusing unit [C], and remove all tape and
retainers from the fusing unit:
 Retainer ( x1)
 Raise D3.
 Remove retainer.
 Raise D4.
 Remove retainer.
3. Push in the fusing unit.
B234I002.WMF
1
2
3
3
4
5
5
B234I002A.WMF
[A]
[C]
[B]
