Ricoh B234 - Left Covers

COMMON PROCEDURES
3-12
3.3.5 LEFT COVERS
1. Disconnect the optional finisher, if it is installed.
2. If the optional finisher was installed:
• Remove the front joint bracket  ( x 2)
• Remove the and rear joint bracket  ( x 2.
3. Left upper cover [A] ( x 4)
4. Left lower cover [B] ( x 4).

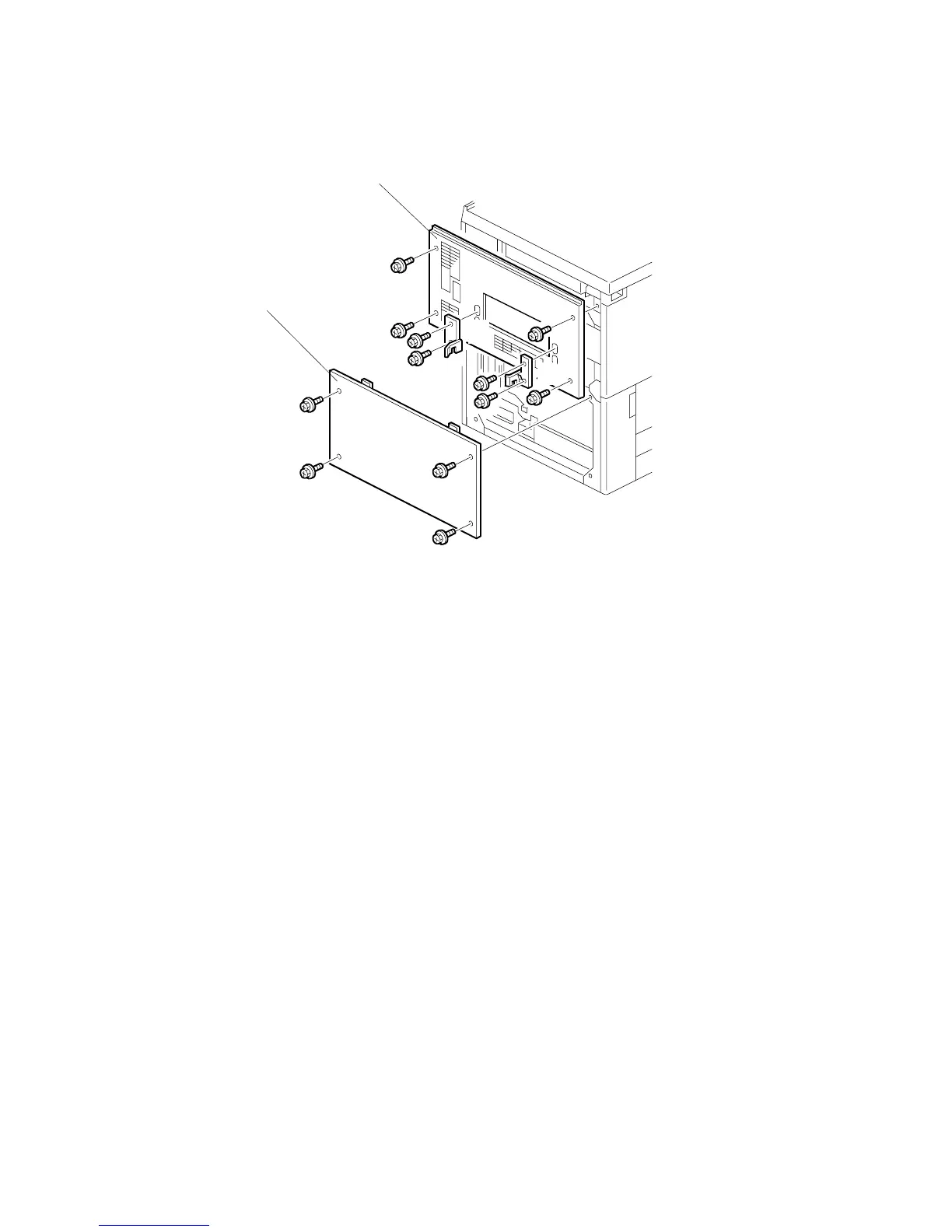

B234R910.WMF
[A]
[B]


