Ricoh B234 - Cleaning Unit Filters

Around the Drum
SM 3-61 B234/B235/B236/D101/D102/D103
Replacement
Adjustment
3.7.10 CLEANING UNIT FILTERS
• Cleaning unit. (3.7.1)
• 2nd cleaning blade ( x1) (3.7.9).

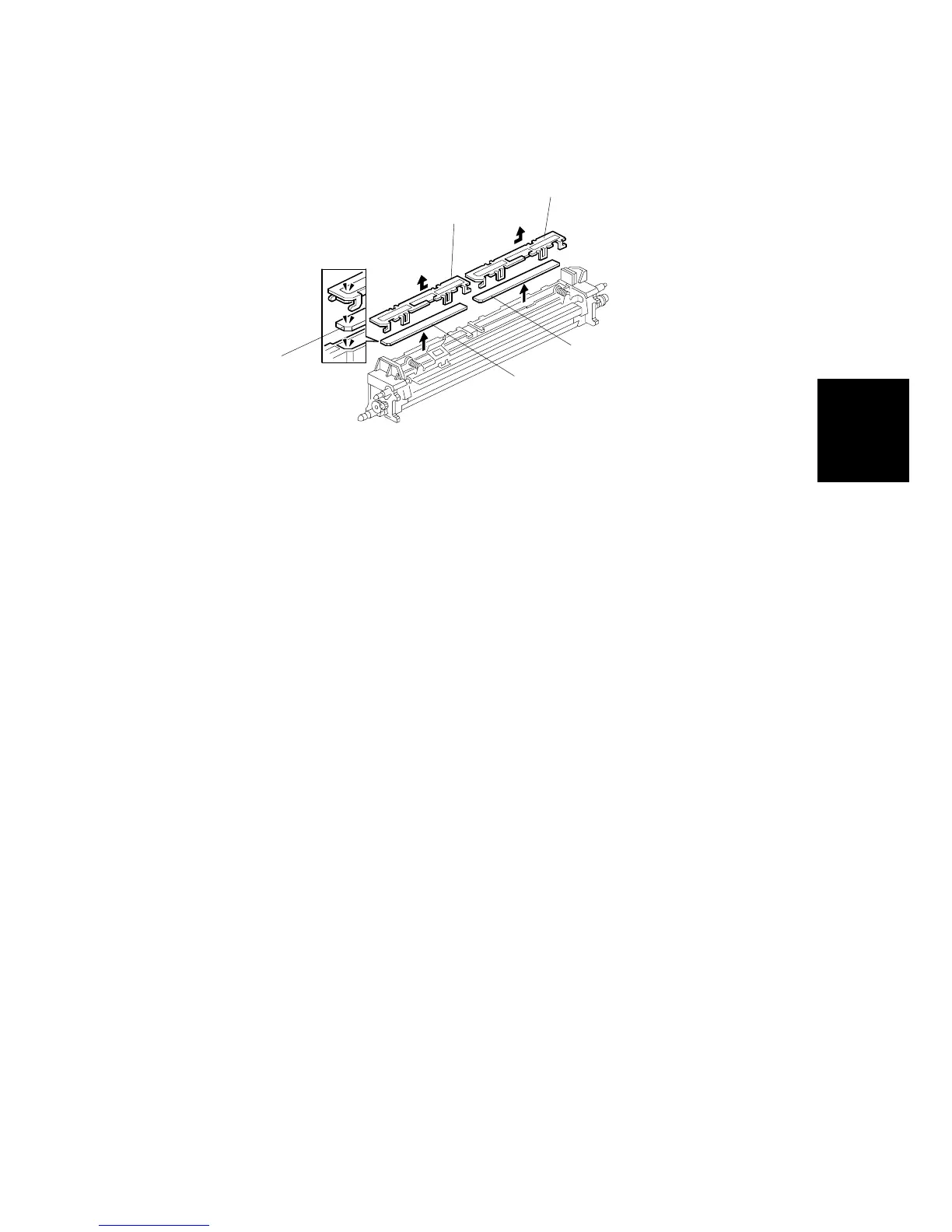

1. Front filter bracket [A] (Pawls x2)
2. Rear filter bracket [B] (Pawls x2)
3. Front filter [C]
4. Rear filter [D]
Important: When you install the new filters, confirm that the notched corners
[E] of the filters fit tightly to the beveled corners of the plastic below.
B234R213.WMF
[A]
[B]
[C]
[D]
[E]
